SOPREMA VersiJack C Assembly Manual

ASSEMBLY MANUAL
VersiJack® C & VersiJack® CF

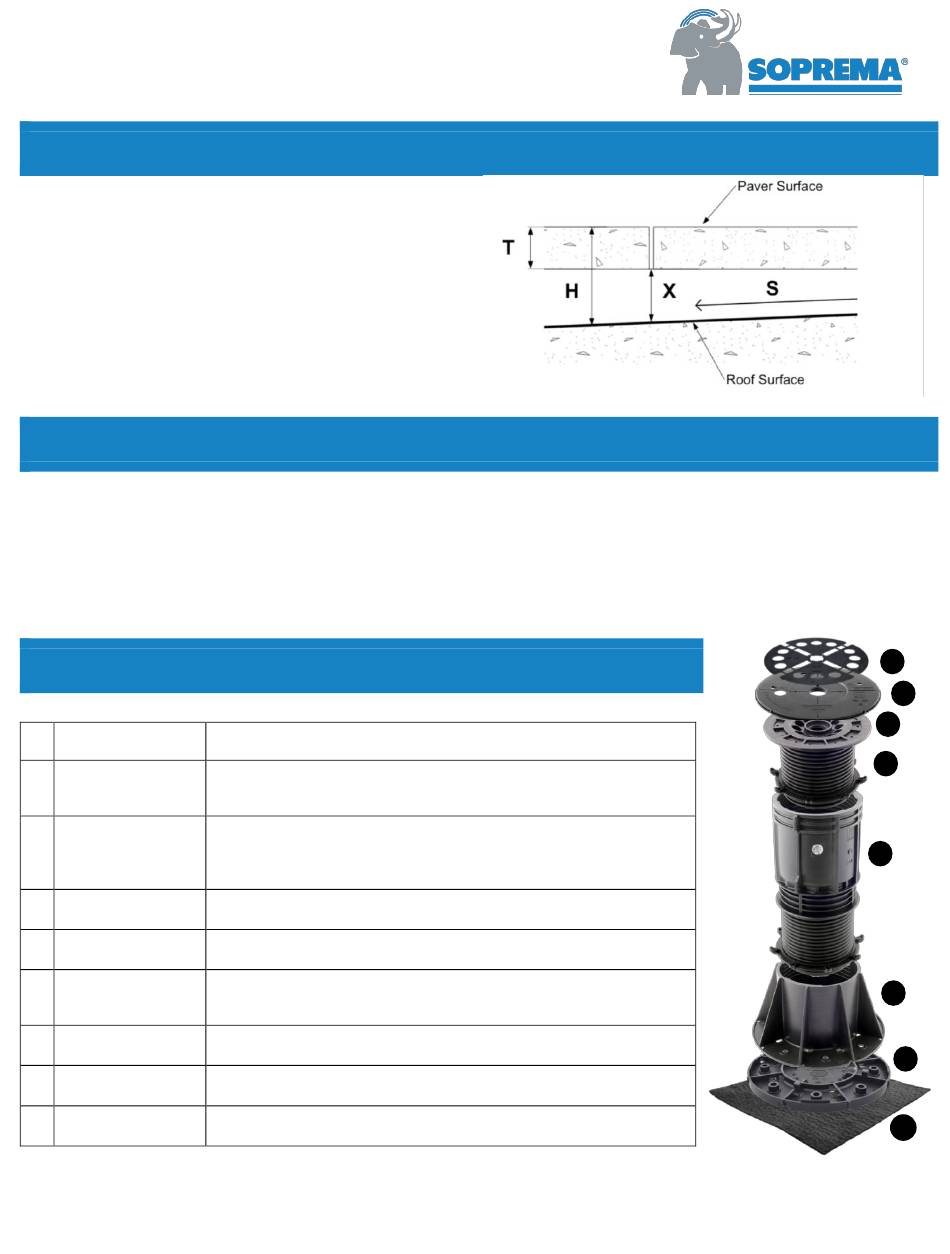

STEP 1:
Check the following jobsite conditions before starting your project.
H = Height from roof surface to paver surface
Note: This is the desired finished height.
T = Thickness of Paver
S = Need for Slope Correction
(0-10% slope)
X = Calculated Pedestal Height
Note: Conditions often vary within the same project zone, so
Step 1 should be carried out thoroughly.
STEP 2:
Use measurements from Step 1 to select your pedestal size: (H - T = X).
If not using slope correction, use H – T = X to identify Pedestal Height required. Then turn to Appendix B and use the
Pedestal Sizing Chart to select your pedestal for this location on the roof.
Example: Lloyd has H of 5" and T of 2.25". Using H – T = X, Lloyd calculates 5" – 2.25" = 2.75". So the correct
pedestal selection is CF2.
If using slope correction, please contact a sales rep for assistance in calculating your Pedestal Height.

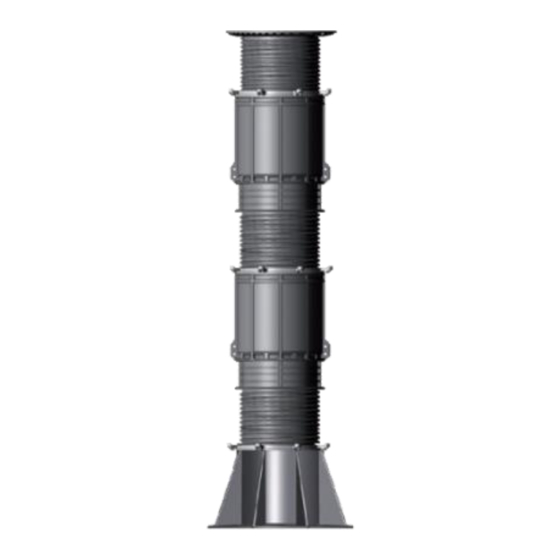

STEP 3:
Become Familiar With The Basic Pedestal Components.
Component
1
Shim
2
Top Slope Corrector
3
Pedestal Top
4
Locking Ring
5 X-245E Extender
6
Pedestal Base
7
Base Extender
8
Pedestal Base Pad
Function
Reduces or eliminates rocking of paver and reduces vibration/shifting
of paver. Available in 1mm or 2mm. Optional add-on.
Compensates for roof slope (up to 5% or more). Optional add-on. This
component adds approx 1/4" of height to the pedestal (varies with %
slope).
Provides the adjustable vertical rise.
Minimizes movement after final pedestal adjustment.
Added to CF4 or CF5 to achieve pedestal heights over 11". Optional
add-on.
Provides stability.
Added to any CF pedestal to add 3/8" height. Optional add-on.
Protects roof membrane and reduces vibration.
1
2
3
4
5
6
7
8
