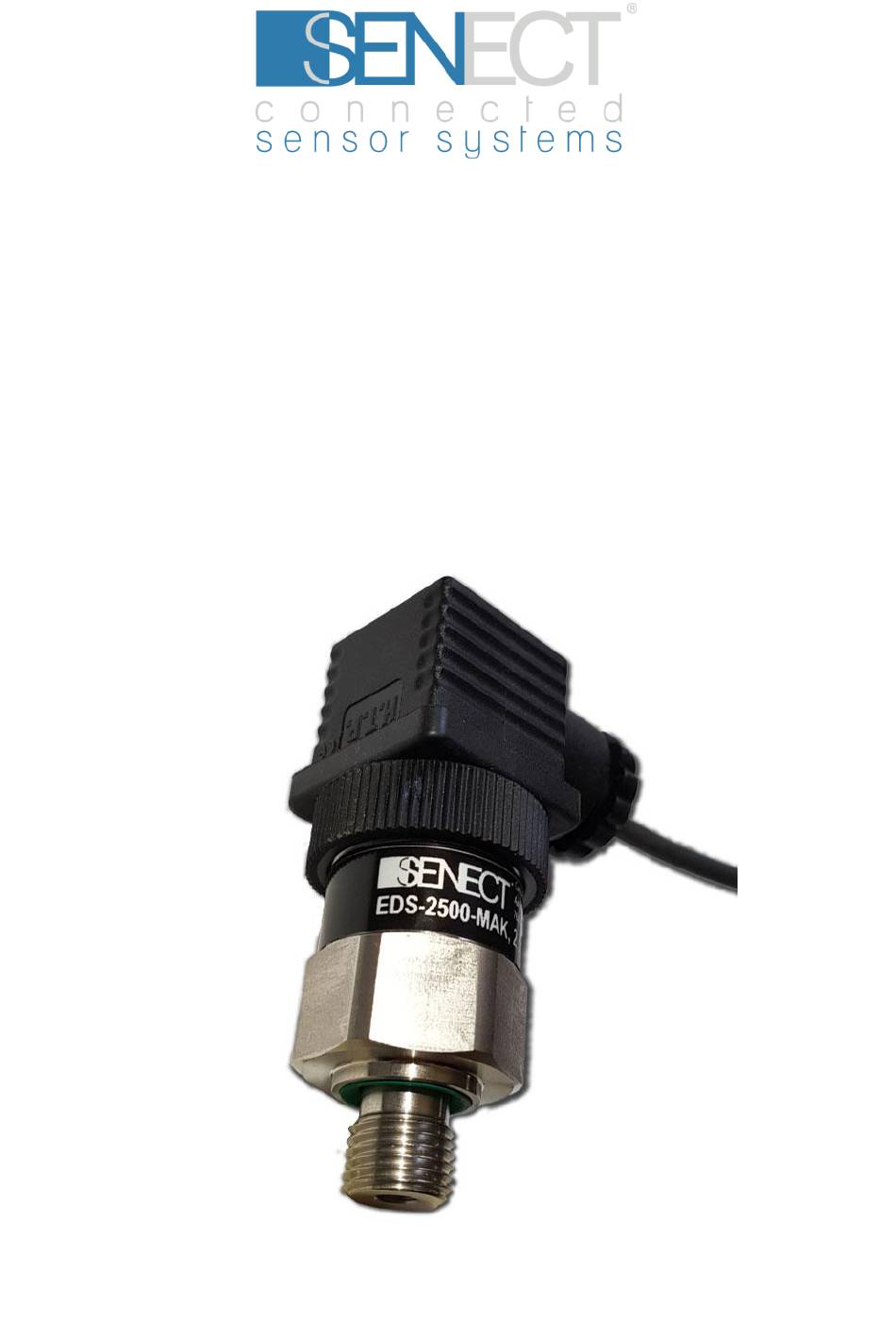

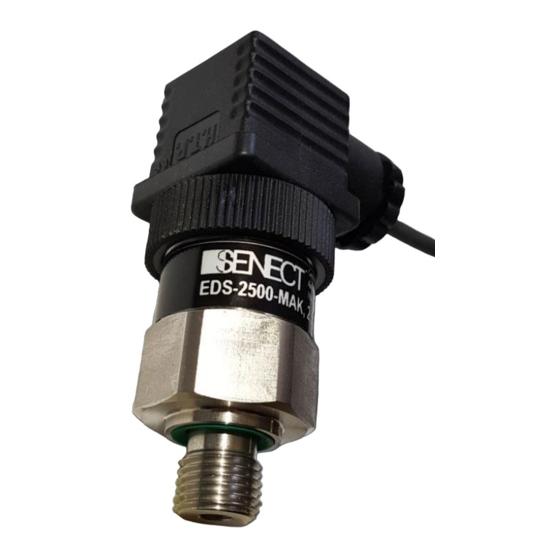

- Page 1 SENECT Pressure sensor Manual...
-
Page 2: Product Type
More information and latest software releases or documents can be downloaded from: www.senect.de Further information, application descriptions and answers to frequently asked questions can be also found on the SENECT Forum: http://forum.senect.de © SENECT GmbH & Co. KG – FW 00.90... -
Page 3: Table Of Contents
Table of contents Table of contents Product type .................. 2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intended use .................. 6 Getting started ................7 Scope of delivery ............... 7 Note ................... 7 Installation and start-up ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment NOTE! Further information for the use of the device! -
Page 5: General Security Notes
0°C and +40°C. The device must not be modified, except for extensions or software updates of SENECT®. It is forbidden to open the device or to penetrate the inside of the housing in any way. The pressure sensor EDS is not intended to be used by... -
Page 6: Intended Use
Intended use mental abilities or for lack of experience and/or knowledge, unless they are supervised or instructed by a person responsible for their safety on how to operate the device. Please keep these instructions for use as a reference. Technical and optical changes as well as printing errors reserved. -
Page 7: Getting Started
Getting started Getting started Scope of delivery o 1 x Pressure sensor EDS incl. connection cable o 1 x Manual Note Please make sure that the packaging was undamaged opened before commissioning and that all positions indicated in the scope of delivery are present. If you discover any defects, damage or the absence of items included in the scope of delivery, please report this immediately within 14 days. - Page 8 Connect the supplied connection cable to the sensor and your control unit at one of the sensor slots marked in blue. The SENECT control units automatically detect the sensor and start operation. Nevertheless, check in the menu under Sensors / Slot X / Sensor Type whether the sensor was recognized correctly (EDS-2500-MA).
- Page 9 2. Connect the cable to the sensor and control unit (slot "SENSOR"). 3. Select the correct sensor type under Sensors / Slot X / Sensor type (EDS-2500-MA). 4. Enter the measuring range of your sensor in mbar under Sensors / Slot X: EDS / Measuring range (e.g.
-
Page 10: Application Example
Application example Application example The pressure sensor EDS can be used to monitor the line pressure of the ventilation line (oxygen or compressed air). If there is a fault in this supply line (tank empty, generator defective, leakage), the EDS can trigger an alarm if the pressure falls below the set lower threshold value. - Page 11 Application example Make the following settings: Sensor / Slot X: EDS / Alarm Treshold / Lower Threshold: e.g. 1500 mbar Sensor / Slot X: EDS / Alarm Treshold/ Upper Threshold: e.g. 2000 mbar Sensor / Slot X: EDS / Alarm Treshold / Hysteresis: e.g.
-
Page 12: Maintenance And Cleaning
24 V DC Power consumption: << 1 W 0° to 40 °C (medium up to Temperature range: +125°C) Depending on model Overpressure: EDS-2500-MA: 7,5 bar JeDepending on model Measuring range: EDS-2500-MA: 2,5 bar Precision: < 0,5% FS Response time: < 3 s... - Page 13 Technical data...
-
Page 14: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510). -
Page 15: Guarantee
In case of any claims, contact us immediately per email or phone (info@senect.de or +49- 6341 - 95 95 210). Please describe your claim as detailed as possible so that we can provide a solution as fast as possible.
