Kubota AP-SC6072 Operator's Manual
  1. Manuals
  2. Brands
  3. Kubota Manuals
  4. Cutter
  5. AP-SC6072
  6. Operator's manual
Kubota AP-SC6072 Operator's Manual

Kubota AP-SC6072 Operator's Manual

Skid cutter
Hide thumbs

Advertisement

Quick Links

Download this manual

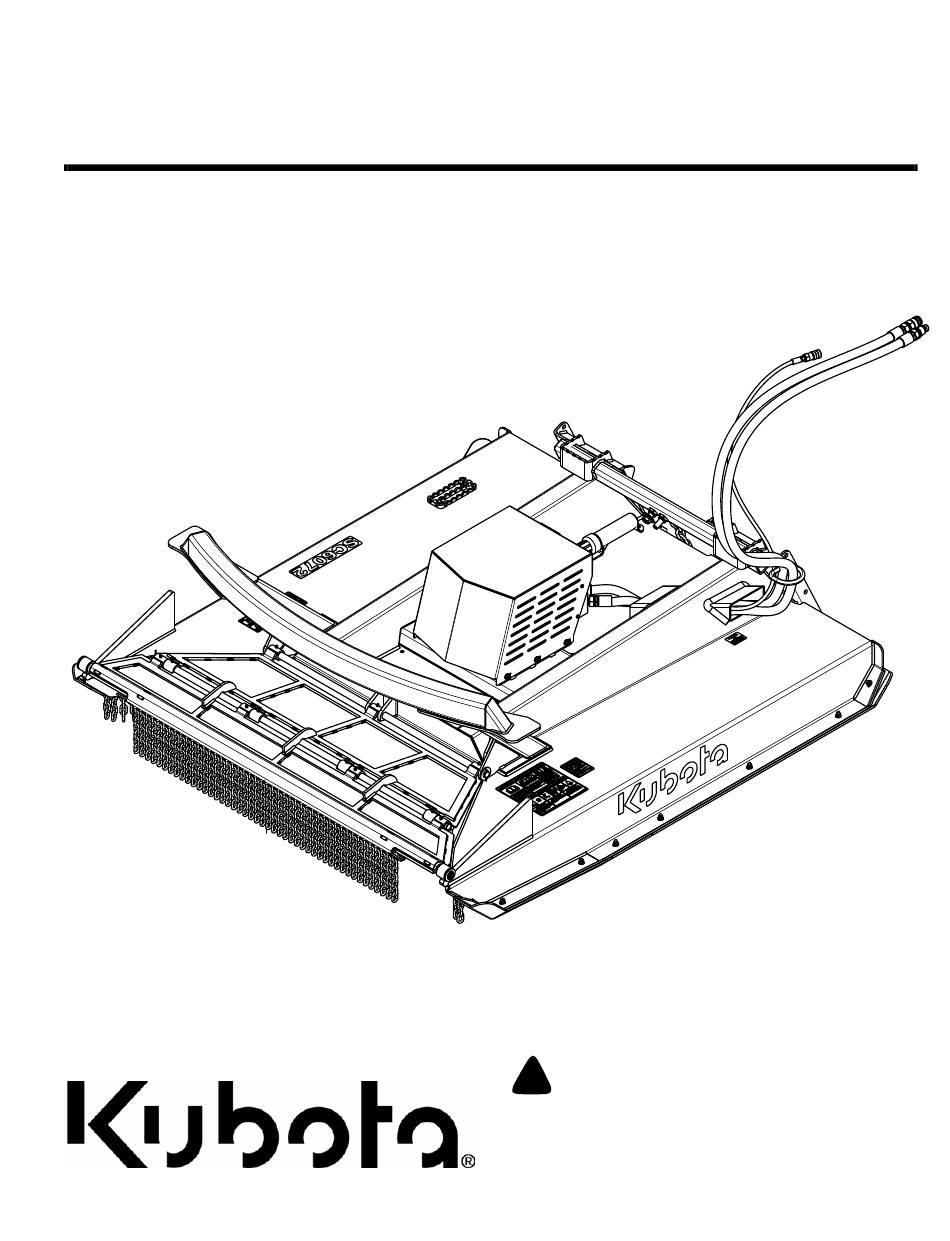

Skid Cutter
AP-SC6072
74795
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Kubota dealer.
327-321MK
Operator's Manual
Printed 4/6/21

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-SC6072 and is the answer not in the manual?

Questions and answers

Related Manuals for Kubota AP-SC6072

Summary of Contents for Kubota AP-SC6072

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Kubota dealer. Printed 4/6/21...
  • Page 2 Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 3 Copyright 2021 All rights Reserved Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right to revise and improve its products as it sees fit.
  • Page 4 Parts Manual for this link you to available dealers equipment. Download the appropriate for Kubota products. Refer to App on your smart phone, open the App, Parts Manual QR Locator on point your phone on the QR code and this page for detailed take a picture.
  • Page 5  Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.
  • Page 6  Lower attachment to the ground and  Replace parts on this attachment above recommended pressures follow all shutdown procedures with genuine Kubota parts only. Do shown in the Operator’s Manual. before leaving the operator’s seat to not alter this attachment in a way ...
  • Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Kubota recommends the use of a CAB or roll-over-protective-  Slow moving tractors, skid steers,  Never carry riders on skid steer structures (ROPS) and seat belt and self-propelled machines can or attachment.
  • Page 8 Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 4/6/21...
  • Page 10 Peel backing from label and press label firmly onto the all damaged or missing labels. Order new labels from your surface. nearest Kubota dealer. To find your nearest dealer, visit d. Squeeze out air bubbles with edge of a credit card or our dealer locator at www.landpride.com.
  • Page 11 Table of Contents Important Safety Information 74797 818-831C Warning: High Pressure Fluid Hazard 74797 818-555C Danger: Rotating Blade Hazard 74797 858-935C Warning: Rotating Blades 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 12 Table of Contents Important Safety Information ‘ 74797 858-843C Danger: Do Not Operate AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 13 Table of Contents Important Safety Information This page left blank intentionally. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 14 Table of Contents Introduction Introduction Definitions Kubota welcomes you to the growing family of new product owners. This Skid Cutter has been designed with care and built by skilled workers using quality materials. IMPORTANT: A special point of information related Proper assembly, maintenance, and safe operating to the following topic.
  • Page 15 Table of Contents Introduction Further Assistance Your Kubota dealer wants you to be satisfied with your new attachment. If for any reason you do not understand any part of this manual or are not satisfied with the service received, the following actions are suggested:...
  • Page 16 1. A polycarbonate door can be purchased from your “Polycarbonate nearest Kubota dealer. Refer to 2. Cut bands securing parts bags to the shipping crate. Protective Door (Option)” on page 24.
  • Page 17 Skid steer hitch plate Skid Cutter top angle bar. 6. Slowly rotate skid steer hitch plate back. Height Limiting Safety Chain (Kubota SVL Shown) Engage skid steer lock handles. Make sure the pins go through the bottom slots of the Skid Cutter’s hitch Figure 1-2 and the handles lock down.
  • Page 18 Height Limiting Safety Chain deck level and to prevent damage to skid steer arms. Chains are available through accessories. DANGER NOTE: When attaching the Skid Cutter to a Kubota To avoid serious injury or death: SVL machine, height limiting safety chain (#2) •...
  • Page 19 Refer to Figure 1-5: hand hold with two u-bolts (#3), flat bars (#2), and If attaching to a Kubota SVL75 machine, be sure to four nuts (#1) as shown. Tighten nuts to correct route hydraulic hoses through hose loop (#1) on the torque.
  • Page 20 3. Remove the motor shroud (#1) by pushing it toward the front of the unit then lifting it upward. 4. Remove 9/16" cap (#10) from adapter fitting (#9). 5. Attach the 9/16" end of hydraulic hose (#8) to adapter fitting (#9) and tighten. AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 21 5. Tilt hitch plate back until the deck looks parallel with the ground. 6. Slowly lower loader arms until deck is level and resting on the ground. Be sure to make any necessary corrections to the hydraulic hoses before putting cutter into service. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 22 Mark non-removable • Make sure controls are all in neutral position or park before hazards such as tree stumps, post stubs, protruding objects, starting the power machine. rocks, drop-offs, holes, etc. with a visible flag. AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 23 • Engage skid steer park brake and remove ignition switch key once it is loaded. • Secure skid steer loader and attachment using tie- downs and chains. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 24 Operating in above fashion will cause damage to the deck & hitch. 6. This cutter was designed to cut brush and small trees on gently sloping or slightly contoured right-of-ways, pastures, set aside acres, and row crop fields. AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 25 & reverse. Deck open Never swing deck side to side without first raising the deck off the ground and high enough to clear all obstacles. Deck not open Deck not open Cutting Operation Figure 3-2 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 26 It is absolutely essential that you read and understand readily accessible attaching point for the Skid Cutter both the Operator’s Manual for your Kubota Skid Cutter height limiting safety chain on the lower front portion of and the Operator’s Manual for the skid steer unit you the chassis frame.
  • Page 27 With a little practice we are confident you will soon allowed to come in contact with objects such as wire, achieve safe and excellent results with your new Kubota cable, rope, or chains that might become entangled. SC6072 Skid Cutter.
  • Page 28 Assembly (Optional)” on page 15 for additional information. The owner may choose to use a polycarbonate protective door provided by their skid steer supplier. Kubota offers a Operator Protective Door Kit #S6686 which can be used with the Kubota SVL. See your nearest Kubota dealer if purchasing this kit.
  • Page 29 The parts on your cutter have been specially designed injury must treat the injury within a few hours or gangrene and should only be replaced with genuine Kubota parts. may result. DO NOT DELAY. Do not alter the cutter in a way which will adversely affect its performance.
  • Page 30 8. Fasten with lock washer (#6) and 5/8" hex nut (#5). 8. Torque 1 1/8" hex nuts (#1) to 450 ft. lbs. 9. Tighten nuts to correct torque. 9. Refer to Figure 5-1: Replace deck access cover. AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 31 Part No. Part Description less than 1/8" at any point or if other damage is evident. Order only genuine Kubota parts from your local Kubota 1 326-979H SKID SHOE REAR LH dealer. 1 326-978H SKID SHOE REAR RH 2 802-466C PLOW 3/8"-16X1 1/4"...
  • Page 32 4. Repaint parts where paint is worn or scratched to prevent rust. Touch-Up Paint Part No. Part Description 821-070C Gloss black enamel spray can 821-070CTU Gloss black enamel bottle with brush 821-070CQT Gloss black enamel quart 821-070CGL Gloss black enamel gallon AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 33 4. Remove plug (#1A). 5. Add EP 80-90 weight gearlube as required. Full capacity of gearbox is approximately 20 oz. 6. Re-install plug and tighten. Gearbox Lubrication Remove magnetic plug (#1B). Check for metal filings and clean annually. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 34 Single row chain guard Deck lift height protection Height limiting safety chain Mulching teeth in (mm) 3/4 (19) SQ carbide Optional protective door material & Clear polycarbonate shield lbs (kg) assembly weight 10 lbs (4.5) AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 35 Table of Contents Section 6: Specifications & Capacities 84" (2.1 m) 92" (2.3 m) 30" (76.2 cm) 74812 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 36 Heavy deck design holds up to harsh conditions. Heavy blade carrier Provides inertia & strength for cutting trees and grinding stumps. Surpassed rugged industry All Kubota Cutters have been designed and tested to meet rigorous voluntary testing standards procedures according to ISO 4254-13. Polycarbonate door (optional) Provides layer of protection between the cutter and operator.
  • Page 37 Soil abrasive. Raise cutting height. Cutting too low. Raise cutting height. Locked blades. Inspect and unlock blades. Excessive vibration Blades have unequal weight. Replace blades in sets of 4. Blade carrier bent. Replace blade carrier. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 38 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Additional Torque Values Blade Bolt Locknut 450 ft-lbs Blade Carrier Hub Bolts 150 ft-lbs (apply blue loctite) Carbide Tooth Nut 110 ft-lbs AP-SC6072 Skid Cutter 327-321MK 4/6/21...
  • Page 39 IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of purchase. This information is necessary to provide you with quality customer service. Model Number ____________________ Serial Number ____________________ 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 40 Kubota used reasonable efforts to set forth and include accurate and up to date information in this publication. Kubota disclaims all representations and warranties, whether express or implied, including, but not limited to, warranties of merchantability...
  • Page 41 Table of Contents Section 10: Legal Disclaimer & Warranty This page left blank intentionally. 4/6/21 AP-SC6072 Skid Cutter 327-321MK...
  • Page 42 31700 W. 207th ST., Edgerton, KS 66021 Telephone: (913) 215-5915 Central Division: 14855 FAA Blvd., Fort Worth, TX 76155 Telephone: (817) 571-0900 Northern Division: 6300 at One Kubota Way, Groveport, OH 43125 Telephone: (614) 835-1100 Southeast Division: 1025 Northbrook Parkway, Suwanee, GA 30024 Telephone: (770) 995-8855...
