- Page 1 GPA 3000 Ground Penetrating Analyzer KTS-Electronic GmbH & Co. KG Germany...
-
Page 2: Table Of Contents
System requirements ................... 18 License agreements ..................18 Terms of use....................18 Exclusion of liability ..................18 Warranty ......................19 After expiration date ..................19 Care ......................19 Legal note ....................19 Contact ......................20 KTS-Electronic GmbH & Co. KG – GPA 3000... -
Page 3: General Guidelines
The GPA 3000 is the new development of KTS-Electronic GmbH & Co. KG. Our professional 3D ground scanner is equipped with the most powerful sensors. The GPA 3000 set includes the new 1 meter super probe, in which different sensors are built-in. These sensors are selected by pressing the search depth button. Without the need for an exchange of probes the search power can be chosen in a range of 10 m to 25 m. -
Page 4: Scope Of Delivery
1.3 Scope of delivery Hardware: GPA 3000 electronic unit with Bluetooth® incl. installed li-ion battery Universal probe 60 cm (23.62") incl. bag Super probe 1 m (39") incl. bag Carbon telescope bar with bag Tablet computer with KTS software, li-ion battery and bag ... -
Page 5: Hardware Operation
Afterwards the sensor cable must be connected to the electronic unit. Now your device is ready for use. GPA 3000 Universal probe 60 cm with carbon telescope bar and electronic unit With an allen key the rod is fastened to the electronic unit. - Page 6 Mounted GPA 3000 with carbon rod, cable and cable connection to electronic unit. Hold the probe so that the arrows (attached laterally) point to the ground during search. The arrow on top should point to running direction. This way you will attain the highest search performance.
- Page 7 ... and connect it to the electronic unit by using an allen key. Hold the super probe in the same manner as the universal probe, i.e. the arrows must point towards the ground. KTS-Electronic GmbH & Co. KG - GPA 3000...
-
Page 8: Electronic Unit

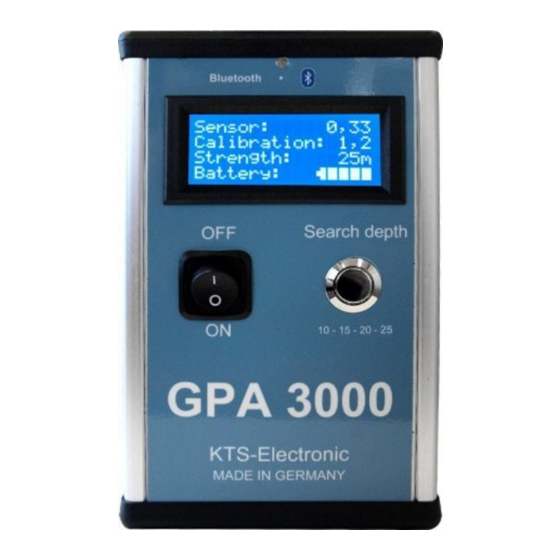

2.3 Start of electronic The Bluetooth®-connection allows a fast and save transfer of measured data from GPA 3000 to the tablet computer – contrary to other devices, which record data via parallel interface. KTS-Electronic GmbH & Co. KG - GPA 3000... - Page 9 With the push button beneath “Search depth” the desired search performance is determined and a switch between the different sensors is made possible. The chosen search depth will be displayed in the row “Strength” (10, 15, 20 or 25 meters). KTS-Electronic GmbH & Co. KG - GPA 3000...
-
Page 10: Android Software
3 Android software There is a tablet computer included in the GPA 3000-set for two-dimensional and three-dimensional evaluation of your measurements which connects wirelessly via Bluetooth with the electronic unit. 3.1 - Tablet computer incl. mount 3.1 Commissioning of tablet computer ... -
Page 11: Bluetooth-Connection
DEVICES” (several times if necessary) and select it. A confirmation pop up with :”CONNECTED” will appear on the tablet computer. A blue dot will appear on the screen of the electronic unit. 3.2 - Successful Bluetooth connection KTS-Electronic GmbH & Co. KG - GPA 3000... -
Page 12: Kts Gpa 3D- Software
The measurement can be deleted with the “RESET”- button. Hint: The Bluetooth pairing has failed if there is no “START”- button on the lower part of the screen . (see 4.2) KTS-Electronic GmbH & Co. KG - GPA 3000... -
Page 13: Evaluation With Kts Gpa 3D
Tap “LOAD” for loading a previously saved measurement. The 3D- image can be moved with one finger and rotated/zoomed with two finger (see following figures). 3.5 - 3D evaluation of measurements KTS-Electronic GmbH & Co. KG - GPA 3000... - Page 14 Tap on a file to display the options : “open file”, “rename file”, “delete file” and “show file in 3D”. To delete all files tap the button “DELETE ALL FILES” on the lower left part of the screen. KTS-Electronic GmbH & Co. KG - GPA 3000...
-
Page 15: Settings For Kts Gpa 3D
“Developer Settings”: Please do not change the developer settings except for “Measure-delay”. Here you can change the time between two measurements. Please note that this option will effect the speed options “SLOW”, “NORMAL” and “FAST” under “MEASURE”. 3.9 - Settings KTS-Electronic GmbH & Co. KG - GPA 3000... -
Page 16: Search Process
control of sensor value. Verify that the indicated value is between 2 to 3. Should this not be the case, change the search direction slightly so that above value is displayed. KTS-Electronic GmbH & Co. KG - GPA 3000... -
Page 17: Rechargeable Battery And Charger
After each charging the connecting cable for the battery charger should be removed. A provided voltage transformer enables charging in the car. KTS-Electronic GmbH & Co. KG - GPA 3000... -
Page 18: System Requirements And License Agreements
5.2 License agreements The KTS 3D program as well as the entire accompanied electronic or printed documentation is subject to the copyright of KTS-Electronic GmbH & Co. KG. Should parts of the present license regulations feature alterations or expansions in comparison to former program versions, they will also apply to prior versions. -
Page 19: Warranty
Defective parts will be repaired gratuitous or will be replaced by efficient parts of our choice. KTS-Electronic GmbH & Co. KG reserves the right to exchange a device by an equal valued replacement unit in case the returned product cannot be required in an appropriate budget time frame. -
Page 20: Contact
9:00 am to 4:30 pm Fridays: 9:00 am to 4:00 pm Copyright: KTS-Electronic GmbH & Co. KG, Moerfelden-Walldorf, Germany, 2017 A duplication or usage of graphics and/or text of this publication is not allowed without explicit consent. KTS-Electronic GmbH & Co. KG - GPA 3000...
