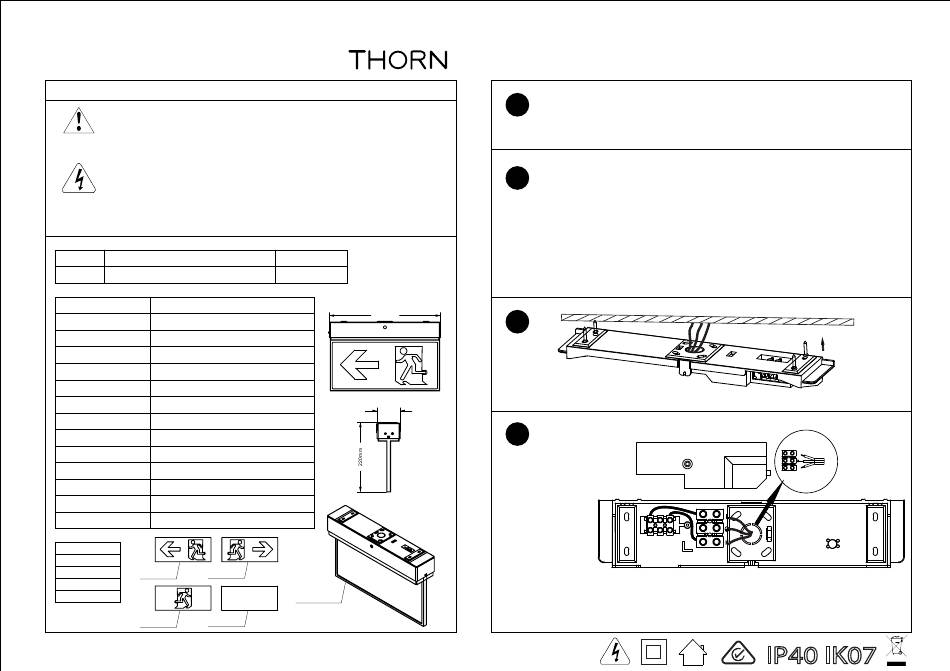

Thorn VOYAGER BLADE SURFACE 24M E2M Installation Instructions

VOYAGER BLADE SURFACE
EN Installation Instructions
1.Installation to be carried out by a qualified electrician in accordance with local wiring regulations. Ensure that the
rated voltage and frequency of the luminaire are compatible with the electrical supply.
2.Disconnect mains supply before installing, servicing or maintaining the luminaire.
3.The manufacturer, shall not be liable for any damage resulting from inappropriate modifications to the luminaire or
faulty installation.
4.The light source contained in this luminaire shall only be replaced by the manufcturer or their serice agent or a
similar qualified person.
5.The light source can't be replaced. The control gear provides basic insulation between the LV supply and the
control circuit.
6.Specification: These luminaires are designed to comply with the requirements of AS/NZS 60598 and AS/NZS 2293.
SAP code Product Description
96294579 VOYAGER BLADE SURFACE 24M E2M
Length*Width*Height 350*73*220
Power consumption 3W
Input Voltage 220-240V AC, 50/60Hz
Battery Lithium-iron phosphate (LiFePO4)
Charging time 16 hours
Autonomy 3 hours
Temperature 0°C to 40°C
Operating mode Maintained with manual test switch
Viewing distance 24m (for single or double sided viewing)
Spacing classification C0=D8, C90=D4
Ingress protection IP40
Material/finish Polycarbonate
Mounting Ceiling, Wall
1
Warranty 5 years luminaire, 3 years battery
1
x1
2
x1
3 x1
2
4 x1
5 x1
4
Zumtobel LIGHTING GmbH
Schweizer Strasse 30 A-6851 Dornbirn AUSTRIA
EAN
9415167080238
350mm
73mm
3
1
5
1
Determine Location
In accordance with the relevant parts of AS/NZS 2293 determine a suitable location for installation.
Attach the Signage Screens
2
Ensure that hands are clean and no dirt or dust can be trapped beneath the screens. Determine the
appropriate signage screens to use based on the luminaire installation location.
NB- Take care not to crease the sign media or damage the edges. Ensure the signage points in the correct
orientation.
To insert the screen gently slide into the top cavity of the diffuser panel and gently bend and slide
into position observing the diffuser brackets on the sides and bottom.
Gently pull the bottom diffuser bracket downwards to assist fitting or removing screens.
3
Remove the plate by slding it away. Mount the plate to the ceiling or wall.
4
Unscrew the cover for the
terminal block.
Connect wiring to the terminals, then secure the cover back on.
L L
Input
N
L L
N
IP40 IK07
