Summary of Contents for LyfTrack SO911

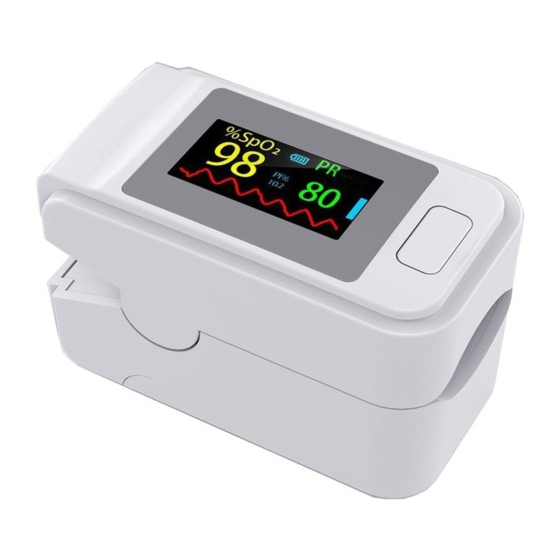

- Page 1 Model SO911 Fingertip Pulse Oximeter Instruction Manual Welcome to use the Fingertip Pulse Oximeter SO911. To ensure the accuracy of measurement and safety of use, please read the manual carefully before use.
-
Page 2: Table Of Contents
Model SO911 Fingertip Pulse Oximeter Instruction Manual INDEX GENERAL INFORMATION RODUCT NFORMATION XPLANATION OF YMBOLS SAFETY INFORMATION AFETY TANDARDS AFETY ONVENTIONS AFETY EQUIREMENTS CAUTION EMC S TATEMENT SCOPE OF APPLICATION RODUCT COPE ENERAL ESCRIPTION EASUREMENT RINCIPLE EATURES OPERATION RODUCT PERATION... -
Page 3: General Information
Model SO911 Fingertip Pulse Oximeter Instruction Manual 3.1 Product Information Product Name: Pulse Oximeter Product Model: SO911 Display Mode: LCD Display Specifications: Finger Clip Type 3.2 Explanation of Symbols The following symbols appear on the Pulse Oximeter and its packaging. -
Page 4: Safety Information
Model SO911 Fingertip Pulse Oximeter Instruction Manual 4.1 Safety Standards The manual uses the following Conventions for Notes, Cautions and Warnings. Parameter Specifications Type BF Defibrillator-Proof: as per IEC 60601-1 Degree of Noxious Liquid-Proof as IPXI Anti-Shock Degree as BF Applied Part According to the Degree of Safety of... -
Page 5: Caution
Model SO911 Fingertip Pulse Oximeter Instruction Manual 5.1 Caution This product is intended for use only as described in the instructions. To avoid personal injury, only use accessories and parts produced or recommended by our distributors, otherwise damage to the Pulse Oximeter may occur. -
Page 6: Scope Of Application
Model SO911 Fingertip Pulse Oximeter Instruction Manual 6.1 Product Operation Scope This Pulse Oximeter is a kind of innovated detection device with non-invasive and continuous features for artery SpO2 and PR detection. It is portable and easy to measure the SpO2 and PR value quickly and precisely. This can be through the finger Pulse Oximeter to meas Oxygen Saturation and Heart Rate. -
Page 7: Operation
Model SO911 Fingertip Pulse Oximeter Instruction Manual 7.1 Product Operation 1. Install 2 x AAA (Triple-A) Batteries into the battery compartment in correct polarity as indicated and close the lid. 2. Press the Clamp, place one finger into the rubbery part with nail surface upward and release the clamp. -
Page 8: Button Operation
Model SO911 Fingertip Pulse Oximeter Instruction Manual 8.1 Button Operation 1. Install 2 x AAA (Triple-A) Batteries according to the instructions, the device will turn on automatically and display Interface #1; then place your finger for measuring, if there is no finger for detection and it is without the operation, it will power off automatically in 8s. -
Page 9: Alarm
Model SO911 Fingertip Pulse Oximeter Instruction Manual 9.1 Alarm The Pulse Oximeter uses the following alarm indicators: Audible Alarm and Visual Alarms. Note: To correctly identify visual alarms, always observe the Pulse Oximeter within 1 meter of its position. 9.2 Low Power Alarm When battery power is at lowest level, the battery capacity indicates empty in the LCD to remind users of replacement of the battery cells. -
Page 10: Specifications
Model SO911 Fingertip Pulse Oximeter Instruction Manual 10.1 SpO2 Specifications The update rate for the SpO2 value and pulse rate is typically 1 second of data on an average, and other signal processing on the displayed and transmitted data values of SpO2 and pulse rate is not more than 20 seconds. Depending on the magnitude of difference between the alarm limit and the displayed value, the alarm signal generation delay maybe from 1~20 seconds. -
Page 11: Power Specifications
Model SO911 Fingertip Pulse Oximeter Instruction Manual 11.1 Power Specifications The following table describes the power specifications Parameter Specification DC3V, 2 x AAA (Triple-A) Battery The Pulse Oximeter powers off if the battery power is almost depleted. Table 1: Power Specifications 11.2 Physical Specifications... -
Page 12: Troubleshooting
Model SO911 Fingertip Pulse Oximeter Instruction Manual 12.1 Repair, Maintenance & Troubleshooting 1. Regular inspection is required to make sure that no obvious damage exist to affect the safety and performance of the device. 2. Make sure that no flammable substance, overtop or lower temperature and humidity exist in the operation conditions. -
Page 13: Certificate Of Compliance
Model SO911 Fingertip Pulse Oximeter Instruction Manual 13.1 Warranty & After Sales Support 1. This product is used for five years from the date of purchase; you can enjoy one-year free warranty. 2. The packaging is not covered by the warranty.
