Summary of Contents for Asus LS221H
-

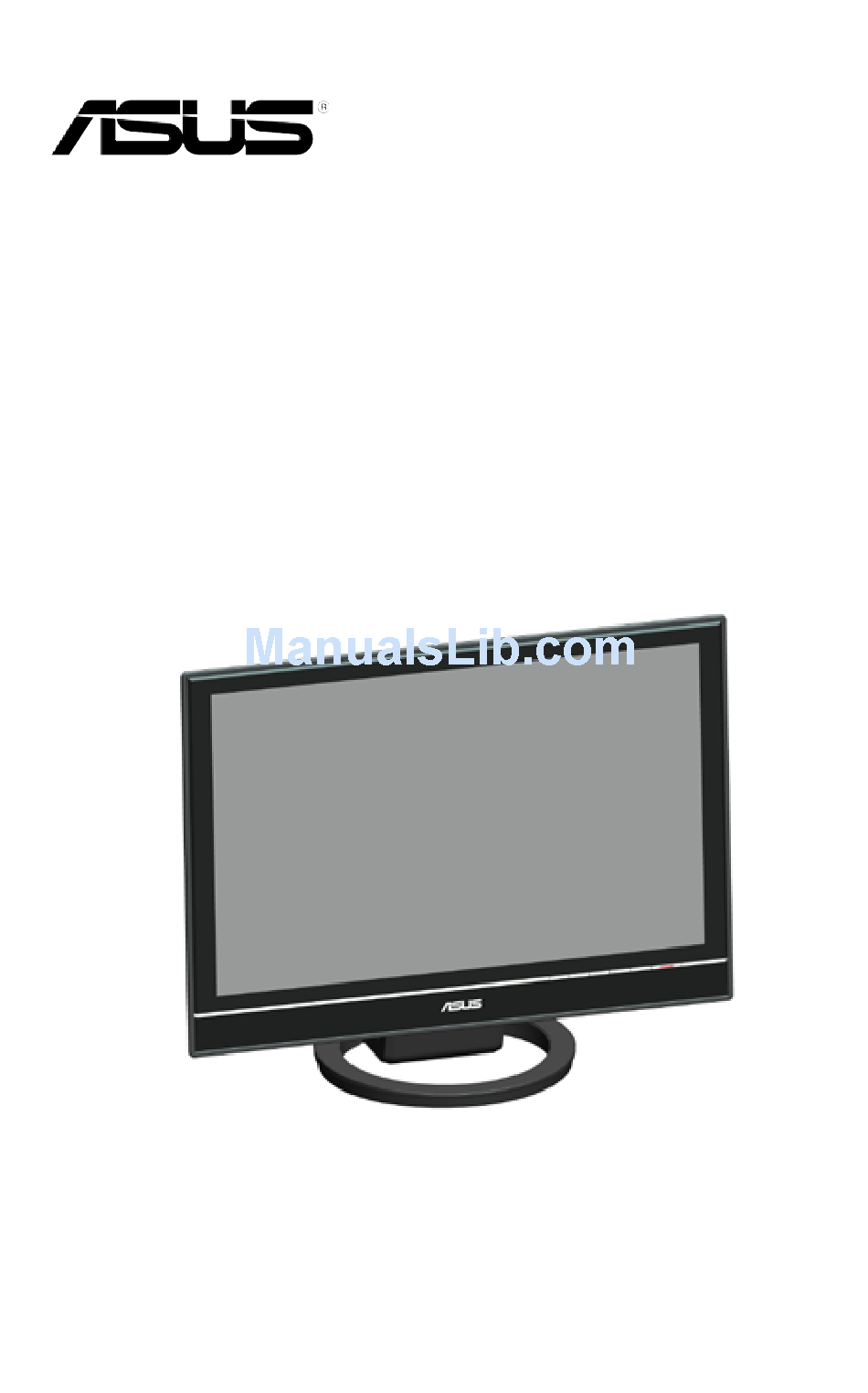

Page 1: Lcd Monitor
LS221 Series LCD Monitor User Guide... - Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Contents ... iii Notices ... iv Safety information ... v Care & Cleaning ... vi Chapter 1: Product introduction Welcome! ... 1-1 Package contents ... 1-1 Monitor introduction ... 1-2 1.3.1 Front view ... 1-2 1.3.2 Back view ... 1-3 Chapter 2: Setup Unfolding the monitor ... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 6: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 7: Where To Find More Information
Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. - Page 8 viii...
-
Page 9: Welcome
Welcome! Thank you for purchasing the ASUS The latest LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor Introduction
Stand Button: • Use this hotkey to switch between the two input sources: VGA and HDMI (LS221H only). button: • Use this hotkey to switch from five video preset modes (Game Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with SPLENDID™... -
Page 11: Back View
Back view Rear connectors (from left to right) VGA port. This 15-pin port is for PC VGA connection. HDMI port (LS221H only). For High-Definition Multimedia Interface (HDMI) signal connection. DC-IN port. This port connects the power connector from the bundled power adapter. - Page 12 Chapter 1: Product introduction...
-
Page 13: Unfolding The Monitor
Turning the monitor on Gently press the power button buton. The power indicator ASUS LCD Monitor LS221 Series Button . See page 1-2 for the location of the power lights up in blue to show that the monitor is ON. -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 15: Osd (On-Screen Display) Menu
• In the Standard Mode, the Satuation and Sharpness functions are not user- configurable. • In the other modes, the sRGB function is not user-configurable. ASUS LCD Monitor LS221 Series again to button. Repeat step 2 and step 3 to... - Page 16 Position: adjusts the horizontal postition (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100. • ASCR: turns on/off the ASCR(ASUS Smart Contrast Ratio) function. • Focus: reduces Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately.
- Page 17 Language: there are several languages for your selection, including English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese, Simplified Chinese, and Japanese. Information: shows the monitor information. • • All Reset: “Yes” allows you to restore the default setting. ASUS LCD Monitor LS221 Series HDMI Light-in-motion...
-
Page 18: Specifications Summary
Specifications summary Product Series Display Panel Size Color Saturation(NTSC) True Resolution Pixel Pitch Brightness (Max.) Contrast Ratio (Max.) ASUS Smart C. R.(ASCR) Viewing Angle (CR>10) Display Colors Response Time LCD ZBD Warranty Protection Glass Video Features Trace Free Technology SPLENDID™ Video Intelligence Tech. - Page 19 Net Weight (Esti.) Gross Weight (Esti.) Accessories Regulation Approvals *Specifications are subject to change without notice. ASUS LCD Monitor LS221 Series Black +20° ~ -3° 100 x 100mm 531 x 436 x 248mm 589 x 535 x 210mm 7 kg 10.1kg...
-
Page 20: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Power LED is not ON The power LED lights amber and there is no screen image Screen image is too light or dark Screen image is not centered or sized properly Screen image bounces or a wave pattern is present in the image Screen image has color defects (white does not look white) -
Page 21: Supported Operating Modes
WSXGA+ 1680 x 1050 (Primary) * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. ASUS LCD Monitor LS221 Series Vertical Horizontal Frequency Frequency 70Hz 31.47KHz... - Page 22 Chapter 3: General Instruction...
