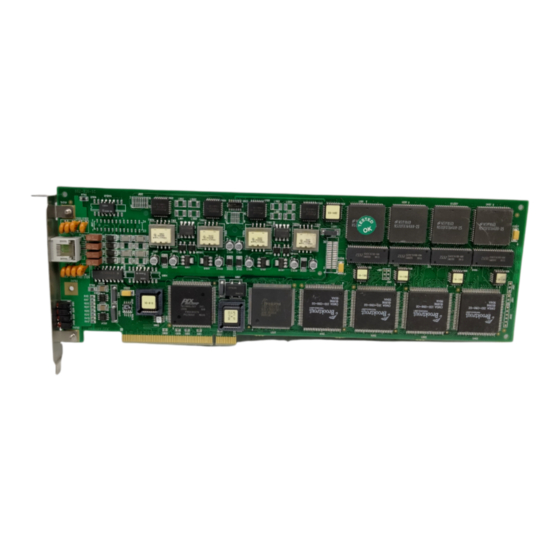

Brooktrout Technology TR114+P2L Installation And Replacement

Pci analog fax linecard

Hide thumbs

Table of Contents

Quick Links

Download this manual

This document explains how to install or replace Brooktrout

TR114+P4D, and TR114+P4L PCI analog fax cards in a OneBox

recommend that you read this document in its entirety before disassembling the hardware.

IMPORTANT

Microsoft and Windows are registered trademarks of Microsoft Corporation. Brooktrout is a trademark of Brooktrout Technology, Inc. Intel

and Dialogic are registered trademarks of Intel Corporation.

All other products, brand names, or companies mentioned in this document may be trademarks or registered trademarks of their respective

companies.

EN/LZT 108 5829/6 R2A  May 2002 Ericsson Enterprise AB

SPARE PARTS DOCUME NT

Brooktrout PCI

Analog Fax Linecard

Installation and Replacement

Before You Begin ........................................................................................................ 2

Gathering Tools and Equipment .............................................................................. 3

Installation Requirements .......................................................................................... 4

Preparing for Service.................................................................................................. 5

Installing Brooktrout PCI Analog Fax Cards in the Platform ............................. 6

Connecting Brooktrout PCI Analog Fax Cards

to Loop Start Telephone Service ............................................................................. 8

Installing an External Power Supply for DID Service .......................................... 9

Connecting Brooktrout PCI Analog Fax Cards to DID Telephone Service .10

Installing or Configuring Fax Card Drivers in RightFax.....................................11

Troubleshooting RightFax Fax Server Problems ................................................12

Consider the following issues when installing these PCI analog fax cards:

•

Because Ericsson sells Brooktrout PCI analog fax cards as a kit to be

installed in a computer platform that you provide, we cannot

guarantee the compatibility of these cards in a computer platform that

we have not tested. Hardware conflicts and configuration issues can

occur between hardware devices installed in a computer platform.

Ericsson will offer troubleshooting advice and assistance to the best

of its knowledge and ability. However, you are ultimately responsible

for resolving all hardware conflicts and configuration issues.

•

Brooktrout PCI analog fax cards are not approved for use in a

platform containing Brooktrout ISA fax cards. If Brooktrout ISA fax

cards are currently installed in the platform, they must be removed

prior to installing the Brooktrout PCI analog fax cards. Brooktrout PCI

fax cards are approved for use with all Intel

supported by OneBox.

•

Brooktrout PCI analog fax cards are approved for use with RightFax

version 6.0 or later only.

™

TR114+P2L, TR114+P4C,

fax server platform. We

Dialogic

linecards

Table of Contents

Need help?

Do you have a question about the TR114+P2L and is the answer not in the manual?

Questions and answers

Summary of Contents for Brooktrout Technology TR114+P2L

Page 1: Table Of Contents
Brooktrout PCI analog fax cards are approved for use with RightFax version 6.0 or later only. Microsoft and Windows are registered trademarks of Microsoft Corporation. Brooktrout is a trademark of Brooktrout Technology, Inc. Intel and Dialogic are registered trademarks of Intel Corporation.
Page 2: Before You Begin
Brooktrout PCI Analog Fax Linecard Installation and Replacement Before You Begin Review this section before performing any of the procedures in this document. This section provides important information about electrostatic discharge and document conventions. Electrostatic Discharge (ESD) Warning Static electricity will damage internal components. When working with internal components, keep them on a static-safeguarded work area and make sure that you wear a grounding strap.
Page 3: Gathering Tools And Equipment
Brooktrout PCI Analog Fax Linecard Installation and Replacement Gathering Tools and Equipment Before you begin disassembling the hardware platform, make sure that you have the following required tools and equipment: • This document • Phillips #2 screwdriver • One or more Brooktrout PCI analog fax cards •...
Page 4: Installation Requirements
Brooktrout PCI analog fax cards come in four configurations as shown in Table 1. Table 1: Brooktrout PCI analog fax card configurations Number of Loop Start Number of DID Fax Card Designation Ports Ports TR114+P2L TR114+P4C TR114+P4D TR114+P4L DID Installation Requirements You must meet the following requirements for DID. •...
Page 5: Preparing For Service
Brooktrout PCI Analog Fax Linecard Installation and Replacement Preparing for Service Follow these steps to begin the process of installing and/or replacing a Brooktrout PCI analog fax card. Note If you have already unplugged the power cord and removed the cover from the platform, skip to the next section, “Installing Brooktrout PCI Analog Fax Cards in the Platform.”...
Page 6: Installing Brooktrout Pci Analog Fax Cards In The Platform
0 and 1. A second TR114+P2L with the next highest memory address range will be assigned fax channels 2 and 3, and so on for all TR114+P2L cards installed in the platform.
Page 7 Brooktrout PCI Analog Fax Linecard Installation and Replacement To install Brooktrout PCI analog fax cards: 1. Determine the channels each fax card will handle. 2. Select a PCI expansion slot. If the PCI fax card… Then… Replaces an existing fax card Remove the existing fax card from the PCI expansion slot.
Page 8: Connecting Brooktrout Pci Analog Fax Cards To Loop Start Telephone Service
TR114 PCI Analog Hardware Guide. The Brooktrout PCI fax card ports connect to loop start service as shown in Table 2. Table 2: Loop start port assignments Fax Card Port on Fax Card Cable Labels Designation TR114+P2L TR114+P4C TR114+P4L CHANNEL 0 CHANNEL 1 CHANNEL 2 CHANNEL 3 To connect to loop start service: 1.
Page 9: Installing An External Power Supply For Did Service
Brooktrout PCI Analog Fax Linecard Installation and Replacement Installing an External Power Supply for DID Service The fax linecards must supply continuous –48v DC power to the DID trunk to maintain service from the central office (CO). This power is provided by a Tellabs 8012, or equivalent, external power supply through a power cable connected directly to each fax linecard.
Page 10: Connecting Brooktrout Pci Analog Fax Cards To Did Telephone Service
Brooktrout PCI Analog Fax Linecard Installation and Replacement Connecting Brooktrout PCI Analog Fax Cards to DID Telephone Service After you install the Brooktrout PCI fax card in the platform and connected an external power supply, connect the DID ports to DID telephone lines using the following procedure. If you need more information about DID service and how to order it, refer to “Appendix B: Telephone Service Options”...
Page 11: Installing Or Configuring Fax Card Drivers In Rightfax
Installing or Upgrading to RightFax Version 8.0 The RightFax version 8.0 installation or upgrade process allows you to install device drivers for the TR114+P2L, TR114+P4C, TR114+P4D, and TR114+P4L fax cards. Select the appropriate driver when installing or upgrading to RightFax version 8.0.
Page 12: Troubleshooting Rightfax Fax Server Problems
Brooktrout PCI Analog Fax Linecard Installation and Replacement Troubleshooting RightFax Fax Server Problems If you are having problems sending or receiving faxes with RightFax, refer to the RightFax Administrator’s Guide for troubleshooting suggestions. EN/LZT 108 5829/6 R2A  May 2002 Ericsson Enterprise AB...
