Summary of Contents for Hope Education HE1818444

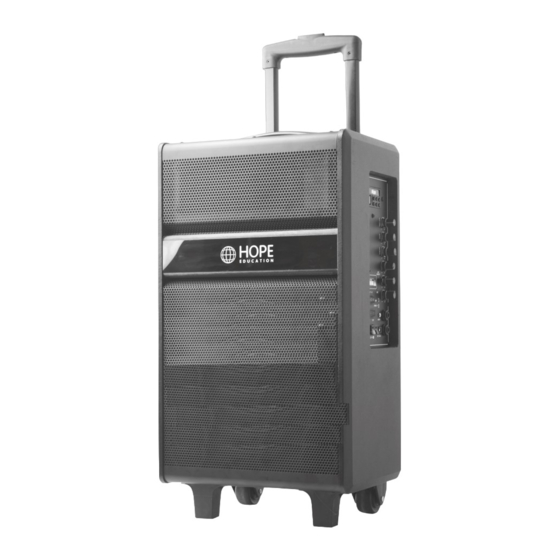

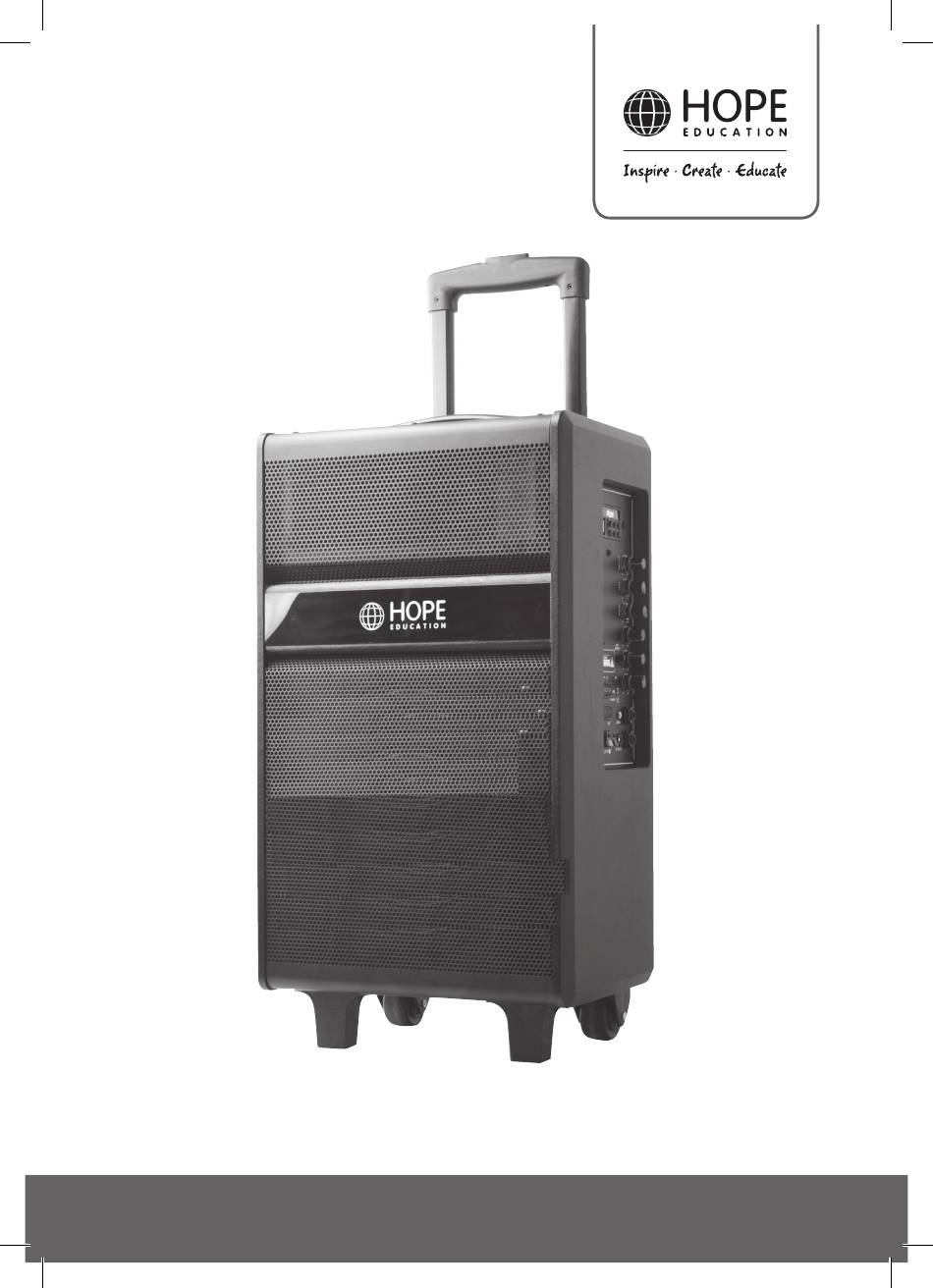

- Page 1 Portable PA System Powerful and portable speaker with 8 inputs, karaoke function, Bluetooth and recording studio. www.hope-education.co.uk...
-
Page 2: Terms Of Use
Terms of use This product is a precision electronic device. Avoid the use and storage of the product in the following conditions: Near high-temperature sources (heater, radiator, open fireplace, prolonged exposure to direct sunlight). Environments with high humidity such as bathrooms, swimming pool, etc. In very dusty environments. In an environment with strong vibrations. Should liquid be spilled onto the device, immediately disconnect it from the mains and switch it off. -
Page 3: Specifications
Functions 1. Portable speaker 2. Bluetooth function for streaming music from your mobile phone or tablet 3. Integrated MP3 player with auto-detection of TF card or USB memory. USB connector can charge your phone while playing music via Bluetooth. 4. Integrated FM radio with memory to store 25 radio stations. Automatic tuning. Possibility to connect an external FM antenna to improve radio reception. 5. AUX-IN input to play music from any external source 6. The ability to operate on battery or external power. 7. The integrated lead battery. Battery life 8 hours at a 100% level. 8. 1 x input for wired microphone with separate volume control, echo 9. 1 x input for guitar with separate volume control 10. Practical retractable handle for easy transport. Specifications The output power of the speaker RMS: 60W (4Ω, 1kHz, 1% THD) Installed drivers: 1 x 8” woofer, 1 tweeter THD: ≤ 0.1% Frequency response: 80Hz - 18kHz Signal-to-Noise Ratio: ≥ 80 db Bass Adjustment: ± 10 db (100Hz) Treble Adjustment: ± 10 dB (10kHz) Slot for micro TF card and USB (support up to 32GB of storage media, FAT16 / 32) 1 x microphone input 1 x guitar input External power supply: Power Adaptor AC 230V (50Hz) to DC15V The integrated battery: 12V 7000 Battery Operation: 8h at 100% volume Integrated FM radio The possibility of an external antenna Package content... -
Page 4: Product Description
Product description 01 Display 09 Mode for AUX-IN/ 18 Guitar input Bluetooth/FM 02 Pause/Play 19 MIC wired input 10 Main volume 03 Next track 20 DC adapter input 11. Bass setting 04 REC 21 DC 12V IN 12 Treble setting 05 Loop playback 22 Lights ON/OFF 13 ECHO setting-mic 06 Previous track 23 Charging indicator 14 Guitar volume 07 USB connector 24 MIC input indicator 15 MIC volume... -
Page 5: Remote Control
Remote control Mute Numeric buttons Record Prev. folder Repeat song Play/Pause (FM Scan) Previous/Next file Stand By Sound source 10 Next folder Repeat folder Volume 13 Equalizer Note: The remote control can only use all functions when playing MP3 / WMA music from USB or TF card. Equaliser is available only when you play MP3 / WMA music from an TF card / USB drive. Preset modes are: Standard -> Pop -> Rock -> Jazz -> Classic Numeric buttons can be used to directly enter the song number in playback mode USB / TF, or to enter exact radio frequency in FM mode (eg. by entering 1234 you will set up 123.4 FM). Remote control requires two AAA batteries. (2 pieces 1.5V alkaline AAA batteries) Batteries are not included. After purchase, install batteries in the remote control as shown inside the battery compartment. -
Page 6: Before First Use
Before first use After buying the speaker and unpacking, check the package contents. Before using the speaker for the first time, please fully recharge the battery. Leave the main switch in the OFF position. First connect the power adaptor into the socket DC15V on control panel, then plug the other end into a mains outlet. The charge indicator LED will be on (CHARGE). After the battery is fully charged, the charging LED indicator will change status to END. The speaker is now ready for use. To use the speaker powered by the battery, turn the main switch to BATT. To use the speaker whilst charging the battery, turn the switch to DC15V. - Page 7 If you are in a new location, or you have not yet saved radio stations in the memory, press Play / Pause (FM scan) on the remote control or the control panel of speaker. This will start automatic scan for available FM stations and store them in the memory (memory for 20 stations). You can switch between stored radio stations by pressing button previous / next track (CH + / CH). Playing music from the AUX-IN input By pressing the Sound source button on the remote control, or the control panel on the speaker, the sound source can be switched to AUX. External music sources can be connected to the AUX-IN socket using an audio cable.
- Page 8 Connecting and using a microphone The speaker supports connection and use of one wired and two wireless microphones. Wireless microphone (included) requires batteries (2pcs Alkaline 1,5V batteries type AA, not included). Unscrew the lower part of the microphone handle, insert the batteries and screw the cover back. To activate the microphone, set the slider upward to the ON position. If you’re near a speaker, it automatically pairs with a microphone, LED indicator of MIC will turn on. The microphone is now ready to be used. Wired microphone (not included), requires connection with the speaker via a cable. Plug the 3-pin connector of the cable into the bottom of the microphone, and the other end of the cable with 6.3mm jack plug into the MIC input. To activate the microphone, change the slide switch to the ON position.
- Page 9 Recording The speaker allows you to record sound in several ways. In order to utilize the audio recording, it is necessary to have connected a USB flash drive or micro TF card to the speaker. Note, there must be at least one MP3 track already stored in the root directory. Active sound source Bluetooth FM radio AUX-IN micro TF card USB flash disk Sound from Sound from What will be Sound from FM Sound from connected...
-
Page 10: Troubleshooting
Troubleshooting Problem Causes Solutions 1. Power plug not properly No display 1. Reinsert power plug plugged in 2. Power socket is broken 2. Check the power cord and socket 1. Incorrect speaker No sound 1. Check speaker connection connection 2. Wrong input mode selected 2. Choose the right input 3. Volume at lowest level 3. Increase master volume Sound distortion 1. Master volume is set too 1. -
Page 11: Additional Information
Additional information This product complies with the radio interference requirements of the European community. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products within your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health. - Page 12 Manufactured in China for Hope Education Gregory street, Hyde, Cheshire, SK14 4RH, UK...
