- Page 1 DVM-HDT-AUDEX User Manual DVM-HDT-AUDEX HDMI 2.0/HDCP 2.2 Audio Extractor and Embedder Sommer cable GmbH Humboldtstraße 32-36 D-75334 Straubenhardt - GERMANY Tel: +49 7082 49133-0 Fax: +49 7082 49133-11 Mail: info@sommercable.com www.sommercable.com...
- Page 2 DVM-HDT-AUDEX User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
DVM-HDT-AUDEX User Manual Table of Contents Introduction ..........................4 Features ............................ 4 Panel Descriptions ........................5 Front Panel ........................5 Rear panel ........................5 Application Diagram ........................ 7 Specifications .......................... 7 Package Contents ........................7 Maintenance ..........................8 Warranty Policy........................8 Limitations of Warranty ...................... -
Page 4: Introduction
DVM-HDT-AUDEX User Manual Introduction The DVM-HDT-AUDEX HDMI 2.0 Audio Extractor and Embedder can work in two modes, one mode for extracting the audio via Coaxial and Stereo outputs from HDMI source, and the other mode for removing the original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI output. -

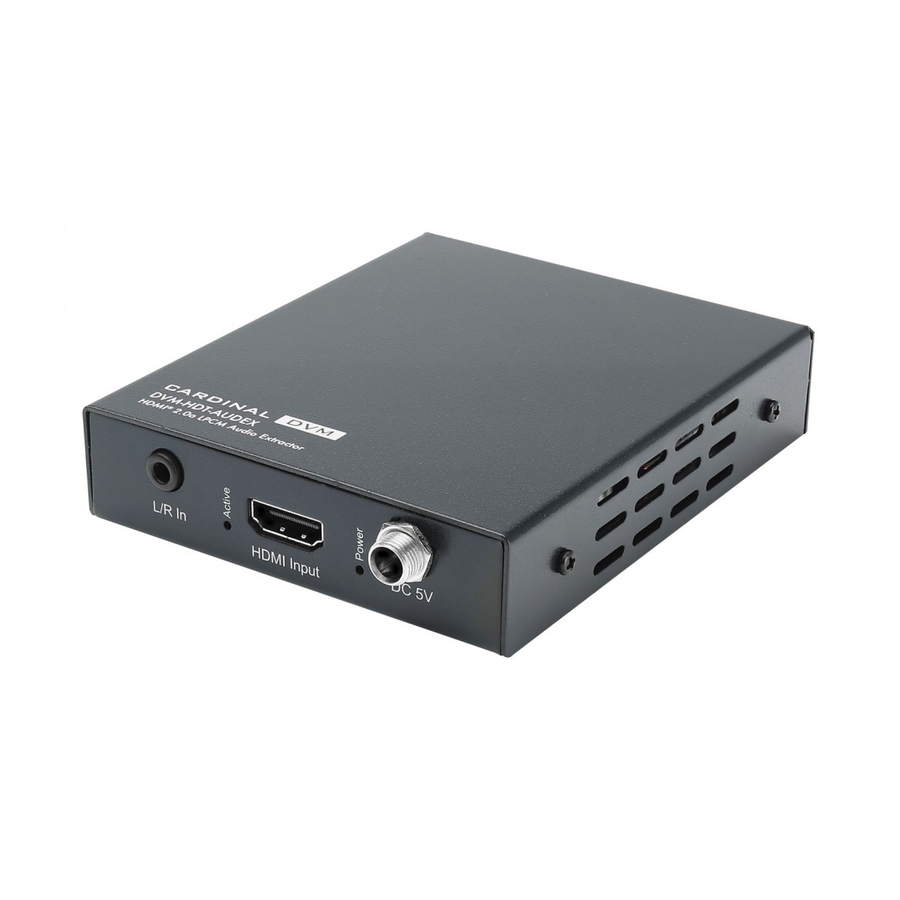

Page 5: Panel Descriptions
DVM-HDT-AUDEX User Manual Panel Descriptions Front Panel ① L/R In--- Analog stereo auxiliary audio input ② HDMI Input---Connect to HDMI source device ③ DC 5V---Connect to 5V/1A DC power supply ④ LED indicator for HDMI input---Lit when detecting HDMI signal ⑤... - Page 6 DVM-HDT-AUDEX User Manual ① DIP switcher--- EDID management EDID type Combination of DIP positions Copy EDID from output1 1080P 2.0CH 1080P 5.1CH 1080P 7.1CH 1080i 2.0CH 1080i 5.1CH 1080i 7.1CH 3D 2.0CH 3D 5.1CH 3D 7.1CH 4K 2.0CH 4K 5.1CH 4K 7.1CH DVI 1280x1024 DVI 1920x1080...
-
Page 7: Application Diagram
DVM-HDT-AUDEX User Manual Application Diagram Specifications Bandwidth 18Gbps Video Input Connectors 1x HDMI Type A, 19-pin, female Audio Input Connectors 1x 3.5mm stereo jack (L/R) Video Output Connectors 1x HDMI Type A, 19-pin, female Audio Output Connectors 1x RCA(S/PDIF), 1x 3.5mm stereo jack (L/R) EDID 4-PIN DIP Switcher Mode... -
Page 8: Maintenance
The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of Sommer cable, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by Sommer cable. -
Page 9: Exclusive Remedies
DVM-HDT-AUDEX User Manual The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of Sommer cable, such as lightning or other natural and weather related events or wartime environments. The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement. - Page 10 Shipping your RMA to Sommer cable using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. Sommer cable will not repair or replace a module that is shipped in such a way that the product is not properly protected.
