Overview –

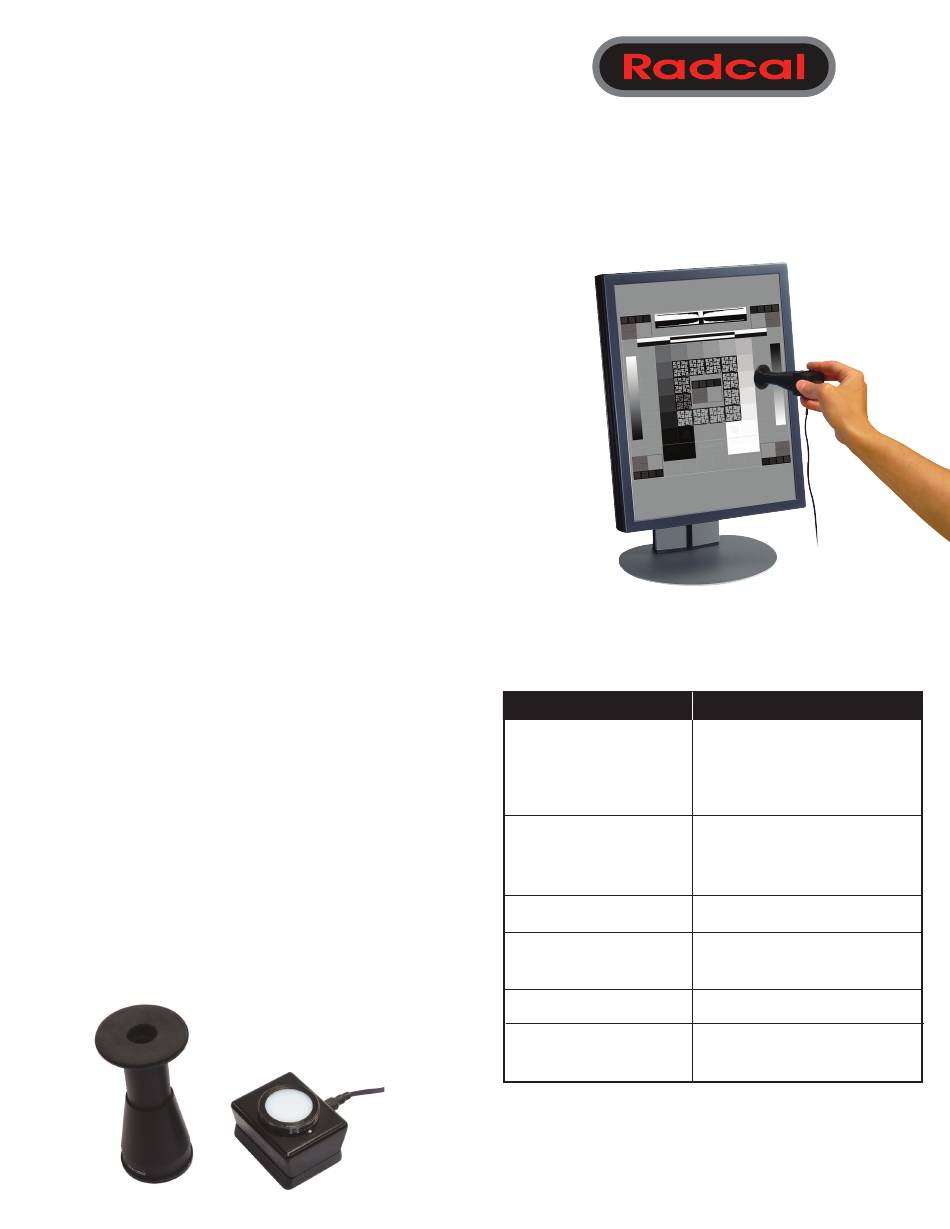

The AGLS is a sensor accessory to the Accu-Gold family of products that
include the Accu-Gold digitizer and Accu-Gold Touch systems. The AGLS
is an excellent Quality Control/Quality Assurance solution for measuring
luminance and illuminance.
The base unit of the light sensor contains a silicon photo diode that is
exposed to ambient light through an optical filter which very accurately
simulates the spectral response of the human eye (the photopic
response). In this way, the light sensor measures illuminance of the
ambient in units of lux.
A luminance adapter can be attached to the base unit in front of the
photo‐diode for the measurement of luminance of a monitor in cd/m
The aperture of the Luminance Adaptor is 10‐mm in diameter.
The Accu‐Gold digitizer and Touch systems automatically detect the
presence or absence of the luminance adapter and automatically select
the appropriate measurement and units.
Luminance
Adapter
units.
2
Base Unit -
Illuminance
AGLS Light Sensor
Manual
Specifications –
Light Sensor
Luminance Properties
Range
Resolution
Aperture
Illuminance Properties
Range
Resolution
Calibration Uncertainty
Photopic Response
Cosine Response
Calibration Traceability
0.05 to 50,000 cd/m
2
0.01 cd/m
2
10-mm diameter
0.05 to 50,000 lux
0.01 lux
<3% or 0.05 (lux or cd/m )
2
<3% Deviation from 1931 CIE
Standard Photopic Curve
<2.5% based on the CIE f2 Test
NIST and other International
standards
