Summary of Contents for Piktronik KOP2300

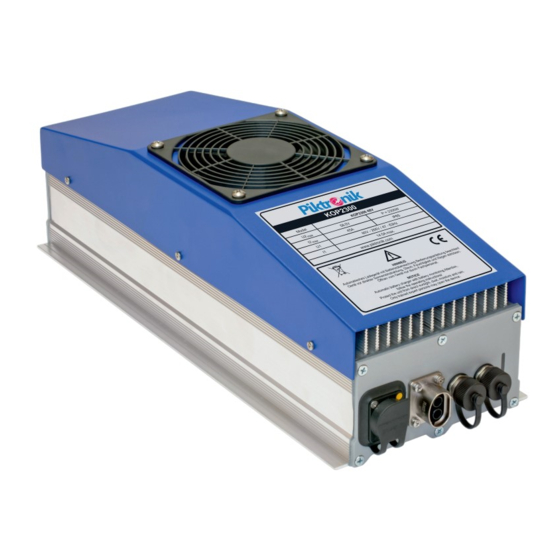

- Page 1 KOP2300 Battery charger User`s manual 48V / 45A 07/2020...
- Page 3 When programming the charging profile always follow the battery manufacturer's recommendations. Please read the operating and safety instruction carefully before using or installing the KOP2300 battery charger! Start of the charging process Establish a safe connection between the battery and the charger first. Then plug the mains connector.
- Page 4 ENGLISH Mechanical installation The following things must be considered during the installation: Ensure the distance from the walls or other objects Ensure the distance from the walls or other objects. Leave enough space (at least 10cm) between the cooling openings and other objects or walls, so that the air can circulate well.
- Page 5 ENGLISH Connections M12 A-Coding 8 pin M12 A-Coding 5 pin Amphenol PL082X-61-10 AC INPUT Neutrik NAC3MPX NOTE: All contact arrangements shown from the mating side. Pinout of the CAN connector Shield +12V-CAN 12V power supply (max.100 mA) GND-CAN Power supply common CAN-H CAN-High data signal CAN-L...
- Page 6 13A in the case of very fast mains voltage fluctuations. If the mains voltage drops below approx. 90VAC, the KOP2300 charger is switched off. After the mains voltage rises again, the charging is restarted where it was interrupted.
- Page 7 * Error – see the table in Chapter 8. Number flashing of consecutive LED flashes defines the error number. This LED functions depend ON the charger parameters – consult your Piktronik dealer. Technical characteristics Charger type KOP2300...
-
Page 8: Troubleshooting
ENGLISH Error list Error number and description 1 Charger temperature sensor or cooling fan failed 2 Charging time limit has been exceeded 3 Battery temperature sensor failed or not connected or shorted 4 Internal charger temperature to high 5 Battery voltage too high at the start of the charging 6 Battery temperature too low during charging 7 Battery temperature too high during charging 8 Charger disconnected from the battery during charging... - Page 9 ENGLISH General information Read the manual thoroughly. The charger must be used with the original cables only. Do not change, shorten, extend or short circuit the cables. Remove the mains plug from the mains socket first before breaking the battery connection.
- Page 10 ENGLISH Warnings COOLING Do not cover the charger housing and protect it from direct sunlight or other heat sources. The charging current is reduced at elevated ambient temperatures and the charging time increases accordingly. he built-in fan must be able to cool the electronics well.
- Page 12 Adresse/ Piktronik d.o.o. Address: Cesta k Tamu 17 SI-2000 Maribor Slowenien Tel.: +386-2-460-2250 Fax: +386-2-460-2255 Internet: www.piktronik.com E-mail: info@piktronik.com www.piktronik.com 07/2020...
