Geotab IOX-NFCREADER Installation Instructions Manual

IOX-NFCREADER
For the most up to date version, please visit: ​
The IOX-NFCREADER integrates Near Field
Communication (NFC) with the Geotab​
identify drivers operating vehicles in a fleet at any given
time. Users create rules, reports, and exceptions on
MyGeotab​ TM ​ based on individual drivers or vehicles.
Top Features
Simple-to-install ​
●
● Driver Id Whitelist
Assigns drivers to vehicles
●
● Enables driver-based reporting
● Tracks driver data across different
IOX Hardware Technical Specifications
Weight
Size
Housing
Interfaces
Frequency
Power Output
Current Rating
Temperature Rating
Connectors
Installation
Reading Distance
Compatible Devices
Copyright © Geotab Inc. 2015-2019 - All Rights Reserved | www.geotab.com | Rev 2.13 - 11/2019
® denotes a trademark of Geotab Inc., registered in Canada, the United States and other countries
g oo.gl/Sz7JTA
®​ GO device to
I OX​ ®​ into the Geotab​ ®​ GO device
vehicles
170 ​ g
Overall Length​ : 1300 mm L
Widest Point (Antenna)​ : 50 mm W × 13 mm H
Widest Point (Connector)​ : 53 mm W × 15 mm
Black, moisture-resistant thermoplastic overmold
CAN​ : 500 kbps (for daisy
Ground Switch​ : For Relay
13.56 MHz
Daisy Chaining​ : 2500 mA @ 12 V/24
Operating Mode​ : 100 mA
Sleep Mode​ : 1.1 mA
−40 ℃ to +85
℃
Keyed mini-USB type-B plug​ : Daisy chain power and CAN in
Keyed mini-USB type-B socket​ : Daisy chain power and CAN out
2-pin grounding socket (Molex connector)
Keyed mini-USB plug connects to the GO device or another IOX
Relay module connects to 2-pin socket
With GEO-NFCSTKBLU​ : 19 mm
With GEO-NFCFOBBLU​ : 11 mm
G​ O 6​ ®​ , GO7​ ®​ , GO7 Rugged, GO8​

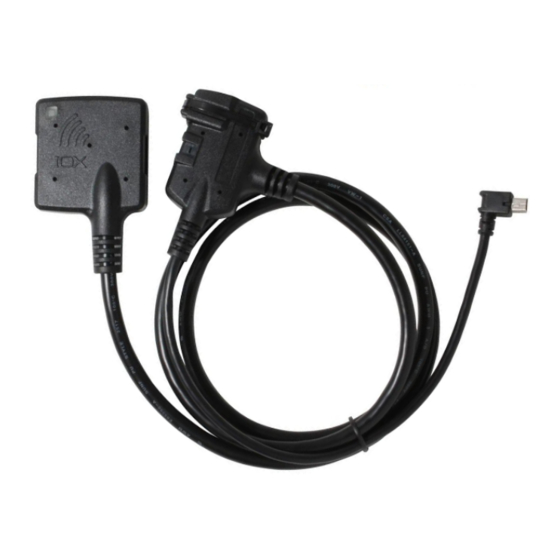

*IOX-NFCREADER pictured above
