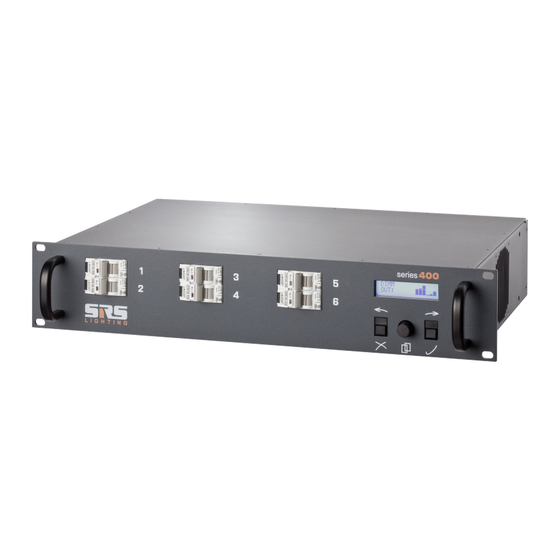

Digital dimmer unit
Instruction Manual
Models:
ATTENTION!
This
information about the installation and use of the
equipment. Please read and follow these instructions
carefully.
ATTENTION!
Always ensure that the power to the equipment is
disconnected
commencing any maintenance work.
DDP 610 PG, DDP 610 IL
DDP 610 SOX, DDP610 SCH
version 3
instruction
before
/since 6.2011/
manual
contains
opening
the
important
equipment
or
Advertisement
Table of Contents
Summary of Contents for SRS Light Design DDP 610 PG
- Page 1 Digital dimmer unit Instruction Manual Models: DDP 610 PG, DDP 610 IL DDP 610 SOX, DDP610 SCH version 3 /since 6.2011/ ATTENTION! This instruction manual contains important information about the installation and use of the equipment. Please read and follow these instructions carefully.
-
Page 2: General
Male and female DMX standard 3pin and 5pin XLR connectors are based on the back panel of DDP610. DMX input is opticaly isolated. Analog input (standard 0-10V) are made thru D-SUB 9 pin connector. SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk... -
Page 3: Function And Control
3. Analogue input – SUB-D 9 4. Power cable input 5. Power outputs – may vary according custommer claims. Back pannel design may vary according to device upgrade SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... -
Page 4: Operations
Left button is preheat for each channel or right button for all channels. 3.3 Dimmer curves Left button is curves for each channel or right button for all channels. SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk... -
Page 5: Automatic Lamp Test
Press ENTER button. Roll ENCODER and set DMX address - (001-512). Press ENTER button. DIMMER works only with DMX input. 3.5.2 Analog mode Press ENTER button. SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... -
Page 6: Patch
Mix mode Press ENTER button. Press ENTER button. Dimmer is switched to HTP mix mode – analog input + DMX input. 3.5.5 Patch mode Press ENTER button. SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... -
Page 7: Lock
Enter new code and press MENU button. New code is saved. For locking menu press two buttons together. For unlock press MENU and enter code. Menu is unlocked. SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk... -
Page 8: Menu Tree
4. Menu tree SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... -
Page 9: Technical Data
Circuit breakers on front panel Easy change of power output connectors Display Functions: Voltage of all 3 phases Single channels value Inner temperature Load status check DMX signal status SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... - Page 10 1-6, analog input (0-10V) +12V DC output – max 100mA Pin 8+9 GROUND Pinout for the SOCAPEX connectors: Pin 1,3,5,7,9,11 Channels 1,2,3,4,5,6 Pin 2,4,6,8,10,12 Neutral Pin 13-19 Earth SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk...
-
Page 11: Parameters
Terminal box (fixed installation) Main: 3 x 230V/50Hz, 3 x 32A Power cable 5 x 6/10 mm Measurement 482,6 x 88 x 300 mm Weight 15kg SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk... -
Page 12: Table Of Contents
3.5.3 Manual mode......................3.5.4 Mix input........................3.5.5 Patch......................... 3.6 Lock..........................4. Menu tree........................... 5. Technical data..........................6. Parameters..........................7. Contents............................. Bratislava, 1 of June 2011 Robert Sloboda SRS Light Design, Rybničná 36/D , 831 06 Bratislava, Slovakia, tel:+421244681417, fax:+421244681419, www.srslight.sk sales@srslight.sk...
