Wave wifi Rogue Reach WWR Quick Start Manual

AVE
WiFi
On the Water and Online
Did you get all of your accessories?
POE
Injector
Cigarette adapter
Power Adapter
***Wave WiFi suggests Initial setup be with a Laptop.***
HOW TO CONFIGURE / OPERATE:
1. Plug the end of the ethernet cable into the POE (Power Over Ethernet) injector.
2. Plug the power supply into the POE injector (Both lights on the POE should show solid green).
3. Plug the POE injector into the ethernet port of a laptop, computer or router.
*When plugging into a router it will be the "internet" or "WAN" port.*
Connecting directly via ethernet port with Laptop:
1. Turn off the wireless capability of the laptop (if needed).
2. Open a web browser and at the top URL bar type: 192.168.89.1
3. Once on the interface page of the unit, click on a network and
type in a password if needed.
4. The connection should read "(Three dots)..., Checking IP, Got
Internet".
NOTE: While the unit's light-weight, compact, weather resistant design makes it the ideal portable Ethernet converter/Wireless Bridge for temporary Internet
access, prolonged exposure to the elements may cause premature deterioration of the internal circuitry and shorten the life of the unit. The Unit's Warranty
Policy specifically states that the warranty is void if the failure is attributable to misuse, mishandling, improper installation, alteration (including removing or
obliterating labels) and opening or removing external covers.
Rogue Reach WWR Quick Start Guide
The Rogue Reach and Rogue Reach Dual-Band
both have a 1" - 14 threaded female fitting.
Both units are omni - directional.
Wall Socket
Laptop Computer
Power adapter plugs
into wall socket.
Plug the end of the wall
adapter into the input of
the POE
Ethernet end plugs into laptop or router.
Connecting wirelessly with Router:
1. Connect wirelessly to the router that the Rogue unit is physically connected
to via laptop, tablet or smartphone.
2. Open a browser and at the top URL bar type: 192.168.89.1
3. Once on the interface page of the unit, click on a network and type in a
password if needed.
4. The connection should read "(Three dots)..., Checking IP, Got Internet".
Page 1
Cigarette adapter (OPTIONAL)
Plug the cigarette
adapter into a
power source.
Plug the end of
the cigarette
adapter into the
POE input.

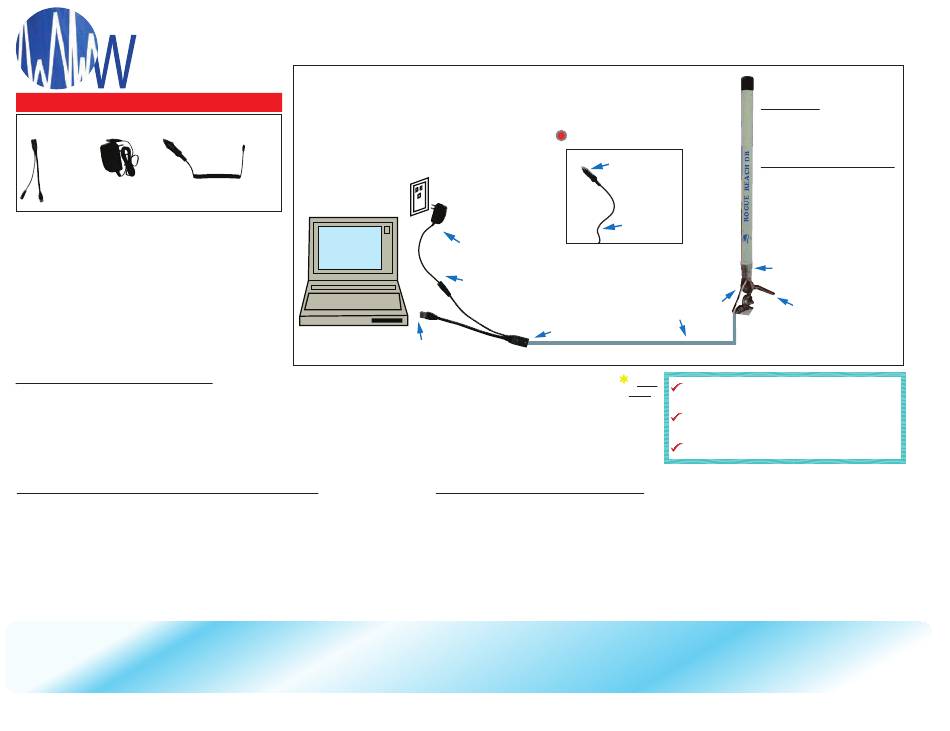

25FT CAT5e cable is affixed
to the Rogue Reach
Plug the CAT5e Cable
into the POE injector
Quick
Be sure when mounting the Rogue Reach that it is between
Tips:
15 - 25ft when on the water.
The Rogue Reach must be mounted vertically with the
antenna up.
Do not mount next to your Radar.
Rogue Reach:
Size: 32in. H x 1.5in. W
Freq: 2.4Ghz

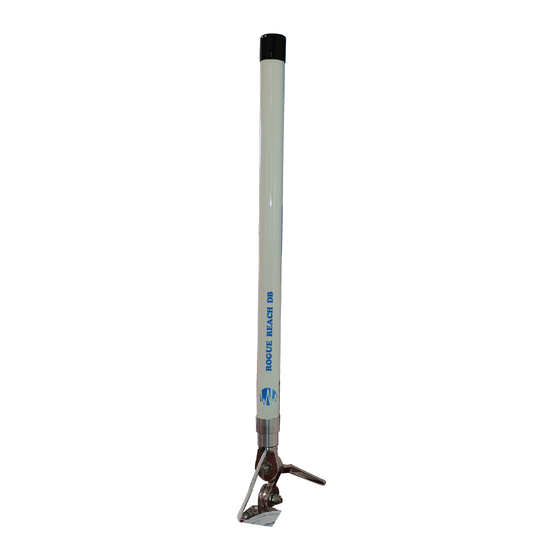

Rogue Reach Dual-Band (DB):
Size: 22in. H x 1.5in. W
Freq: 2.4Ghz / 5Ghz
Equipped with a 1" - 14 threaded
female fitting
(Mount Not Included)
Copyright Wave WIFI Inc., 2017. All rights reserved.
