Electro Industries/GaugeTech Shark 100S User Manual

Electronic submitter with wi-fi ethernet capability
Hide thumbs Also See for Shark 100S:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
V.1.24
V.1.24
July 3, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shark 100S and is the answer not in the manual?

Questions and answers

Related Manuals for Electro Industries/GaugeTech Shark 100S

Summary of Contents for Electro Industries/GaugeTech Shark 100S

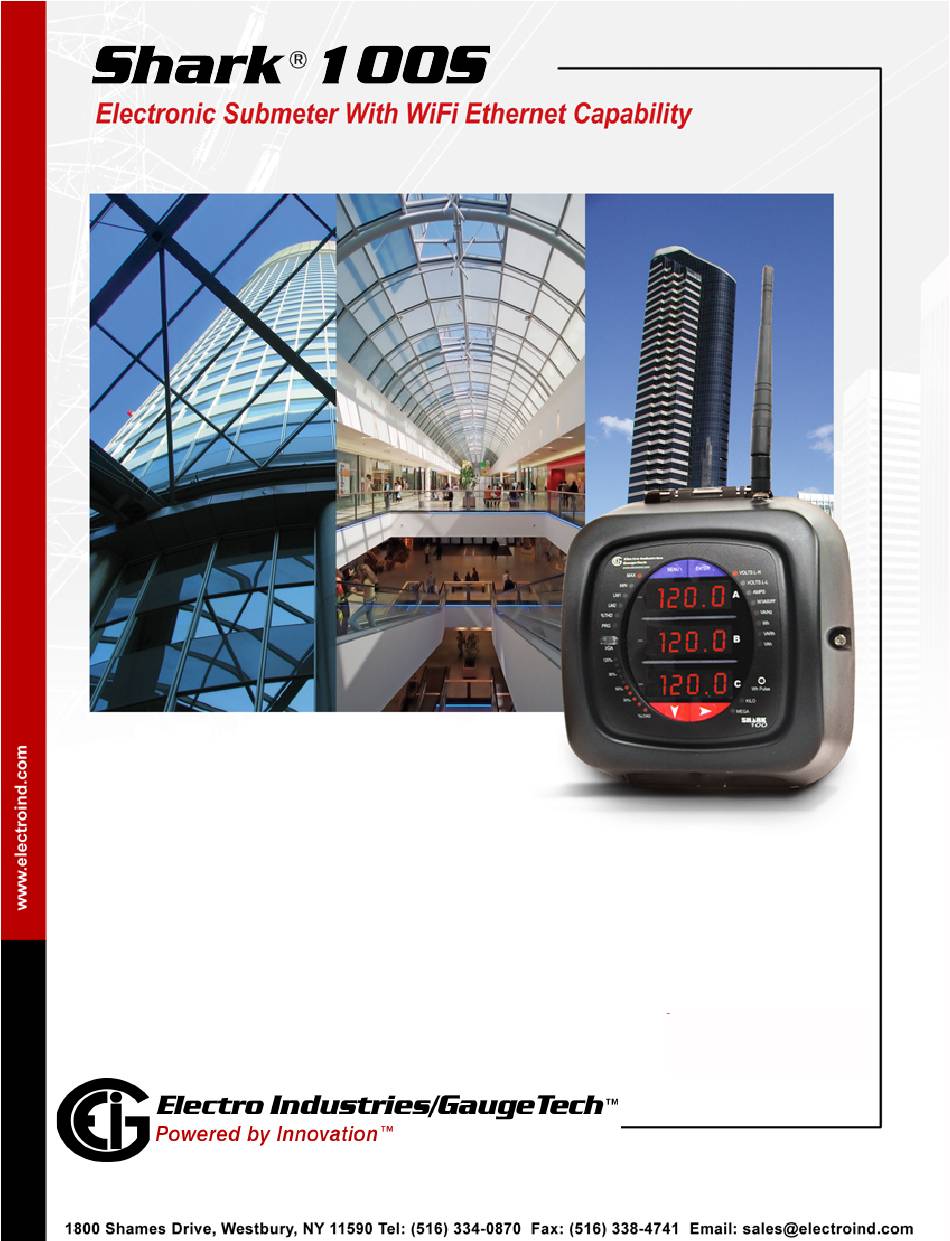

  • Page 1 User Manual V.1.24 V.1.24 July 3, 2020...
  • Page 2 This page intentionally left blank.
  • Page 3 Electro Industries/GaugeTech. © 2020 Electro Industries/GaugeTech Shark® is a registered trademarks of Electro Industries/GaugeTech. The distinctive shapes, styles and overall appearances of the Shark® meters are trademarks of Electro Industries/GaugeTech. CommunicatorPQA...
  • Page 4 This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 5: Customer Service And Support

    516-334-0870 or fax 516-338-4741. Product Warranty Electro Industries/GaugeTech (EIG) warrants all products to be free from defects in material and workmanship for a period of four years from the date of shipment. During the warranty period, we will, at our option, either repair or replace any product that proves to be defective.

  • Page 6: Use Of Product For Protection

    Statement of Calibration Our instruments are inspected and tested in accordance with specifications published by Electro Industries/GaugeTech. The accuracy and a calibration of our instruments are traceable to the National Institute of Standards and Technology through equipment that is calibrated at planned intervals by comparison to certified standards.
  • Page 7 • The antenna provided must not be replaced with an different type. Attaching a different antenna will void the FCC approval and the FCC ID can no longer be considered. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 8 GaugeTech changed the face of power monitoring forever with its first breakthrough innovation: an affordable, easy-to-use AC power meter. Forty years since its founding, Electro Industries/GaugeTech, the leader in power monitoring and control, continues to revolutionize the industry with the highest qual- ity, cutting edge power monitoring and control technology on the market today.

  • Page 9: Table Of Contents

    Product Warranty Use Of Product for Protection Statement of Calibration Disclaimer Safety Symbols FCC Information About Electro Industries/GaugeTech (EIG) 11: Three-Phase Power Measurement 1.1: Three-Phase System Configurations 1.1.1: Wye Connection 1.1.2: Delta Connection 1.1.3: Blondel’s Theorem and Three Phase Measurement 1.2: Power, Energy and Demand...
  • Page 10 4.6: Extended Surge Protection for Substation Instrumentation 4-20 5: Communication Installation 5.1: Shark® 100S Communication 5.1.1: IrDA Port (Com 1) 5.1.1.1: USB to IrDA Adapter 5.1.2: RS485 Communication Com 2 (485 Option) 5.1.3: KYZ Output 5.1.4: Ethernet Connection Electro Industries/GaugeTech ™ E145721 TOC-2 Powered by Innovation™...
  • Page 11 7.1.2: Understanding Submeter Face Buttons 7.2: Using the Front Panel 7.2.1: Understanding Startup and Default Displays 7.2.2: Using the Main Menu 7.2.3: Using Reset Mode 7.2.4: Entering a Password 7.2.5: Using Configuration Mode Electro Industries/GaugeTech ™ E145721 TOC-3 Powered by Innovation™...
  • Page 12 B.3: Data Formats B.4: Floating Point Values B.5: Modbus Register Map C: Shark® 100S Meter DNP Map C.1: Introduction C.2: DNP Mapping (DNP-1 to DNP-2) D: DNP3 Protocol Assignments D.1: DNP Implementation Electro Industries/GaugeTech ™ E145721 TOC-4 Powered by Innovation™...
  • Page 13 D.4.1.4: 16-Bit Analog Input Without Flag (Obj. 30, Var. 4) D.4.1.5: Class 0 Data (Obj. 60, Var. 1) D-13 D.4.1.6: Internal Indications (Obj. 80, Var. 1) D-13 E: Using the USB to IrDA Adapter CAB6490 E.1: Introduction E.2: Installation Procedures Electro Industries/GaugeTech ™ E145721 TOC-5 Powered by Innovation™...
  • Page 14 Table of Contents This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 TOC-6 Powered by Innovation™...

  • Page 15: 11: Three-Phase Power Measurement

    This leads to common voltages of 208/ 120 and 480/277 (where the first number represents the phase-to-phase voltage and the second number represents the phase-to-ground voltage). Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 16 A phasor diagram for the typical connected voltages and currents is shown in Figure 1.2. Figure 1.2: Phasor Diagram Showing Three-phase Voltages and Currents Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 17 Table 1, even though a neutral or ground wire is not physically present at the load. The transformer is the best place to determine the circuit connection type because this is a location where the voltage reference to ground can be conclusively identified. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 18: 2: Delta Connection

    In many delta services, one corner of the delta is grounded. This means the phase to ground voltage will be zero for one phase and will be full phase-to-phase voltage for the other two phases. This is done for protective purposes. Electro Industries/GaugeTech ™ E145721...
  • Page 19 208 volts on the third phase. Figure 1.5 shows the phasor diagram for the voltages in a three-phase, four-wire delta system. Figure 1.5: Phasor Diagram Showing Three-phase Four-Wire Delta-Connected System Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 20: 3: Blondel's Theorem And Three Phase Measurement

    The difference in modern meters is that the digital meter measures each phase volt- age and current and calculates the single-phase power for each phase. The meter then sums the three phase powers to a single three-phase reading. Electro Industries/GaugeTech ™ E145721...
  • Page 21 If we measure the currents in wires A, B and C, we then know the current in wire N by Kirchhoff's Law and it is not necessary to measure it. This fact leads us to the conclusion of Blondel's Theorem- that we only need to measure the power in three of Electro Industries/GaugeTech ™ E145721...

  • Page 22: Power, Energy And Demand

    The data from Figure 1.7 is reproduced in Table 2 to illustrate the calculation of energy. Since the time increment of the measurement is one minute and since we Electro Industries/GaugeTech ™ E145721...
  • Page 23 1/ 60 (converting the time base from minutes to hours). Time (minutes) Figure 1.7: Power Use over Time Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 24 15-minute interval. To convert the reading to a demand value, it must be normalized to a 60-minute interval. If the pattern were repeated for an additional three 15-minute intervals the total energy would be four times the measured value or Electro Industries/GaugeTech ™ E145721 1-10 Powered by Innovation™...
  • Page 25 Figure 1.8: Energy Use and Demand As can be seen from this example, it is important to recognize the relationships between power, energy and demand in order to control loads effectively or to monitor use correctly. Electro Industries/GaugeTech ™ E145721 1-11...

  • Page 26: Reactive Energy And Power Factor

    The quadrature current may be lagging the voltage (as shown in Figure 1.9) or it may lead the voltage. When the quadrature current lags the voltage the load is requiring both real power (watts) and reactive power (VARs). When the quadrature current Electro Industries/GaugeTech ™ E145721 1-12 Powered by Innovation™...
  • Page 27 Displacement power factor does not consider the magnitudes of voltage, current or power. It is solely based on the phase angle differences. As a result, it does not include the impact of Electro Industries/GaugeTech ™ E145721 1-13 Powered by Innovation™...

  • Page 28: Harmonic Distortion

    Figure 1.11 shows a current waveform with a slight amount of harmonic distortion. The waveform is still periodic and is fluctuating at the normal 60 Hz frequency. However, the waveform is not a smooth sinusoidal form as seen in Figure 1.10. Electro Industries/GaugeTech ™ E145721 1-14 Powered by Innovation™...
  • Page 29 Figure 1.11. 1000 Time 3rd harmonic 5th harmonic – 500 7th harmonic Total fundamental Figure 1.12: Waveforms of the Harmonics Electro Industries/GaugeTech ™ E145721 1-15 Powered by Innovation™...
  • Page 30 It is common in advanced meters to perform a function commonly referred to as waveform capture. Waveform capture is the ability of a meter to capture a present picture of the voltage or current waveform for viewing and harmonic analysis. Electro Industries/GaugeTech ™ E145721 1-16 Powered by Innovation™...

  • Page 31: Power Quality

    In his book Power Quality Primer, Barry Kennedy provided information on different types of power quality problems. Some of that information is summarized in Table 1.3. Electro Industries/GaugeTech ™ E145721 1-17...
  • Page 32 If a power quality problem is suspected, it is generally wise to consult a power quality professional for assistance in defining the cause and possible solutions to the problem. Electro Industries/GaugeTech ™ E145721 1-18...

  • Page 33: 2: Shark® 100S Submeter Overview And Specifications

    Shark® 100S meter features detailed in this manual are: • 0.2% Class Revenue Certifiable Energy and Demand Submeter • Meets ANSI C12.20 (0.2 CL) and IEC 62053-22 (0.2S) Classes • Multifunction Measurement including Voltage, Current, Power, Frequency, Energy, etc. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 34 The Shark® 100S submeter uses standard 5 or 1 Amp CTs (either split or donut). It surface mounts to any wall and is easily programmed. The unit is designed specifically for easy installation and advanced communication. Electro Industries/GaugeTech ™ E145721...

  • Page 35: 1: Model Number Plus Option Numbers

    System Secondary Harmonics Based (Also and Limits configurable for RS485) Example: Shark 100S - 60 - 10 - V3 - D2 - 485 which translates to a Shark® 100S submeter with a 60Hz system, Current class 10, Default V-Switch , D2 power supply, and RS485 communication.

  • Page 36: 3: Measured Values

    VA-hr Frequency %THD** Voltage Angles Current Angles % of Load Bar ** The Shark® 100S meter measures harmonics up to the 7th order for Current and up to the 3rd order for Voltage. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 37: 4: Utility Peak Demand

    2 Element Delta, 4 Wire Delta Input Impedance: 1M Ohm/Phase Burden: 0.36VA/Phase Max at 600 V, 0.0144 VA/Phase at 120 V Pickup Voltage: 10 VAC Connection: Screw terminal - #6 - 32 screws See Figure 4.1 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 38 Ratio Isolation All Inputs and Outputs are galvanically isolated and tested to 2500 VAC Environmental Rating Storage: (-20 to +60) Operating: (-20 to +60) Humidity: to 95% RH Non-condensing Faceplate Rating: NEMA 12 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 39 3.0, Modbus TCP (for Ethernet- enabled) Com Port Baud Rate: 9600 to 57600 b/s Com Port Address: 001-247 Data Format: 8 Bit, No Parity Wireless Ethernet (Optional) 802.11b Wireless or WiFi or RJ45 Connection 10/100BaseT Ethernet Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 40 Continuous load current: 120 mA Peak load current: 350 mA for 10 ms On resistance, max.: 35Ω Leakage current: 1µA@350 V Isolation: AC 3750 V Reset State: (NC - C) Closed; (NO - C) Open Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 41 3600 P[Watt] - Not a scaled value pulse Kh – See Section 7-4 for values Watt IR LED Light Pulses Through face plate 40ms 40ms (De-energized state) KYZ output Contact States Through Backplate Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 42: Compliance

    (0.15 to 5)A @ (69 to 480)V 0.2% of reading @ +/- (0.5 to 1) lag/lead PF Apparent Energy Total [VAh] 0.2% of reading (0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF Electro Industries/GaugeTech ™ E145721 2-10 Powered by Innovation™...
  • Page 43 20% of the values listed in the table. For unbalanced voltage inputs where at least one crosses the 150 V auto-scale threshold (for example, 120 V/120 V/208 V system), degrade accuracy by additional 0.4%. Electro Industries/GaugeTech ™ E145721 2-11 Powered by Innovation™...
  • Page 44 2: Meter Overview and Specifications This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 2-12 Powered by Innovation™...

  • Page 45: 3: Mechanical Installation

    3: Mechanical Installation 3: Mechanical Installation 3.1: Overview The Shark 100S meter can be installed on any wall. See Chapter 4 for wiring diagrams. Mount the meter in a dry location, which is free from dirt and corrosive substances. Recommended Tools for Shark 100S Installation •...

  • Page 46: Install The Base

    - by doing so, you may damage components on the board assembly. 3. Find the 4 Installation Slots and insert screws through each slot into the wall or panel. 4. Fasten securely - DO NOT overtighten. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 47: 1:Mounting Diagrams

    3: Mechanical Installation 3.2.1: Mounting Diagrams Figure 3.2: Mounting Plate Dimensions Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 48 3: Mechanical Installation Figure 3.3: Front Dimensions Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 49 3: Mechanical Installation Figure 3.4: Side Dimensions Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 50 3: Mechanical Installation 12”/ 30.4cm Figure 3.5: Open Cover Dimensions Figure 3.6: Bottom View with Access Holes Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 51: Secure The Cover

    (see figures 3.6 and 3.7). 4. Reattach the antenna, if applicable. Closed Screw Lockable Revenue Seal Figure 3.7: Submeter with Closed Cover Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 52 3: Mechanical Installation This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 53: 4: Electrical Installation

    NOTE: The current inputs are only to be connected to external current transformers pro- vided by the installer. The CT's shall be Approved or Certified and rated for the current of the meter used. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 54 Shark® 100S doit être enlevée du service. Un côté du transformateur de courant doit être mis à terre. Electro Industries/GaugeTech ™ E145721...
  • Page 55 UN INTERRUPTEUR OU UN DISJONCTEUR DEVRAIT ÊTRE INCLUS DANS L'UTILISATION FINALE DE L'ÉQUIPEMENT OU L'INSTALLATION. L'INTERRUPTEUR DOIT ÊTRE DANS UNE PROXIMITÉ PROCHE DE L'ÉQUIPEMENT ET A LA PORTÉE DE L'OPÉRATEUR. L'INTERRUPTEUR DOIT AVOIR LA MENTION DÉBRANCHEMENT DE L'APPAREIL POUR L'ÉQUIPEMENT. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 56: Electrical Connections

    Évitez le contact avec les surfaces sous tensions. Avant de faire un travail dans le compteur, assurez-vous d'éteindre l'alimentation et de mettre tous les circuits branchés hors tension. CAUTION! DO NOT over-torque screws. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 57: Ground Connections

    EIG requires the use of fuses on each of the sense voltages and on the control power. • Use a 0.1 Amp fuse on each Voltage input. • Use a 3 Amp fuse on the power supply. Electro Industries/GaugeTech ™ E145721...

  • Page 58: Electrical Connection Diagrams

    7. Three-Phase, Three-Wire Delta with 2 PTs, 2 CTs 8. Three-Phase, Three-Wire Delta with 2 PTs, 3 CTs 9. Current Only Measurement (Three Phase) 10. Current Only Measurement (Dual Phase) 11. Current Only Measurement (Single Phase) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 59 LINE Electronic Circuits Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 3 x 0.1A Power Supply Connection LOAD Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 60 4: Electrical Installation 1a. Dual Phase Hookup LINE Electronic Circuits Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 2x 0.1A Power Supply Connection LOAD Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 61 4: Electrical Installation 1b. Single Phase Hookup LINE Electronic Circuits Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSE 0.1A Power Supply Connection LOAD Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 62 Electronic Circuits Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 2 x 0.1A Power Supply Connection LOAD Select: "2.5 EL WYE" (2.5 Element Wye) in Meter Programming setup. Electro Industries/GaugeTech ™ E145721 4-10 Powered by Innovation™...
  • Page 63 Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 3 x 0.1A Power Supply Connection Earth Ground LOAD Select: "3 EL WYE" (3 Element Wye) in Meter Programming setup. Electro Industries/GaugeTech ™ E145721 4-11 Powered by Innovation™...
  • Page 64 Ia+ Ia- Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 2 x 0.1A Power Supply Connection Earth Ground LOAD Select: "2.5 EL WYE" (2.5 Element Wye) in Meter Programming setup. Electro Industries/GaugeTech ™ E145721 4-12 Powered by Innovation™...
  • Page 65 Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 3 x 0.1A Power Supply Connection LOAD Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup. Not Connected to Meter Electro Industries/GaugeTech ™ E145721 4-13 Powered by Innovation™...
  • Page 66 Ib+ Ib- Ic+ Ic- Shorting Block Earth Ground Vref FUSES 3 x 0.1A Power Supply Connection LOAD Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup. Not Connected to Meter Electro Industries/GaugeTech ™ E145721 4-14 Powered by Innovation™...
  • Page 67 Ic+ Ic- Shorting Block Earth Ground Vref FUSES 2 x 0.1A Power Supply Connection Earth Ground LOAD Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup. Not Connected to Meter Electro Industries/GaugeTech ™ E145721 4-15 Powered by Innovation™...
  • Page 68 Ic+ Ic- Shorting Block Earth Ground Vref FUSES 2 x 0.1A Power Supply Connection Earth Ground LOAD Select: "2 Ct dEL" (2 CT Delta) in Meter Programming setup. Not Connected to Meter Electro Industries/GaugeTech ™ E145721 4-16 Powered by Innovation™...
  • Page 69 NOTE: Even if the meter is used for only Amp readings, the unit requires a Volts AN reference. Please make sure that the Voltage input is attached to the meter. AC Control Power can be used to provide the reference signal. Electro Industries/GaugeTech ™ E145721 4-17 Powered by Innovation™...
  • Page 70 NOTE: Even if the meter is used for only Amp readings, the unit requires a Volts AN reference. Please make sure that the Voltage input is attached to the meter. AC Control Power can be used to provide the reference signal. Electro Industries/GaugeTech ™ E145721 4-18 Powered by Innovation™...
  • Page 71 NOTE: Even if the meter is used for only Amp readings, the unit requires a Volts AN reference. Please make sure that the Voltage input is attached to the meter. AC Control Power can be used to provide the reference signal. Electro Industries/GaugeTech ™ E145721 4-19 Powered by Innovation™...

  • Page 72: Extended Surge Protection For Substation Instrumentation

    See the wiring diagram below. L (+) FUSE L (+) N (-) FUSE N (-) BREAKER Substation Vref Instrumentatio EI-MSB10-400 EI-MSB10-400 Figure 4.2: Wiring Schematic for Extended Surge Suppression Suitable for Substation Instrumentation Electro Industries/GaugeTech ™ E145721 4-20 Powered by Innovation™...

  • Page 73: 5: Communication Installation

    IrDA-equipped laptop PC or a USB/IrDA wand (such as the USB to IrDA Adapter [CAB6490] described in Appendix E). IrDA port settings are Address: 1 Baud Rate: 57600 Baud Protocol: Modbus ASCII Figure 5.1: IrDA Communication Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 74: 1: Usb To Irda Adapter

    • 2 Gigabytes of RAM preferable • Available USB port • CD-ROM drive See Appendix E for instructions on using the USB to IrDA Adapter. You can order CAB6490 from EIG’s webstore: https://www.electroind.com/product/usb-to-irda- adapter-cab6490/. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 75: 2: Rs485 Communication Com 2 (485 Option)

    Avant de faire un travail dans le compteur, assurez- vous d'éteindre l'alimentation et de mettre tous les circuits branchés hors tension. NOTE: Care should be taken to connect + to + and - to - connections. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 76 ** The position of Jumper 2 (JP2) must be set for either RS485 or Ethernet communication. See the figure on the next page. You put the jumper on positions 2 and 3 for LAN (Ethernet) communication, and on 1 and 2 for RS485 communication. Electro Industries/GaugeTech ™ E145721...
  • Page 77 5: Communication Installation LAN/ RS485 Setting Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 78: 3: Kyz Output

    Avant de faire un travail dans le compteur, assurez- vous d'éteindre l'alimentation et de mettre tous les circuits branchés hors tension. See Section 2.2 for the KYZ output specifications; see Section 7.3.1 for pulse constants. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 79 Electronic Circuits Ia Ia Ib Ib Ic Ic (+) (-) (+) (-) (+) (-) RS-485 Z K Y + - SH Va Vb Vc Vn L1 L2 PE To Other Devices Pulse Contacts Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 80: 4: Ethernet Connection

    Évitez le contact avec les surfaces sous tensions. Avant de faire un travail dans le compteur, assurez- vous d'éteindre l'alimentation et de mettre tous les circuits branchés hors tension. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 81 Va Vb Vc Vn L1 L2 PE To Other Devices Refer to Chapter 6 for instructions on how to set up the Network Module. ** See the JP2 figure and instructions on page 5-5. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 82: Meter Communication And Programming Overview

    To provide power to the meter, use one of the wiring diagrams in Chapter 4 or attach an Aux cable to GND, L(+) and N(-). The RS485 cable attaches to SH, - and + as shown in Section 5.1.2. Electro Industries/GaugeTech ™ E145721 5-10 Powered by Innovation™...

  • Page 83: 1: How To Connect To The Submeter

    NOTE: You may have to disconnect power, reconnect power and then click Connect. 4. The Device Status screen opens, confirming a connection. Click OK. 5. The CommunicatorPQA Main screen opens. Click the Profile icon in the Icon Bar. Electro Industries/GaugeTech ™ E145721 5-11 Powered by Innovation™...
  • Page 84 7. Click the Communications tab. You will see the following screen. Use this screen to enter communication settings for the meter's two on-board ports: the IrDA port (COM 1) and RS485 port (COM 2) Make any necessary changes to settings. Electro Industries/GaugeTech ™ E145721 5-12 Powered by Innovation™...
  • Page 85 9. When changes are complete, click the Update Device button to send the new profile to the meter. 10. Click Exit to leave the Device Profile or click other menu items to change other aspects of the Device Profile (see following section for instructions). Electro Industries/GaugeTech ™ E145721 5-13...

  • Page 86: 2: Shark® 100S Submeter Device Profile Settings

    CT Denominator (Secondary): 5 or 1 Amp NOTE: This field is display only. CT Multiplier: 1, 10 or 100 Current Full Scale: Calculations based on selections. Click Recalculate to see the result of changes. Electro Industries/GaugeTech ™ E145721 5-14 Powered by Innovation™...
  • Page 87 800/5 Amps: Set the Ct-n value for 800, Ct-Multiplier value for 1 2,000/5 Amps: Set the Ct-n value for 2000, Ct-Multiplier value for 1 10,000/5 Amps: Set the Ct-n value for 1000, Ct-Multiplier value for 10 Electro Industries/GaugeTech ™ E145721 5-15 Powered by Innovation™...
  • Page 88 The settings on this screen determine the display configuration of the meter’s faceplate. The screen fields and acceptable entries are as follows: Power and Energy Format Power Scale: Unit, kilo (k), Mega (M), or auto. Electro Industries/GaugeTech ™ E145721 5-16 Powered by Innovation™...
  • Page 89 NOTE: If incorrect values are entered on this screen the following message appears: WARNING: Current, CT, PT and Energy Settings will cause invalid energy accumulator values. Change the settings until the message disappears. Electro Industries/GaugeTech ™ E145721 5-17 Powered by Innovation™...
  • Page 90 Enable Password for Reset: click to Enable. Enable Password for Configuration: click to Enable. Change Password: click to Change. Change VSwitch: click to Change (see Section 7.5 for instructions). Device Designation: optional user-assigned label. Electro Industries/GaugeTech ™ E145721 5-18 Powered by Innovation™...
  • Page 91 Example: 100% of 120VFS = 120V; 90% of 120V FS = 108V Return Hysteresis: Point to go back in Limit Example: High Set Point = 110% (Out of Limit at 132V);Return Hysteresis = 105%(Stay Out until 126V) Electro Industries/GaugeTech ™ E145721 5-19...
  • Page 92 Update Device to send the new Profile settings to the meter. NOTE: Refer to Chapter 9 of the CommunicatorPQA , MeterManagerPQA , and EnergyPQA.com Software User Manual for additional instructions on configuring the Shark® 100S submeter’s settings. Electro Industries/GaugeTech ™ E145721 5-20 Powered by Innovation™...

  • Page 93: 6: Ethernet Configuration

    Tous les circuits secondaires et primaires peu- Electro Industries/GaugeTech ™ E145721...

  • Page 94: Factory Default Settings

    Settings 2, 3, and 4 must be the same as shown in Section 6.2.1. If they are not, reset them to the values shown in Section 6.2.1. • If setting 3 is not CP0..! Defaults (In), the procedure for Network Module Hardware Initialization (Section 6.3.4) will not work. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 95: 1: Modbus/Tcp To Rtu Bridge Setup

    Slave Addr/Unit Id Source .. Modbus/TCP header Modbus Serial Broadcasts ...Disabled (Id=0 auto-mapped to 1) MB/TCP Exception Codes ..Yes (return 00AH and 00BH) Char, Message Timeout ..00050msec, 05000msec 6) WLAN Settings: WLAN......Disabled, network:LTRX_IBSS Topology......Adhoc, Country: US, Channel: 11 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 96: Configure Network Module

    Network Administrator. • If you have only one Ethernet adapter (network card), the screen displays only that configuration. You will use this Ethernet adapter to access the Shark® 100S Electro Industries/GaugeTech ™ E145721...

  • Page 97: 2: Configuring The Ethernet Adapter

    Panel>Network and Internet>Network and Sharing Center. You will see a screen showing your network connections. An example is shown below. Depend- ing on your Operating system, the screen you see may look a bit different. Electro Industries/GaugeTech ™ E145721...
  • Page 98 3. Select Internet Protocol [TCP/IP] from the middle of the screen and click the Properties button. You will see the screen shown on the next page. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 99 Enter 10.0.0.2 in the IP Address field. b. Enter 255.255.255.0 in the Subnet Mask field. 3. Click the OK button. 4. You can now close the Local Area Connection Properties and Network Connection windows. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 100: 3: Detailed Configuration Parameters

    3. In the Command Prompt window, type: telnet 10.0.0.1 9999 and press the Enter key. NOTE: Be sure to include a space between the IP address and 9999. You will see the following information. 4. Press Enter. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 101: 4: Setup Details

    Shark® 100S meter. You will only be able to access these settings if you have set Network Mode to “1” (to select Wireless mode) in the Network IP Settings Detail, shown previously.) Topology: 0=Infrastructure, 1=Ad-Hoc <1> ? 0 Network Name: EIG_SHARKS Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 102 Wired Equivalent Privacy portion of IEEE 802.11b/g. WEP Key Provider Steps 1. Input 26 alphanumeric characters as your Passphrase. IMPORTANT! Remember your Passphrase. PASSPHRASE TO HEXADECIMAL WEP KEYS Enter the passphrase below. 1009egbck001036ab Generate keys Electro Industries/GaugeTech ™ E145721 6-10 Powered by Innovation™...
  • Page 103 Max Failed Packets (6-64, 255=disable) <6>? 6 • If you select “2” (WPA), you will make the following settings: Change Key <N> Y Display Key <N> N Key Type 0=hex, 1=passphrase <0> 1 Electro Industries/GaugeTech ™ E145721 6-11 Powered by Innovation™...
  • Page 104 20 characters or more for maximum security.) Encryption: 0=CCMP, 1=CCMP+TKIP, 2=CCMP+WEP, 3=TKIP, 4=TKIP+WEP <3> ? (Set the type to the minimum required security level. The “+” sign indi- cates that the group (broadcast) encryption method is different from the pair- Electro Industries/GaugeTech ™ E145721 6-12...
  • Page 105 Port 77FEh to prevent users from accessing the setup from the network.) Enable Enhanced Password <N> ? N Exiting the screen CAUTION! DO NOT PRESS 'D': that will restore the Default Settings. Press 'S' to Save the settings you've entered. Electro Industries/GaugeTech ™ E145721 6-13 Powered by Innovation™...

  • Page 106: Network Module Hardware Initialization

    AVERTISSEMENT! Pendant le fonctionnement normal du compteur Shark® 100S des tensions dangereuses suivant de nombreuses pièces, notamment, les bornes et Electro Industries/GaugeTech ™ E145721 6-14...
  • Page 107 2. After you press the Reset button, move the jumper back to JP2. 3. Make sure your settings are the same as those in Section 6.2.1. Follow the steps in Section 6.3 to configure the Network Module. Electro Industries/GaugeTech ™ E145721 6-15 Powered by Innovation™...
  • Page 108 6: Ethernet Configuration This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 6-16 Powered by Innovation™...

  • Page 109: 7: Using The Submeter

    • Watt-Hour Test Pulse: Energy pulse output to test accuracy • Scaling Factor: Kilo or Mega multiplier of displayed readings • % of Load Bar: Graphic Display of Amps as % of the Load (Refer to Section 7.3 for additional information.) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 110: 2: Understanding Submeter Face Buttons

    • Configure Parameters (may be Password Protected) • Perform Resets (may be Password Protected) • Perform LED Checks • Change Settings • View Parameter Values • Scroll Parameter Values • View Limit States (V-4) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 111: Using The Front Panel

    The Kilo or Mega LED lights, showing the scale for the Wh, VARh and VAh readings. Figure 7.3 shows an example of a Wh reading. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 112: 2: Using The Main Menu

    MENU ENTER MENU ENTER MENU ENTER For example: Press Down Once - CFG moves to A window. Press Down Once - OPr moves to A window. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 113: 3: Using Reset Mode

    (see Chapter 6 for information on Password protection). To enter a password, follow the instructions in Section 6.2.4. MENU ENTER 2. Once you have performed a reset, the screen displays “rSt ALL donE” and then resumes auto-scrolling parameters. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 114: 4: Entering A Password

    • If you enter an incorrect password, “PASS ---- FAIL” MENU ENTER appears and: • The previous screen is re-displayed, if you are in Reset Mode. • The previous Operating mode screen is re-dis- played, if you are in Configuration mode. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 115: 5: Using Configuration Mode

    Parameter you want is in A window 6. The parameter screen appears, showing the current settings. To change the settings: • Use either the Down button or the Right button to select an option. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 116 ENTER MENU ENTER Press the Enter button to save Press the Enter button to The settings have been the settings. Press the Right Cancel the Save. saved. button for Stor All no screen. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 117: 1: Configuring The Scroll Feature

    • To exit the screen without changing scrolling options, press the Menu button. • To return to the Main Menu screen, press the Menu button twice. • To return to the scrolling (or non-scrolling) parameters display, press the Menu button three times. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 118: 2: Configuring Ct Setting

    3. The Store ALL YES screen appears. Press Enter to save the new CT setting. Example CT Settings: 200/5 Amps: Set the Ct-n value for 200 and the Ct-S value for 1. 800/5 Amps: Set the Ct-n value for 800 and the Ct-S value for 1. Electro Industries/GaugeTech ™ E145721 7-10...

  • Page 119: 3: Configuring Pt Setting

    To change the value for the PT numerator or denominator: From the Pt-n or Pt-d screen: • Use the Down button to select the number value for a digit. • Use the Right button to move to the next digit. Electro Industries/GaugeTech ™ E145721 7-11...
  • Page 120 NOTE: Pt-n and Pt-S are dictated by primary voltage; Pt-d is secondary voltage. MENU ENTER MENU ENTER MENU ENTER Use buttons to set Pt-n Use buttons to set Pt-d Use buttons to select scaling Electro Industries/GaugeTech ™ E145721 7-12 Powered by Innovation™...

  • Page 121: 4: Configuring Connection Setting

    • Enter the address. • Access one of the other Port screens by pressing the Enter button: press Enter once to access the bAUd screen (Baud Rate), twice to access the Prot screen (Protocol). Electro Industries/GaugeTech ™ E145721 7-13 Powered by Innovation™...
  • Page 122 3. The STOR ALL YES screen appears. Press Enter to save the settings. MENU ENTER MENU ENTER MENU ENTER Use buttons to enter Address Use buttons to select Baud Rate Use buttons to select Protocol Electro Industries/GaugeTech ™ E145721 7-14 Powered by Innovation™...

  • Page 123: 6: Using Operating Mode

    AMPS AMPS AMPS_- AMPS_MAX AMPS_MIN AMPS_THD NEUTRAL W/VAR/PF W_VAR_PF W_VAR_P- W_VAR_P- W_VAR_P- F_MAX_- F_MIN_POS F_MIN_NE VA/Hz VA_FREQ VA_FREQ_- VA_FRE- Q_MIN KWH_REC KWH_DEL KWH_NET KWH_TOT VARh KVARH_- KVAR- KVAR- KVARH_- H_NEG H_NET KVAH Electro Industries/GaugeTech ™ E145721 7-15 Powered by Innovation™...

  • Page 124: Understanding The % Of Load Bar

    Load >= % Full Load none no load 108% 1-10 120% All Blink >120% MENU ENTER VOLTS L-N VOLTS L-N AMPS W/VAR/PF %THD VA/Hz VARh IrDA 120%- 90%- 60%- Wh Pulse 30%- KILO MEGA %LOAD Electro Industries/GaugeTech ™ E145721 7-16 Powered by Innovation™...

  • Page 125: Performing Watt-Hour Accuracy Testing (Verification)

    ENTER VOLTS L-N VOLTS L-N AMPS W/VAR/PF %THD VA/Hz 0000 VARh IrDA 0.659 120%- Watt Hour 90%- Test Pulse 60%- Wh Pulse 30%- KILO MEGA %LOAD Figure 7.4: Watt Hour Test Pulse Electro Industries/GaugeTech ™ E145721 7-17 Powered by Innovation™...
  • Page 126 Standard's internal pulse. You must program the test pulse value (Kh) into the Standard for the results to be accurate. Electro Industries/GaugeTech ™ E145721 7-18 Powered by Innovation™...
  • Page 127 11. Repeat steps 5 through 10 until all test pulses are checked. 12. De-energize all circuits and remove power from the Standard, sources, and the Shark® 100S meter. 13. Disconnect all connections from the Shark® 100S meter. Electro Industries/GaugeTech ™ E145721 7-19...

  • Page 128: Upgrade The Submeter Using V-Switch

    2. Set up the Shark® 100S submeter to communicate with your computer (see Chapter 5); power up your submeter. 3. Log on to CommunicatorPQA software. 4. From the Main screen, click Tools>Change V-Switch. You will see the screen shown on the next page. Electro Industries/GaugeTech ™ E145721 7-20 Powered by Innovation™...
  • Page 129 6. Click OK. The V-Switch key is changed and the submeter resets. NOTE: For more details on software configuration, refer to the Communica- torPQA , MeterManagerPQA , and EnergyPQA.com Software User Manual. Electro Industries/GaugeTech ™ E145721 7-21 Powered by Innovation™...
  • Page 130 7: Using the Submeter This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 7-22 Powered by Innovation™...

  • Page 131: A: Shark® 100S Meter Navigation Maps

    Operating mode after 10 minutes with no user activity. Shark® 100S meter Navigation map titles • Main Menu Screens (Sheet 1) • Operating mode screens (Sheet 2) • Reset mode screens (Sheet 3) • Configuration mode screens (Sheet 4) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 132 A digit or legend is blinking to indicate that it is eligible for change. When a digit is blinking, down increases the digit value, right moves to the next digit. When a legend is blinking, either button advances to the next choice legend. all screens single group of for a display action taken button screen screens mode Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 133 3. No Volts_LN screens for Delta 2 CT hookup. 4. Scrolling is suspended for 3 minutes after any button press. 5. AMPS_NEUTRAL appears for WYE hookups. MENU to Main Menu (from any (see Main Menu operating mode for overview) screen) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 134 & is password PASS min values correct? #### FAIL RESET_CONFIRM: DONE 2 sec. MENU (from any to previous operating reset mode mode screen screen) see sheet 2 to Main Menu see sheet 1 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 135 DONE correct? to the originating EDIT screen 2 sec. SAVE_NO: reboot to Main Menu STOR MENU to previous operating ALL? mode screen see sheet 1 ENTER no (blinking) see sheet 2 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 136 A: Shark® 100-S Meter Navigation Maps This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 137: B: Shark® 100S Meter Modbus Map

    B.3: Data Formats ASCII: ASCII characters packed 2 per register in high, low order and without any termination characters. SINT16/UINT16: 16-bit signed/unsigned integer. SINT32/UINT32: 32-bit signed/unsigned integer spanning 2 registers. The lower-addressed register is the Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 138: B.4: Floating Point Values

    0x089 + 137 0b011000010001110110111001 Formula Explanation: C4E11DB9 (hex) 11000100 11100001 00011101 10111001 (binary) The sign of the mantissa (and therefore the number) is 1, which represents a nega- tive value. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 139: B.5: Modbus Register Map

    • Exponent = the whole number before the decimal point. • Mantissa = the positive fraction after the decimal point. B.5: Modbus Register Map The Shark® 100S meter's Modbus register map begins on the following page. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 140 B: Shark® 100-S Meter Modbus Map This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 141 -1.00 to +1.00 none 0401 - 0402 1026 - 1027 Frequency FLOAT 0 to 65.00 0403 - 0404 1028 - 1029 Neutral Current FLOAT 0 to 9999 M amps Block Size: Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-1...
  • Page 142 3026 - 3027 VAs, 3-Ph, Minimum Avg Demand FLOAT -9999 M to +9999 M none 0BD3 - 0BD4 3028 - 3029 Positive Power Factor, 3-Ph, Minimum Avg Demand FLOAT -1.00 to +1.00 Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-2...
  • Page 143 Phase A Current 0th to 7th harmonic magnitudes 0FC5 - 0FC8 4038 - 4041 Phase C Voltage harmonic magnitudes same as Phase A Voltage 0th to 3rd harmonic magnitudes Block Size: Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-3...
  • Page 144 55F3 - 55F3 22004 - 22004 Write New Password UINT16 0000 to 9999 write-only register; always reads zero 59D7 - 59D7 23000 - 23000 Initiate Meter Firmware Reprogramming UINT16 password Block Size: Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-4...
  • Page 145 UINT16 bit-mapped 00000000 eeeeeeee eeeeeeee = op mode screen rows on(1) or off(0), rows top to bottom are bits low order to high order 7537 - 753D 30008 - 30014 Reserved Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-5...
  • Page 146 755F - 7563 30048 - 30052 Limit #5 SINT16 7564 - 7568 30053 - 30057 Limit #6 SINT16 7569 - 756D 30058 - 30062 Limit #7 SINT16 756E - 7572 30063 - 30067 Limit #8 SINT16 Block Size: Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-6...
  • Page 147 Amps A/B/C above 9C60 - 9CA2 40033 - 40099 Reserved none 9CA3 - 9CA3 40100 - 40100 Reset Energy Accumulators UINT16 write-only register; always reads as 0 password Block Size: End of Map Electro Industries/GaugeTech ™ Powered by Innovation™ Doc# E145721 MM-7...
  • Page 148 A and C phase current angles are measured for all hookups. B phase current angle is measured for Wye and is zero for other hookups. If a voltage phase is missing, its current angle is zero. Electro Industries/GaugeTech ™...

  • Page 149: C: Shark® 100S Meter Dnp Map

    C.2: DNP Mapping (DNP-1 to DNP-2) The Shark® 100S DNP Point Map follows. Binary Output States, Control Relay Outputs, Binary Counters (Primary) and Analog Inputs are described on page DNP-1. Internal Indication is described on page DNP-2. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 150 C: Shark® 100-S Meter DNP Map This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 151 0 to 32767 (10 / 32768) Values above 10A secondary read 32767. 5 Amps B SINT16 0 to 32767 (10 / 32768) 5 Amps C SINT16 0 to 32767 (10 / 32768) Electro Industries/GaugeTech ™ Doc# E145721 DNP-1 Powered by Innovation™...
  • Page 152 (10 / 32768) For 1A model, multiplier is (2 / 32768) and values above 2A secondary read 32767. Internal Indication 1 Device Restart Bit none Clear via Function 2 (Write), Qualifier Code Electro Industries/GaugeTech ™ Doc# E145721 DNP-2 Powered by Innovation™...

  • Page 153: D: Dnp3 Protocol Assignments

    (see Chapter 5). Communication Parameters Shark® 100S meters communicate in DNP3 using the following communication settings: • 8 Data Bits • No Parity • 1 Stop Bit • Baud Rates: 9600, 19200, 38400, 57600 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 154: D.2: Data Link Layer

    After receiving a request for UNCONFIRMED USER DATA, if a response is required, it is sent as UNCONFIRMED USER DATA. Address DNP3 allows for addresses from 0 - 65534 (0x0000 - 0xFFFE) for individual device identification, with the address 65535 (0xFFFF) defined as an all stations address. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 155: D.3: Transport Layer

    The following Function codes are implemented on Shark® 100S meters. Read (Function 1) Objects supporting the READ function are: • Binary Outputs (Object 10) • Counters (Object 20) • Analog Inputs (Object 30) Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 156: D.4.1: Object And Variation

    The following Objects (Obj.) and Variations (Var.) are supported by Shark® 100S meters: • Binary Output Status (Object 10, Variation 2) † • Control Relay Output Block (Object 12, Variation 1) • 32-Bit Binary Counter Without Flag (Object 20, Variation 5) † Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 157: D.4.1.1: Binary Output Status (Obj. 10, Var. 2

    Device Profile of the meter (this does not change the meter’s Protocol setting). A meter reset brings communication back to DNP. A status reading of "1" equals Open, or de-energized. A reading of "0" equals Closed, or energized. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

  • Page 158: D.4.1.2: Control Relay Output Block (Obj. 12, Var. 1

    Use of the DIRECT OPERATE (Function 5) function will operate only with the settings of Pulsed ON (Code = 1 of Control Code Field) once (Count = 0x01) for ON 1 millisecond and OFF 0 milliseconds. Electro Industries/GaugeTech ™ E145721...

  • Page 159: D.4.1.3: 32-Bit Binary Counter Without Flag (Obj. 20, Var. 5

    A READ request for Variation 0 is responded to with Variation 4. Analog Inputs are used to communicate the following data measured by Shark® 100S meters: • Health Check • Phase-to-Neutral Voltage • Phase-to-Phase Voltage Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 160 The Health Check point is used to indicate problems detected by the Shark® 100S meter. A value of zero (0x0000) indicates the meter does not detect a problem. Non- zero values indicate a detected anomaly. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 161 These points are formatted as 2's complement fractions. They represent a fraction of a 10A Secondary input. Inputs of above 10A Secondary are pinned at 10A Secondary. Total Power (Points 10 - 11) Point Reading Total Watt Total VAR Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 162 This point is formatted as a 2's complement fraction. It represents the Frequency as measured on Phase A Voltage in units of cHz (centiHertz, 1/100 Hz). Inputs below 45.00 Hz are pinned at 0 (0x0000); inputs above 75.00 Hz are pinned at 9999 (0x270F). Electro Industries/GaugeTech ™ E145721 D-10...
  • Page 163 180.00 (0x0F8F8) to +180.00 (0x00708). CT & PT Ratios (Points 26 - 31) Point Reading CT Ratio Numerator CT Ratio Multiplier CT Ratio Denominator PT Ratio Numerator PT Ratio Multiplier PT Ratio Denominator Electro Industries/GaugeTech ™ E145721 D-11 Powered by Innovation™...
  • Page 164 69 Volts (Reads 138,000 Volts): Pt-n value is 1380, Pt-d value is 69, Pt-S value is 100. 115 Volts (Reads 347,000 Volts): Pt-n value is 3470, Pt-d value is 115, Pt-S value is 100. 69 Volts (Reads 347,000 Volts): Pt-n value is 347, Pt-d value is 69, Pt-S value is 1000. Electro Industries/GaugeTech ™ E145721 D-12...

  • Page 165: D.4.1.5: Class 0 Data (Obj. 60, Var. 1

    Internal Indications may be indexed by Qualifier Code 0. Device Restart (Point 0) This bit is set whenever the meter resets. The polling device may clear this bit by Writing (Function 2) to Object 80, Point 0. Electro Industries/GaugeTech ™ E145721 D-13...
  • Page 166 D: DNP3 Protocol Assignments This page intentionally left blank. Electro Industries/GaugeTech ™ E145721 D-14 Powered by Innovation™...

  • Page 167: E: Using The Usb To Irda Adapter Cab6490

    Adapter. Click the Radio Button next to Install from a list or specific location. 4. Click Next. You will see the screen shown on the next page. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 168 Installation disk to your PC. 6. Click Next. You will see the screen shown below. 7. When the driver for the Adapter is found, you will see the screen shown on the next page. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 169 8. You do not need to be concerned about the message on the bottom of the screen. Click Next to continue with the installation. 9. You will see the two windows shown below. Click Continue Anyway. Electro Industries/GaugeTech ™ E145721...
  • Page 170 11.When driver installation is complete, you will see the screen shown below. 12.Click Finish to close the Found New Hardware Wizard. IMPORTANT! Do NOT remove the Installation CD until the entire procedure has been completed. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 171 15.Click Next. You will see the screen shown below. 16.Make sure the first Radio Button and the first Checkbox are selected, as shown above screen. Click Next. You will see the two screens shown on the next page. Electro Industries/GaugeTech ™ E145721...
  • Page 172 E: Using the USB to IrDA Adapter CAB6490 Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 173 Panel>System>Hardware>Device Manager. The USB to IrDA Adapter should appear under both Infrared Devices and Modems (click on the + sign to display all configured modems). See the example screen on the next page. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...
  • Page 174 22.Use this Com Port to connect to the meter from your PC, using the Communica- torPQA software. Refer to Chapter 3 of the CommunicatorPQA , MeterManager- , and EnergyPQA.com Software User Manual for detailed connection instructions. Electro Industries/GaugeTech ™ E145721 Powered by Innovation™...

Table of Contents
