MFJ Enterprises MFJ-4716 Instruction Manual

MFJ-4716 Desktop/Remote Antenna Switch
Desktop/Remote Six-Position Antenna Switch

INTRODUCTION

The MFJ-4716 is a versatile multiple antenna switch designed to switch up to six
50-ohm antenna systems. It handles high power, up to 1500 Watts and sealed
relays offer excellent life and connection reliability. The unit is operational from
1-60 MHz and useable to 150 MHz. See Table 1 for the best antenna connection
for your particular frequency.
The MFJ-4716 Desktop/Remote Antenna Switch uses a simple rotary switch to
select one-of-six antennas and connects those ports directly to a single common
port for a feedline. Use the MFJ-4716 Desktop/Remote Antenna Switch on your
desk or place it out-of-way under your desk or in another room and use a remote
control. In the OFF/Remote position, all inputs are grounded or control is

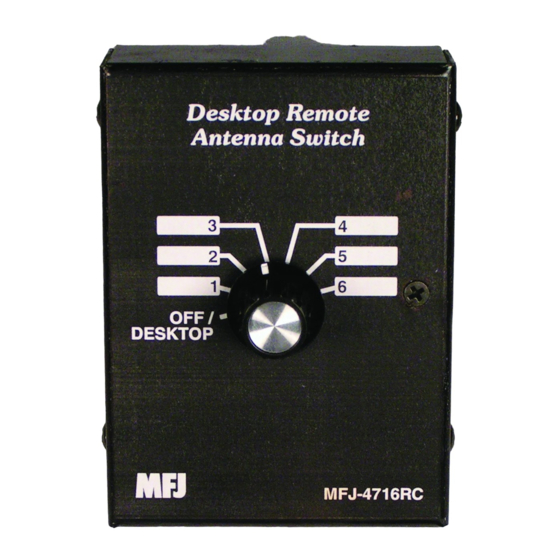

transferred to the MFJ-4716RC Remote Control. All unused inputs are grounded.
You can connect a sense line to your transceiver so when it's off all inputs are
automatically grounded.
The MFJ-4716 will work well in nearly any system requiring switching of coaxial
lines, especially those requiring good quality 50-ohm RF switches. Any switch
port can be used as either an input or output, so you can select one-of-six radios
to one feedline or one-of-six antennas to a radio.

MFJ-4716 Desktop/Remote Antenna Switch Features

• High Power Capability: Handles 1500 Watts/50-75 Ohm load.
• Wide Frequency Range: 1-60 MHz. Useable to 150 MHz.
• Easy-to-Use: A simple rotary switch allows you to select one-of-six
antennas.
• Versatile: Use on your desk or place it out-of-way under your desk or in
another room and use a Remote Control.
• Lightening Protection: Ultra-fast gas discharge tube lightning surge
protector protects transceiver and safely shunts static electricity and
lightning induced surges safely to ground. All unused inputs are grounded.
Does not protect against a direct lightening hit.
• Radio Sense: You can connect a sense line to the 12VDC accessory jack
on your transceiver so when it's off all inputs are automatically grounded.
• Standard Connectors: Uses SO-239 connectors.
