Qty Item

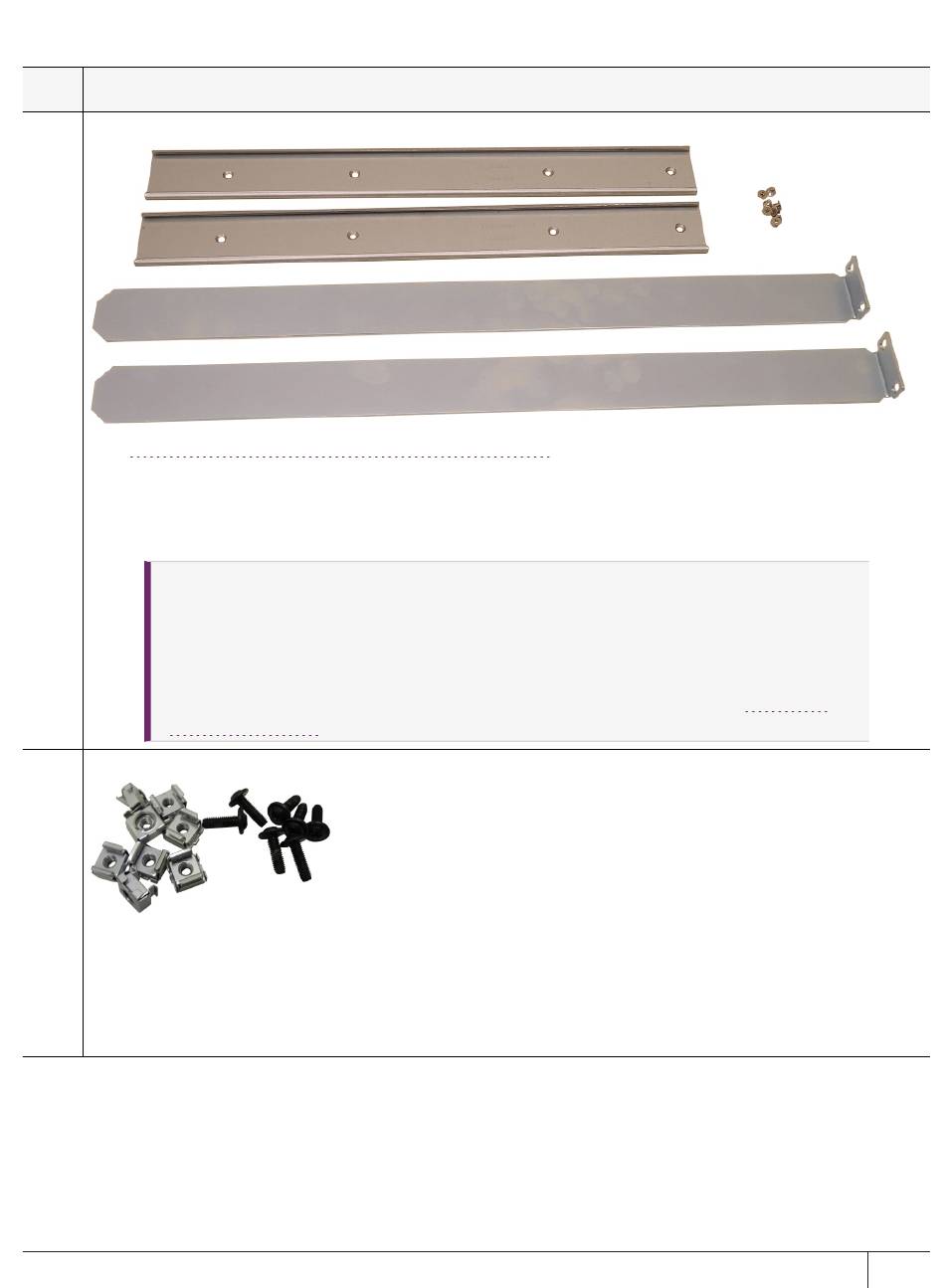

Friction Rail Mounting Bracket Set
1
"Using the Supplied Mounting Brackets" on page 13
See
> (2) side rails
> (8) side rail screws
> (2) sliding rear brackets (fit into the rails for rear support adjustable positioning)
CAUTION!
appliance. The long tab that slides into the bracket, applied to each side of the appliance, is
adjustable for fitting the appliance into racks of varying depth - it must not be used to extend
the appliance out of the rack.
Optional gliding rails with rolling bearings are available for situations where rolling excursion
of the appliance, while attached to the rack, is required for maintenance. See
Items" on page 11
Friction Rail Rack Mounting Screws/Cage Nuts
1
Set includes:
> (8) M5 cage nuts
> (8) M5x14 rack screws
If you did not receive this set, you can request one from Thales Group (part number: 216-000035-001) or obtain
your own suitable screws/nuts.
