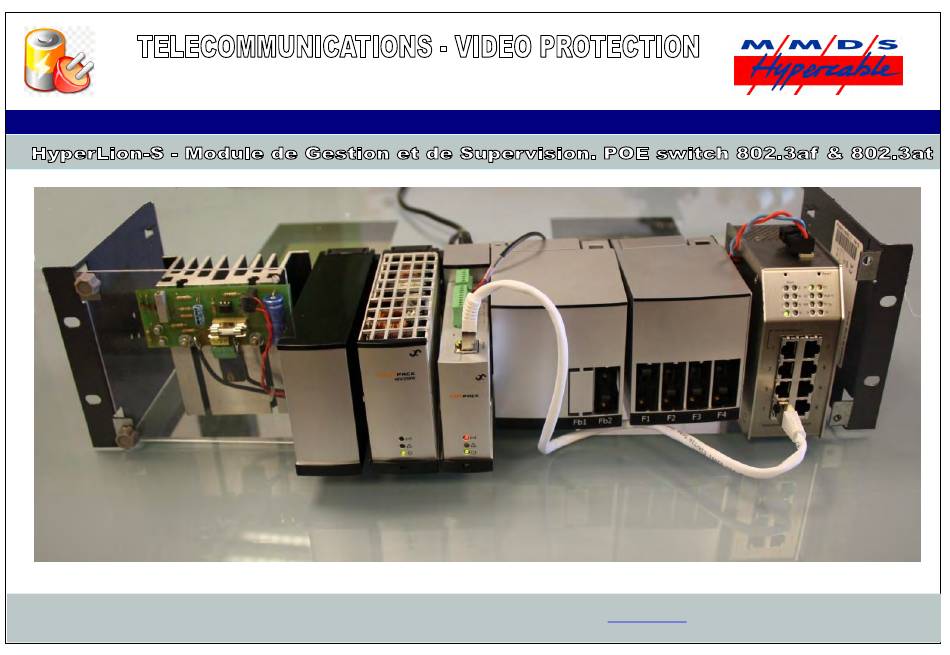

Centrales d'énergie Supervisées & Sécurisées
Redresseur 250 W
Contacteur LVBD
4 départs 49 V
Régulation 49 Volts
Module
Switch Niv.2 +
réserve pour 2ème
& disjoncteur
disjoncteurs
10 Ampères
supervision
industriel durci
module de 250 W
Batteries
2 à 30 A
HPOE 802.3at
LVBD
M/M/D/S Hypercable
®
S.A.R.L. - 81 rue des Carrières - ZA La Ronze 69440 - Taluyers - France
1
TEL: + 33 4 78 48 74 75 - Cell: +33 6 82 82 44 73 - Mail:
info@hypercable.fr
- Web:
www.hypercable.fr
Hypercable
® The Wireless Broadband ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compack and is the answer not in the manual?

Questions and answers

Summary of Contents for Hypercable Compack

  • Page 1 2 à 30 A HPOE 802.3at LVBD M/M/D/S Hypercable ® S.A.R.L. - 81 rue des Carrières - ZA La Ronze 69440 - Taluyers - France TEL: + 33 4 78 48 74 75 - Cell: +33 6 82 82 44 73 - Mail: info@hypercable.fr...
  • Page 2 Monitoring and Control Units Micropack DC Power Supply Systems 350011.013...
  • Page 3 Safety Precautions   The equipment described in this manual must only be operated by Hypercable personnel or by persons who have attended a suitable Hypercable training course   The equipment represents an energy hazard and failure to observe this could cause terminal injury and invalidate our warranty ...

  • Page 4: Table Of Contents

    LED indicators ........................10 Mounting and Removing the Controller ..............12 Technical Specifications – Controllers ...............13 Firmware Upgrade of the Compack Controller ............15 3. Networking the Compack Controller Compack Controller’s Default Networking Data .............16 Controller Access — Via Ethernet LAN ..............……16...
  • Page 5 How Tos .........................24 How To Enable Pop-ups in the browser — Internet Explorer ........24 How To Change Default Log In Passwords — Compack GUI .........25 How To Change the Compack Controller’s Device Name ..........27 How To Check the Status of your LAN Network Card (NIC) ..........28 4.
  • Page 6 Monitoring — via Network Management System ..........37 Requirements .......................37 In Short .........................37 More Detailed — Controller SNMP Configuration ............44 About Eltek Valere’s SNMP MIB Files ................40 Example — NMS Configuration ..................41 5. Appendix About Control Units ....................43 CAN bus ........................43 CAN bus Addressing .....................43 Software Assignment —...

  • Page 7: Introduction

    1. Introduction The Compack controller is a powerful and cost-effective module, developed for monitoring and controlling Eltek Valere’s Micropack DC power supply systems, which are DIN rail mounted and suitable in low power applications. The controller is also used in larger Eltek Valere’s Compack-based power systems.

  • Page 8: The Compack Controller

    2. The Compack Controller The Compack controller is a DIN rail mounted monitoring and control unit used in the Eltek Valere’s Micropack DC power systems. The controller is also used in larger Eltek Valere’s Compack-based power systems. It monitors and controls the whole system, and implements several network protocols for local and remote system configuration via Web browser and existing network management system (NMS).

  • Page 9: Block Diagram

    Block Diagram Figure 2 Block diagram of the Compack controller showing the module’s main functions...

  • Page 10: Location Of Terminals, Ethernet Port And Leds

    Location of Terminals, Ethernet Port and LEDs You can easily connect the Compack controller to an Ethernet networked computer, plugging a standard Ethernet cable to the RJ-45 socket on top of the controller and to any available Ethernet socket on the network.

  • Page 11: Led Indicators

    The Compack controller’s I/O cables are connected to pluggable terminal blocks located on the controller’s top. These connections are used for monitoring and controlling the status of external equipment, using configurable inputs and voltage-free alarm relays contacts. LED indicators The Compack controller has the following LED indications: ...

  • Page 12: Mounting And Removing The Controller

    Mounting and Removing the Controller Get acquantied with the satety precautions on page 2, before installing or handling the equipment. The Compack controller incorporates a handle that serves to lock the module into position in the Micropack PS System. Mounting the Compack controller 1.

  • Page 13: Technical Specifications - Controllers

    Technical Specifications – Controllers...

  • Page 15: Firmware Upgrade Of The Compack Controller

    (marked) the “Reboot when complete” check box 6. Click the “Update” button the utility will download and update the firmware to the Compack controller with the selected IP address checked (marked). You can visit www.eltekvalere.com...

  • Page 16: Networking The Compack Controller

    Controller Access — Via Ethernet LAN If you have access to a Local Area Network (LAN) — based on the Ethernet communication technique and the TCP/IP protocol suite — you can simply connect the Compack controller to the LAN, and get Web browser access to the controller from your networked computer.

  • Page 17: More Detailed

    LAN. 2. Connect the Compack controller to the LAN plugging one end of a standard Ethernet cable (straight through Ethernet cable) to the controller’s RJ-45 socket on its top, and the other end to one of the LAN’s available RJ-45 sockets. See “Figure 8”, page 16. The controller automatically obtains an IP address from the LAN server, as the controller’s DHCP protocol is enabled from factory.
  • Page 18 3. Identify the controller in the “Eltek Valere Network Utility” program by looking for your Compack controller’s MAC address on the list of connected LAN devices. All controllers are shipped with a label specifying its unique MAC address. Check that the displayed MAC address corresponds to the MAC address label on the controller Note that it can take up to 1 minute before the connected controller is displayed in the utility program.

  • Page 19: Controller Access - Via Stand-Alone Pc

    Valere Network Utility window will display the new device name. Controller Access — Via Stand-alone PC If a Local Area Network (LAN) is not available, you can also access the Compack controller directly from a stand-alone computer. For acronym descriptions, refer to chapter “Glossary”, page Requirements ...

  • Page 20: In Short

    In Short To get access to the Compack controller via a stand-alone computer, just connect the controller directly to the computer’s NIC, using a standard Ethernet straight-through or crossover cable. The controller and the computer will assign themselves a random IP address. E.g. the controller may get <0.0.0.1> and the computer <169.254.52.132>.
  • Page 21 2. Connect the computer to the Compack controller and check its MAC address plugging one end of the Ethernet cable to the controller’s RJ-45 socket on its top, and the other end to the computer’s NIC. The controller automatically generates an IP address, e.g. <0.0.0.1>, and the Eltek Valere Network Utility displays the controller as a connected LAN device (may take up to 1 minute to display).
  • Page 22 4. Change the controller’s IP address to the same range as the computer’s by, — Selecting the controller in the Eltek Valere Network Utility window — Clicking on the Configuration button, to open the “IPSetup Configuration” window — Changing the IP address from, e.g. <0.0.0.1> to e.g. <169.254.52.133> — Changing the Network Mask from, e.g.
  • Page 23 Device Name field and entering the Device Name that describes your power system, e.g. “Micropack System, EV Engine Room, Oslo” Read chapter “How To Change the Compack Controller’s Device Name”, page 23. Now the Eltek Valere Network Utility window will display the new device name.

  • Page 24: How Tos

    This chapter describes the steps required to perform certain useful tasks, such as:  How To Enable Pop-ups in the browser — Internet Explorer  How To Change Default Log In Passwords — Compack GUI  How To Change the Compack Controller’s Device Name ...

  • Page 25: How To Change Default Log In Passwords - Compack Gui

    How To Change Default Log In Passwords — Compack GUI To view the Compack controller’s configuration pages (GUI) in your Web browser, you have to log in using one of the following default, factory set accounts: For security reasons, it is advisable to log in with the “admin” account (case sensitive) and change the default passwords with the passwords of your choice.
  • Page 26 3. Change the passwords by, — Clicking on the “System Configuration” button, on the Power Explorer toolbar — Clicking on the “Password” tab, in the dialog box — Selecting the Access Level for the account’s password you want to change; e.g. the “status”...

  • Page 27: How To Change The Compack Controller's Device Name

    How To Change the Compack Controller’s Device Name In order to facilitate identification of the Compack-based power system when connected a LAN, it is advisable to log in with the “admin” account and give the Compack controller a Device name of your choice. For acronym descriptions, refer to chapter “Glossary”, page Carry out the following steps to give a Device name to the controller, using the Compack controller’s configuration pages in your Web browser:...

  • Page 28: How To Check The Status Of Your Lan Network Card (Nic)

    How To Check the Status of your LAN Network Card (NIC) This chapter describes how to check your NIC’s IP address, when the computer is running the MS Windows operating system. You can always check the IP address, subnet mask, status, etc. of your personal computer’s network card (NIC), by opening the “Network Connections” window and looking at the Detail pane on the left side of the window.
  • Page 29 2. Find the NIC’s IP address and subnet mask used by the computer by,— — Selecting the actual network card (NIC), e.g. “Local Area Connection 3” — Making a note of the IP address and Subnet mask displayed in the Details panel, on the left side of the window. E.g. IP address: <172.16.5.192>, Subnet mask: <255.255.252.0>...

  • Page 30: Configuring & Monitoring The Power System

    Controller”, on page 16. For acronym descriptions, refer to chapter “Glossary”, page You can configure and monitor the Compack-based DC power supply system from a computer — connected to a LAN or directly connected to the controller — using the following methods: ...

  • Page 31: Configuration - Via Web Browser

    Configuration — via Web Browser You can configure and monitor the Compack-based DC power supply system from a computer — connected to a LAN or directly connected to the controller — using a standard Web browser to access the configuration pages stored in the Compack controller.

  • Page 32: Configuration - Via Powersuite Application

    The PowerSuite application is originally developed for USB serial connection between the computer and the controller, using the pComm protocol. When the controller is not equipped with an USB serial port — as is the case with the Compack controller — you can still use the PowerSuite application via an Ethernet...

  • Page 33: In Short

    The “Configuration — via PowerSuite Application” procedure involves following steps (as described in more detail in the next chapter): Start the “Eltek Valere Network Utility” program Connect the Compack controller to the LAN Identify the controller in the “Eltek Valere Network Utility” program Start the PowerSuite application in your computer (connected to the LAN) In PowerSuite’s Site Manager, create a new Network site for the controller...
  • Page 34 3. Identify the controller in the “Eltek Valere Network Utility” program by looking for your Compack controller’s MAC address on the list of connected LAN devices. All controllers are shipped with a label specifying its unique MAC address. Check that the displayed MAC address corresponds to the MAC address label on the controller Notice that it can take up to 1 minute before the connected controller is displayed in the utility program.
  • Page 35 — Click on the “Connect” button, on the Site Manager dialog box PowerSuite will then connect to the Compack controller on the LAN with IP address “172.16.5.75”. You can any time click on the dialog box’s Help button for additional...
  • Page 36 The set of communication parameters will be saved with the name you entered in the “Description” field, e.g.:“Micropack System, EV Engine Room, Oslo”. Next time you want to connect with this site (Compack controller), click on the “Connect” button on the toolbar, select the Site Name in the Site Manager tree and click on the dialog...

  • Page 37: Monitoring - Via Network Management System

    Monitoring — via Network Management System You can remote monitor the Compack-based DC power supply system from a computer connected to an Ethernet LAN which has installed a Network Management System (NMS). The NMS hardware and software must be previously installed in the LAN network.
  • Page 38 2. Log in with the <admin> account, by clicking on the “Enter” link — in the Web browser, in the middle of the page — and entering <admin> as user name and <admin> as password. (case sensitive) Refer also to the log in procedure in chapter “How To Change Default Log In Passwords — Compack GUI”, page 25. Note that the Web browser must have the Pop-ups function enabled, as the configuration web pages employs Java script navigation.
  • Page 39 “NMS Trap Receiver IP Address” fields: Enter the NMS IP addresses of up to 10 TRAP hosts. When critical situations occur in the power system, the Compack controller’s SNMP agent can unsolicited send alarm messages to up to 10 different NMS IP addresses (TRAP hosts or managers).

  • Page 40: About Eltek Valere's Snmp Mib Files

    Community Strings or passwords can be max 19 characters long. Valid characters are A-Z, a-z, 0-9 and special characters ~@#%^&_-+=:,. Do not use any other characters. “Authentication and Warmstart Trap Receiver IP” field: Enter NMS IP address (TRAP host or manager) that will receive start-up TRAP messages. “Heartbeat Trap Repeat Rate”...

  • Page 41: Example - Nms Configuration

    Compile the Eltek Valere’s device specific MIB files into the NMS database. Any suitable SNMP based NMS with MIB compiler may be used. (Read also chapter “About Eltek Valere’s SNMP MIB Files”, page 40) Add the Compack object to the Management Map (The figure below is an example of the Compack controller object added to the Management Map.) “Ping” the Compack controller to ensure connectivity Define and configure the TRAP event handling, as required Eltek Valere’s unique Enterprise ID is <12148>...

  • Page 43: Appendix

    CAN bus Addressing All rectifiers and the Compack and Smartpack controllers (control units) connected to the Eltek Valere’s CAN bus must have a unique address or ID number. Software Assignment — Rectifiers The control system’s main controller assigns automatically the rectifiers’ addresses (software assignment).

  • Page 44: More Detailed - Controller Snmp Configuration

    This protocol reduces system administration workload, allowing devices to be added to the network with little or no manual intervention. Simple Windows-based utility program (EVIPSetup.exe) that needs no software installation. It is used to display the Smartpack and Compack controller’s network parameters, when connected Eltek Valere to an Ethernet LAN.
  • Page 45 The Internet Protocol Address IP version 4 addresses (IPv4) uses 32-bit (4-byte) addresses, which limits the address space to 4,294,967,296 possible unique addresses. However, IPv4 reserves IP Address some addresses for special purposes such as private networks (~18 million addresses) or multicast addresses (~270 million addresses). IPv4 addresses are usually represented in dot-decimal notation (four numbers, each ranging from 0 to 255, separated by dots, e.g.
  • Page 46 (MANs) are usually limited to a room, building, campus or specific metropolitan area (e.g., a city) respectively. The largest and most well-known example of a WAN is the Internet. A common name for the firmware installed in Eltek Valere’s controllers -- Compack and Smartpack, web option – and in the external WebPower adapter module. The firmware provides a WebPower communication protocol translator, a physical layer conversion and Web server software.
  • Page 47 Les Pages IHM – GUI pages...
