GMT DIAMOND COMBO TESTER User Manual

DIAMOND COMBO TESTER
User Manual
NOTE:
When testing, hold the tester
by placing your index and
thumb on the conductive
panels, and keep the fingers
away from the tip cone area.
The probe tip must be placed
at a right angle (90° position)
or perpendicular to the facet
of the gemstone for an
accurate reading.
SCAN THE QR CODE
to download
www.cd50.net/03
USER MANUAL
in different languages
TUTORIAL VIDEO ON HOW TO USE
Need more help?
Conductive panel
Cone area
CONTACT US.

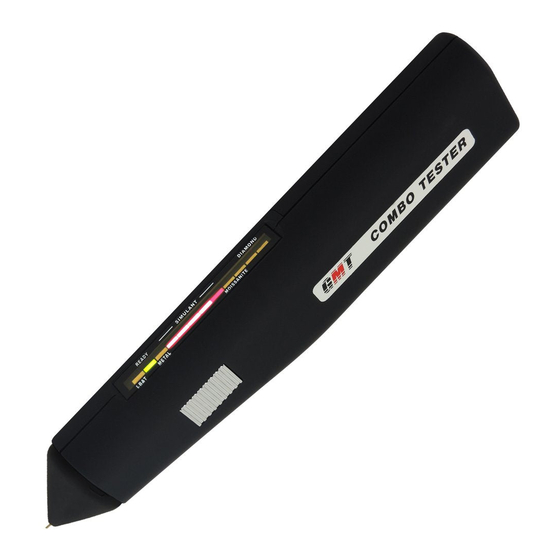

Thank you for purchasing the Diamond Combo Tester.
The tester is designed to distinguish natural diamond from
moissanite and other fake stones simultaneously and
quickly.

FEATURES:

• Easy operation without the need to adjust the LED bar
graph via volume control to match stones of different sizes
like that used in other diamond tester models.
• Could be powered by AAA alkaline batteries, NiMH
batteries or an AC power adaptor (Not included in the set).
• Can distinguish stones as small as 2pt.
• Low battery indicator.
• Equipped with an elastic probe tip.
• Built-in metal detector
• Beep reminding of shutdown after around 10 mins. of non-use.
1
3
1. Probe
2. Conductive panel
3. Battery cover
READY
LBAT
90°
Remove the battery cover and insert 3pcs of AAA batteries
into the battery compartment correctly with the direction of
positive and negative pole. Turn the power ON/OFF switch
to "ON", the READY lamp will blink. Then wait for about 25
seconds for the testing probe to be heated. The tester is
ready for testing when the green lamp lights up.
• Use a gem cloth to clean the stones to be tested. When
the testing is conducted in a room with high humidity, it is
better to scratch the tester's probe tip on a dry cloth for
several times.
• For mounted jewelry, please hold the jewelry with one
hand; For loose stone, you are required to place the stone
on the Testing Base, and hold testing base with one hand.

INTRODUCTION

DIAGRAM

2
4. Power ON/OFF switch
5. DC socket for AC adaptor
6. Testing Base
INDICATOR BAR GRAPH
--------------SIMULANT ---------------
METAL

PREPARATION

OPERATION

4
5
6
DIAMOND
MOISSANITE
