Summary of Contents for Bayer HealthCare SeedGrowth 81691878

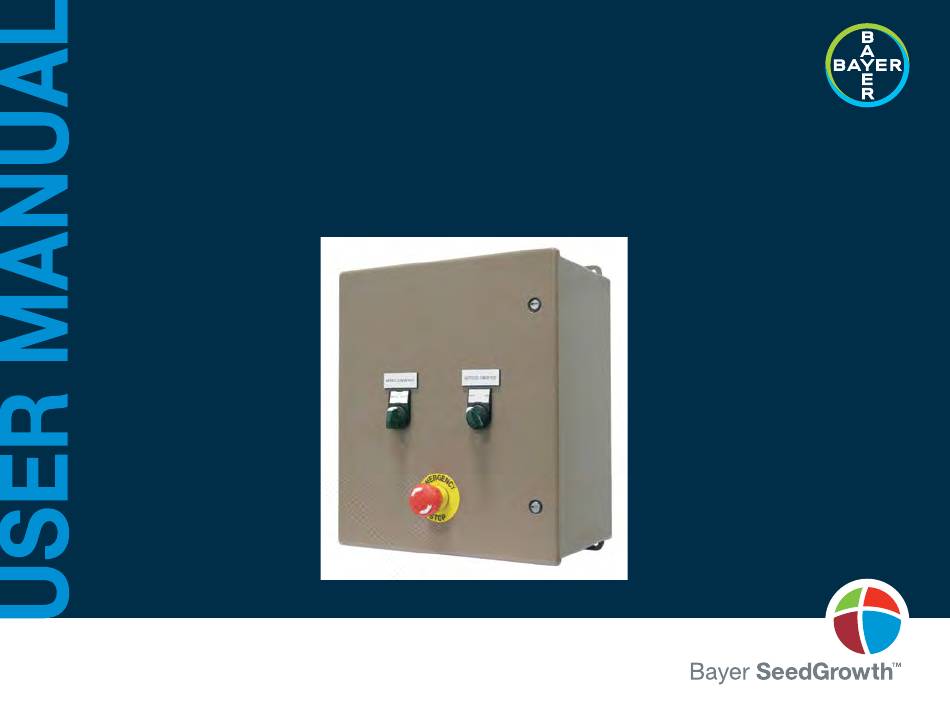

- Page 1 CONVEYOR CONTROL 1-PH #81691878 3-PH #81720037...
- Page 2 MENU This is an interactive PDF. Click on an icon tile and navigate to a chapter of interest. System Diagram Installation Legal & Safety Operation Troubleshooting Pictograms Users can advance or go back single pages by using quick navigation links shown below, right. Users can navigate to the Menu by clicking on the Menu icon shown below, left.
-
Page 3: Legal & Safety
LEGAL & SAFETY This manual contains technical information regarding Bayer SeedGrowth™ Equipment. Please read and understand these instructions completely before proceeding to install and operate the equipment. Bayer reserves the right to change specifications, models, components, or materials at any time without notice. For additional equipment information contact us at 1.800.634.6738. Please have this manual available when contacting Bayer. -
Page 4: Exposure Control
EXPOSURE CONTROL Always use caution and common sense when working Wear protective clothing Treatment products with chemicals. Read the product label and SDS carefully and follow their instructions exactly as described. Wear disposable or reusable coveralls with Keep products in a locked room that has The following Personal Protective Equipment (PPE) long sleeves. -
Page 5: Reference Symbols
REFERENCE SYMBOLS Shock Hazard Hand crush - moving parts Symbols and signal words are used to identify the Alerts that dangerous voltage may be Alerts crushing is possible. level of hazard and help avoid personal injury. present. Warning Pinch point Alerts that a hazard may cause serious Keep hands away from pinch points. - Page 6 PICTOGRAMS Each Signifier displayed here is specific to this User Manual. Menu Previous Advance Installation Operation Like System Cursor Hand Troubleshooting...
-
Page 7: System Diagram
SYSTEM DIAGRAM CONVEYOR CONTROL PKG., REF. Conveyor Control Dry Weight 41.1 LBS User Manual Sensor Capacitive Installation Kit 04121337 [30mm] Cable 5 meter 3-pin Mount Plate m12 quick-connect 04121256 High Level Installation Kit High Level Sensor Low Level Sensor Cardboard Box Designed to operate conveyors as well as both HI / LOW... -
Page 8: Installation
INSTALLATION Required assembly tools Caution: Have a qualified electrician connect the conveyor control to an external 230VAC • 7/16” Wrench (1) power supply. • Crescent Wrench (1) • 5HP / 230V / 1PH / 58FLA • Anti-Seize Product • 5HP / 230V / 3PH / 29FLA Factory supplied parts Conveyor Control Package •... - Page 9 Control Panel Mount + Bag 1 Step 1: Locate the Elevator Control Mount on or near the treating head assembly. Fasten in place using the following order: bolt+[Mount Plate+Frame]+washer+lock nut. Use a 7/16” Socket Head Wrench to securely tighten in place. Continued ...
- Page 10 High Sensor Mount + Bag 2 Step 1: Connect the High Level Sensor Assembly to the Hopper top (pre-drilled holes). Use a crescent wrench to remove the plastic plug on the side of the Hopper. Thread in the Low Level Sensor.
- Page 11 Infeed & Outfeed Conveyors Step 1: Connect the inlet conveyor power cord to INFEED power receptacle on the bottom of the Conveyor Control. Connect the outlet conveyor power cord to OUTFEED power receptacle on the bottom of the Conveyor Control. Ensure connectivity is correct!
-
Page 12: Operation
OPERATION Step 1: The Conveyor Control uses high level and low level sensors (located on the hopper above the inlet) to initiate the inlet feed conveyor. Each sensor is equipped with a light, that when turned on indicates the sensor is working but the bin is empty. - Page 13 Infeed Conveyor Both the inlet (INFEED) and the outlet (OUTFEED) conveyors are powered by switches on the control box. The Active position will be indicated by the switch turning green. INFEED CONVEYOR The INFEED conveyor can be run in two modes: MANUAL and AUTO. MANUAL MODE The conveyor will run continuously until the switch is manually turned to the OFF position.
-
Page 14: Troubleshooting
TROUBLESHOOTING Symptom Potential Fixes Unable to Run Conveyors Manually: Power is connect- Verify E-Stop Button is not activated (reset E-Stop button by turning button clockwise & pulling slightly). ed, conveyor is switched to “On or Manual”, but switch Reference: E-Stop Button Positions: doesn’t light-up &... - Page 15 Symptom Potential Fixes Low Sensor Light Off: Conveyor switches are in off This is Normal Operation: Low-sensor light will only come on when infeed conveyor switch is in “Auto” position and position, seed in hopper, high-sensor light is on, but low seed is present.
- Page 16 Bayer Crop Science Division 1451 Dean Lakes Trail Shakopee, MN 5379 Telephone +1-952-445-6868 Toll free: +1-855-363-3152 Visit us on: www.seedgrowth.bayer.com Bayer , the Bayer Cross and Bayer SeedGrowth are registered trademarks of Bayer. SGRCONVEYORCONTROLPKG.20191004 Products Coatings Equipment Services...
