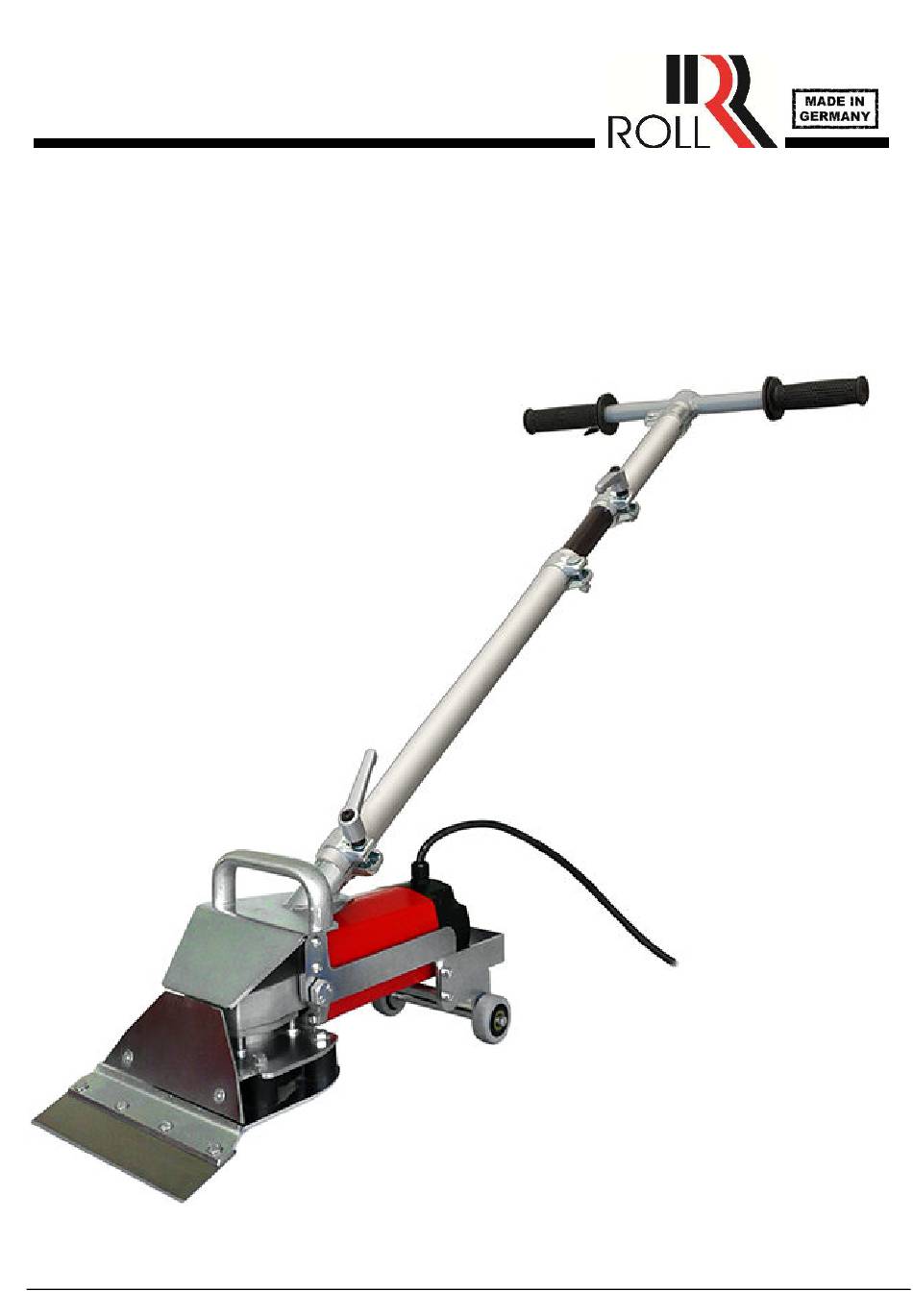

- Page 1 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Operation manual Bullystripper Roll with T-handle...
- Page 2 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) The operation manual identify important notes on safety and damage prevention using the following symbols: Please comply with these instructions to avoid any damages and injuries. They point to a possible dangerous situation. The nonobservance can lead to the death, to heavy injuries and to material damages.
- Page 3 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Index Priliminary notes General notes for the operator Description of the Bullystripper Storage Guarantee and liability Conformity Description Accessories Safety notes General information Designated use Dangerousness of the machine...
- Page 4 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Annex E: Spare parts list Bullystripper „Classic“ Ordering information for spare parts Ordering example Ordering address Exploded drawing – Motor Exploded drawing – Attached parts Spare parts list – Attached parts Exploded drawing –...
- Page 5 Bullystripper Roll with T-handle (Art. 17.14575) Preliminary notes Dear customer, you have decided for the Bullystripper Roll with T-handle, the correct choice for quality and performance. This operation manual contains important notes for the operation of your machine. Note Please read the operation manual carefully, in particular the safety notes and ensure that all operators read this operation manual prior to operate the machine.

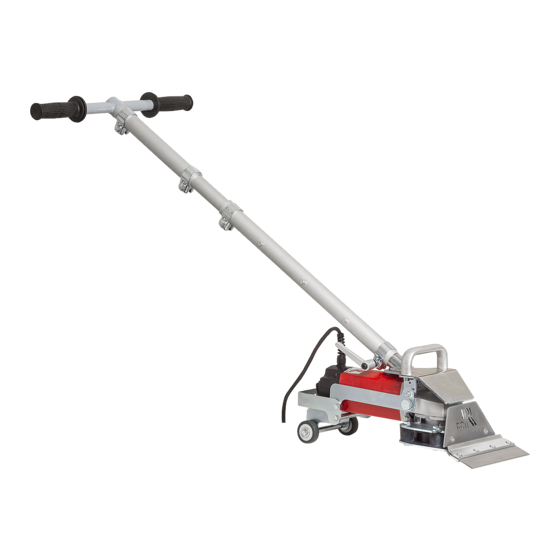

- Page 6 Description of the Bullystripper “Classic” The Bullystripper is used for removing pasted flooring coverings like PVC,-CV-, lino and carpeting floorings. The blade is eccentric propelled, thus the blade peels the flooring covering from the concrete.
- Page 7 Please store the machine without blade to avoid injuries! Guarantee and liability ROLL ensures a guarantee and liability are in accordance with our currently valid general business and sales conditions. The guarantee runs out after 12 months from purchase date.
- Page 8 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Description Cpl. handle_____________ ________________ ON/OFF-switch Handle tube_____________ Lock handle_____________ ___________ Connection cable ______________________________ U-grip ______ Transportation wheels _______________ Blade clamp plate _______________ Blade...
- Page 9 Designated use The Bullystripper is constructed for removing pasted flooring coverings like PVC,-CV-, lino and carpeting floorings. Using the machine outdoors is not allowed.
- Page 10 (Art. 17.14575) Dangerousness of the machine The Bullystripper was designed and produced for its intended use in accordance with the latest basic safety and health regulations. Due to the fact that the machine is small and compact the user is tempted to use it improperly.
- Page 11 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Inspection with accordance with VBG 4 § 5 (1) Nr. 2 The user is responsible for ensuring that the machine is inspected with respect to its proper operation in intervals of 6 months.
- Page 12 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Safety notes noise The noise that is created during the operation of the machine depends on many factors. All the possible application types and the local regulations, such as the size of the rooms and the features of the ground affect the development of the noise.
- Page 13 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) General instructions for the user Scope of delivery Description Article no. Bullystripper Roll with T-handle 17.14575 1 x blade 60mm x 210mm (dismounted) 17.14580 Wrench 10-13 67.00315 Metal holder for conversion to Handstripper 42.02065...
- Page 14 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Dimensions / Weight / Technical details 14,3 kg Total weight: Technical details: Rotation: 6600 rpm Power: 2200 W Voltage: 230 V (120 Volt) Working width: 210 mm Assembly Connect separated handle tubes: •...
- Page 15 Before placing the machine cut the floor in stripes, pay attention to the working width of the Bullystripper of 210mm. In the case of strong pasted floors, cut it in more narrow stripes. As far as possible please remove the floor covering with the clamp (17.13630) We recommend removing a first stripe in the middle of the room, where you can place the Bullystripper.
- Page 16 The tools necessary for the maintenance repair and service works that have been described below is included in the delivery extent of the machine. ROLL has planned maintenance and repair works for the Bullystripper. Only the activities that have been described below can be applied.
- Page 17 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Cleaning and maintenance Caution! Pull out the plug from the power connection before cleaning! Once per week - with frequent use more often - carry out: Clean the chill air openings •...
- Page 18 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Safety notes maintenance Note! For all works the following can be applied in general: The works must be done by trained personnel only. • Any work performed on the electrical equipment may be carried out by skilled electricians only.
- Page 19 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Annex E: Spare parts list Ordering information for spare parts An unmistakable identification and designation of the parts ensures that the correct part will be delivered. In order to avoid transmission errors and extensive descriptions it is recommended to use only the designations and the numbers stated in the spare parts list.
- Page 20 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Exploded drawing – Motor Order with item no.!
- Page 21 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Exploded drawing – Attached parts...
- Page 22 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Spare parts list – Attached parts Itm. Article no. Description Quant. 4202055 Exzenterwelle 4202026 Distanzbüchse 4202002/1 Anschraubplatte 4005100 Vibrationsgummi 4004000 Ausgleichsgewicht 4003100 Kugellager in Oberflansch 4003000 Oberflansch 4202006...
- Page 23 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Exploded drawing – Handle Spare parts list – Handle Itm. Article no. Description Quant. 4009010 Deichselrohr geschlitzt 7777777 Deichselrohr geschlitzt (kurz) 4009012 Innenverlängerung 4009040 T-Griff (geschweißt) 4009018 Gummihandgriff schwarz...
- Page 24 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Exploded drawing – Handle for handstripper Spare parts list – Handle for handstripper Itm. Article no. Description Quant. 4202065 Handgriffaufnahme Bully 4200862+ Handgriff mit Körper (1) aus 4009018 (Verwendung von Pos.
- Page 25 Operation manual / Spare parts list Bullystripper Roll with T-handle (Art. 17.14575) Declaration of conformity We declare ourselves solely responsible for this products conforming with the following standards or standardized documents: EN 50 144, EN 55014, EN 61 000-3-2/-3-3 gemäß den Bestimmungen der Richtlinien 98/37/EG und 89/336/EWG.
