ROTOR INspider ROT117 User Manual page 37

2. . 2 CRANK INSTALLATION OVER THE SPIDER + AXLE SET

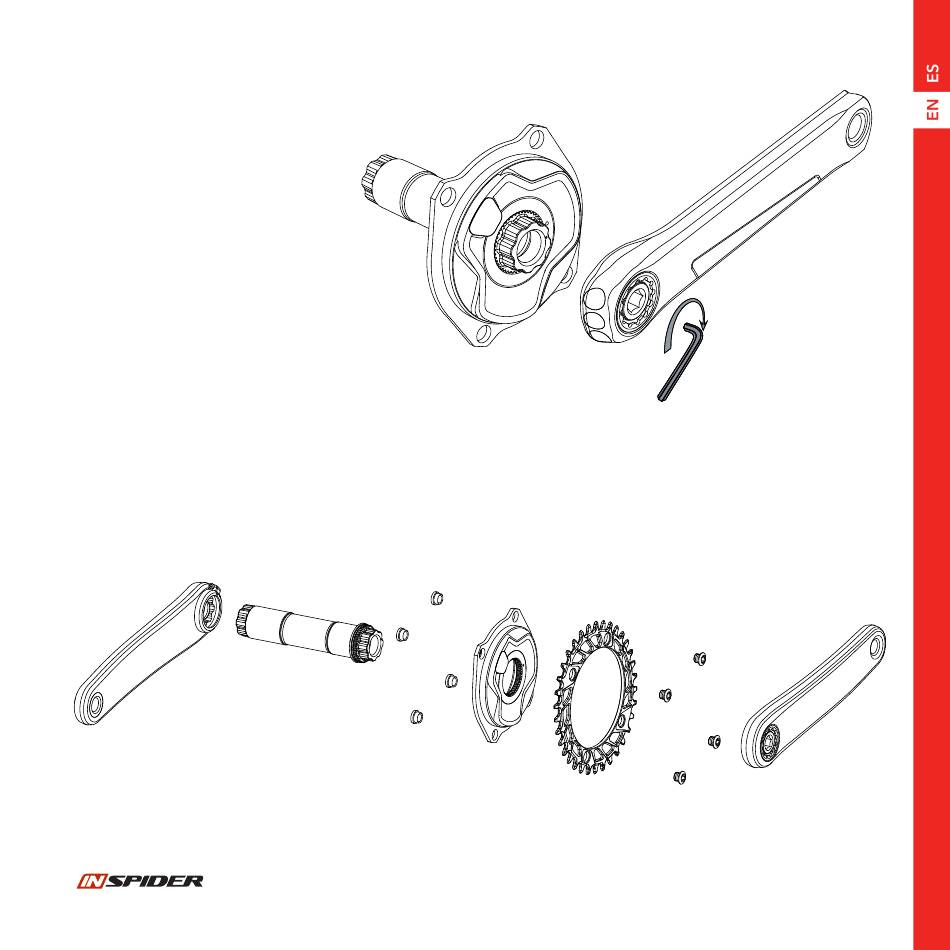

Position the drive side crank
arm over the pre-assembled
set of axle + spider always
leaving the OCP mark under
the crank. Tighten the crank
arm bolt with a 10 mm Allen
key until the crank arm touches
the spider
Consult the spacer charts in pages 39 and 40 and the user manual of your crankset to ensure the
correct installation in your frame.
The following images show the exploded view for three different assemblies that can be done
with the INspider power meter: road assemblies with 1x and 2x chainrings; MTB assembly with 1x
ROTOR specific chainrings. Please use them as reference when installing your power meter.
35 Nm
MTB ASSEMBLY
Spider and cranks installation 37
