Summary of Contents for DITABIS HLC MKR 13

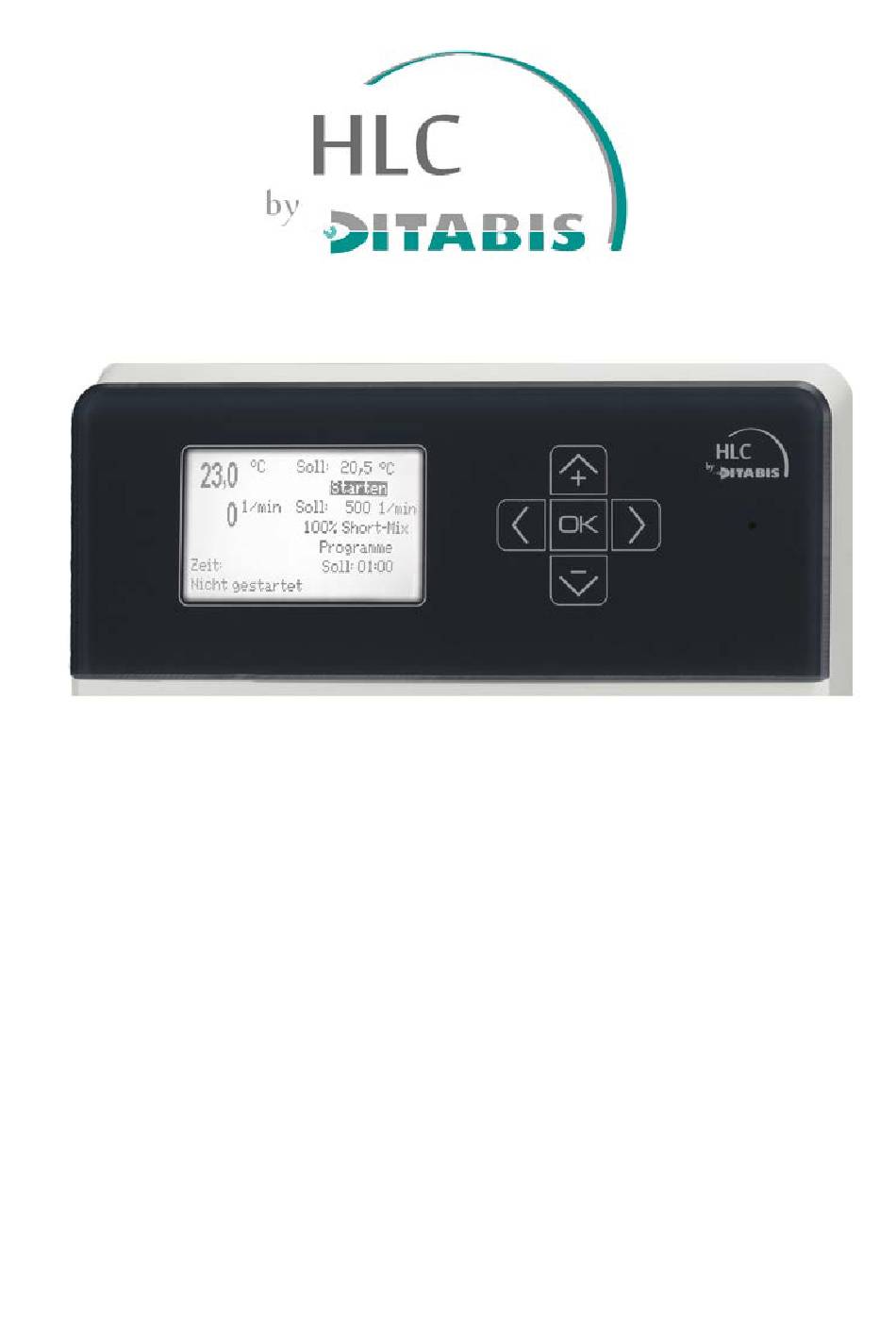

- Page 1 Thermo Shaker and BlockThermostats with Smart Control MKR 13 – MKR 23 – MHR 13 – MHR 23 – MHL 23 – TK 23 Operating Manual...
-
Page 2: Table Of Contents
Content Basic Data ....................3 Safety and Electromagnetic Compatibility (EMC) ....... 3 Warranty ..................... 3 Disclaimer of warranty ................ 3 Important Information ................ 4 Environmental conditions……………………………………………………………….4 Temperature accuracy ................ 5 First Steps ....................5 Setup ....................5 Operation ....................6 Parameter Setting ................ -
Page 3: Basic Data
DITABIS immediately (see our Terms and Conditions at www.ditabis.de). If used under normal laboratory conditions according to the Operating Manu- al, DITABIS grants a warranty of 1 year for the material and workmanship, starting with the day of shipment. Disclaimer of warranty In case of unspecified use of the device, the manufacturer assumes no re- sponsibility. -
Page 4: Important Information
Important Information This manual complies with the standards and directives mentioned in the EN DIN 61010-1 Norm. IQ, OQ and PQ documents are available on request. The systems are provided with a high-precision self-optimising temperature controller. Due to the self-optimisation it might oc- cur that the set temperature is exceeded in individual cases. -
Page 5: Temperature Accuracy
Temperature accuracy Every HLC by DITABIS system is calibrated with a gauged high-precision tem- perature measuring device to temperature accuracy and reproducibility. This process is performed at a room temperature of +20°C and a block tempera- ture of +37°C. The absolute calibration of the heating unit can also be per- formed for a certain temperature range if the customers desires. -
Page 6: Operation

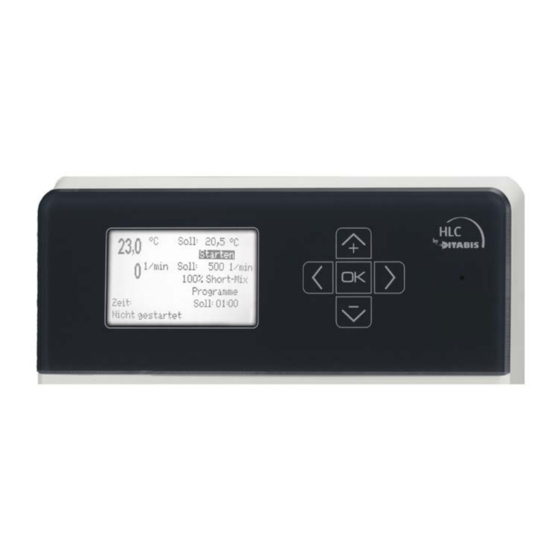

Switch on the system with the mains switch on the back of the system. The start menu will be displayed. The green LED turns on as soon as a process is running. Operation Parameter Setting Start menu This menu is displayed after the power-on, after abortion of after the normal completion of a process. - Page 7 until the ok key is pushed. Until then, the process runs with the previous data. No: the process ends without confirmation. Temperature set value – Navigate with to the temperature input box and confirm with ok. The individual numbers can be selected with arrow left and right, their value can be changed with The input is confirmed with ok and the cursor automatically jumps to the Start button.
- Page 8 – setting) Navigate with to the time input box and confirm with ok. The individual numbers can be selected with arrow left and right, its value can be changed with The input is confirmed with ok and the cursor automatically jumps to the button Start. For an endless process, select 00:00.
- Page 9 Process without time setting Only set a set temperature and a set shaking frequency but set the time on continuous 00:00 . Now, the process time is displayed continuously. It only starts to run if the temperature set value is reached. A set value change can also be made as de- scribed above during a running process.
-
Page 10: Working With The Programming Function
the start menu or the selection to continue the process from the stop (time runs from stop) or to make a restart (time runs from zero) is displayed. Process end Setting in setup: Confirm end: Yes If a process time is preset, the expiration of the time is indicated by a flashing LED and a signal, the process continues. - Page 11 For editing, navigate to the relevant button with and confirm with ok. Set the desired value with , navigate to the different numbers with arrow left and right and confirm with ok again. Cycles = Number of repetitions of the program, selection 1-9 possible. Step = Section within a program.
- Page 12 Select the relevant prog. no. and confirm the Start button in the program menu. Changing parameters during the pro- gram process Change of temperature and rotational speed as well as performing a Short-Mix are possible during a running program. The set time is the time of the running step, the remaining time is the time of the complete process.
-
Page 13: Assembly Of Accessories
If you select Continue with prog, the selection Continue from stop or Prog Restart is displayed (program starts from cycle 1, step 1). Assembly of Accessories Anti-Condensation Plate BA 24 / 96 (800012900 / 800013000) The anti-condensation plate BA 96 (800013000) is placed on the attached block, no assembly steps are required. - Page 14 Select at "Transfer": "Record Text", enter the location and define the file name as .txt Start the Hyper Terminal and the process. Every minute, the following data are recorded in text format and separated by comma: Time from start (hh:mm) Time from new program step (step Temperature in °C (tmp) time)
- Page 15 Starts a process without program with the parameters indicated on the dis- play. Time settings, if applicable, are deleted and overwritten by continuous since time settings must be programmed on the computer. Stop Stops all processes and returns to the start menu, running programs / pro- cesses are aborted.
-
Page 16: Troubleshooting
The system does not cool, heat or shake as set Check whether the display indicates the correct system type name at power- on. If not, please contact the HLC by DITABIS service department. There are excessive temperature fluctuations Check the seat of the changeable block by pulling it up. If it is too loose or if the block exhibits roughness, e.g. -
Page 17: Maintenance
Maintenance Cleaning Regularly clean the housing and the changeable blocks of the ThermoMixers and BlockThermostates. Precautions for avoiding electric shock Electronic devices can cause electric shocks in case of an operat- ing error. Never try to repair electric parts. Never open the hous- ing. -
Page 18: In Case Of Service
In Case of Service If a technical problem arises, please contact your local dealer or the DITABIS service department. The DITABIS contact information can be found at www.ditabis.de. If required, the system will be returned for repair – please take note of our service guidelines, which can be found at www.ditabis.de... -
Page 19: Technical Data
Technical Data Technical Data MKR 13 Temperature-working range Room temp. -18°C to +100°C Temperature-adjustable range -18°C to +105°C Accuracy / resolution +/- 0.1°C / 0.1°C Average heating time C 25°C – 90°C: 5°C / min Average cooling time 90°C – 25°C: 6,4°C / min 25°C –... - Page 20 Technical Data MHR 13 Temperature-working range Room temp. +3°C to +130°C Temperature-adjustable range 0°C to +135°C Accuracy / resoultion +/- 0.1°C / 0.1°C Average heating time up to +40°C 25°C – 90°C: 13°C / min Shaking frequency 100 – 1,500 rpm Orbit 3 mm round Dimensions (W x D x H)
- Page 21 Technical Data MHL 23 Temperature-working range Room temp. +3°C to +130°C Temperature-adjustable range 0°C to +135°C Accuracy / resolution +/- 0.1°C / 0.1°C Medium heating time up to +40°C app. 5°C / min from 41°C app. 4°C / min Shaking frequency 100 –...
-
Page 22: Changeable Blocks & Accessories
Changeable Blocks & Accessories Changeable blocks Art. No. Dimensions of the Containers 800010800 BM 02 for 96 x 0.2 ml conical & 8-container stripes micro 800010900 BM 05 for 38 x 0.5 ml conical test tubes 800011000 BM 15 for 24 x 1.5 ml conical 800011100 BM 20 for 24 x 2.0 ml cylindrical For sample... - Page 23 For Slides 800012400 BY 12 for 12 slides for hybridisation Accessories Art. No. Description 800012800 BI 01 Isolation lid 800013800 BT 01 Tempering tub for 1 block, transparent 800013900 BT 02 Tempering tub for 2 blocks, transparent 800012900 BA 24 Anti-condensation plate for 1 block (micro test tubes) 800013000 BA 96 Anti-condensation-plate for 1 block (PCR/ test plates) 800013100...
-
Page 24: Explanations
Explanations Caution! Risk of electric shock! Caution! Caution! Hot surface! Important information Earth conductor Fuse... - Page 25 800-68-13-02_Manual_Smart_Control.docx...
