OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Jacobs Ladder X

Summary of Contents for Jacobs Ladder X

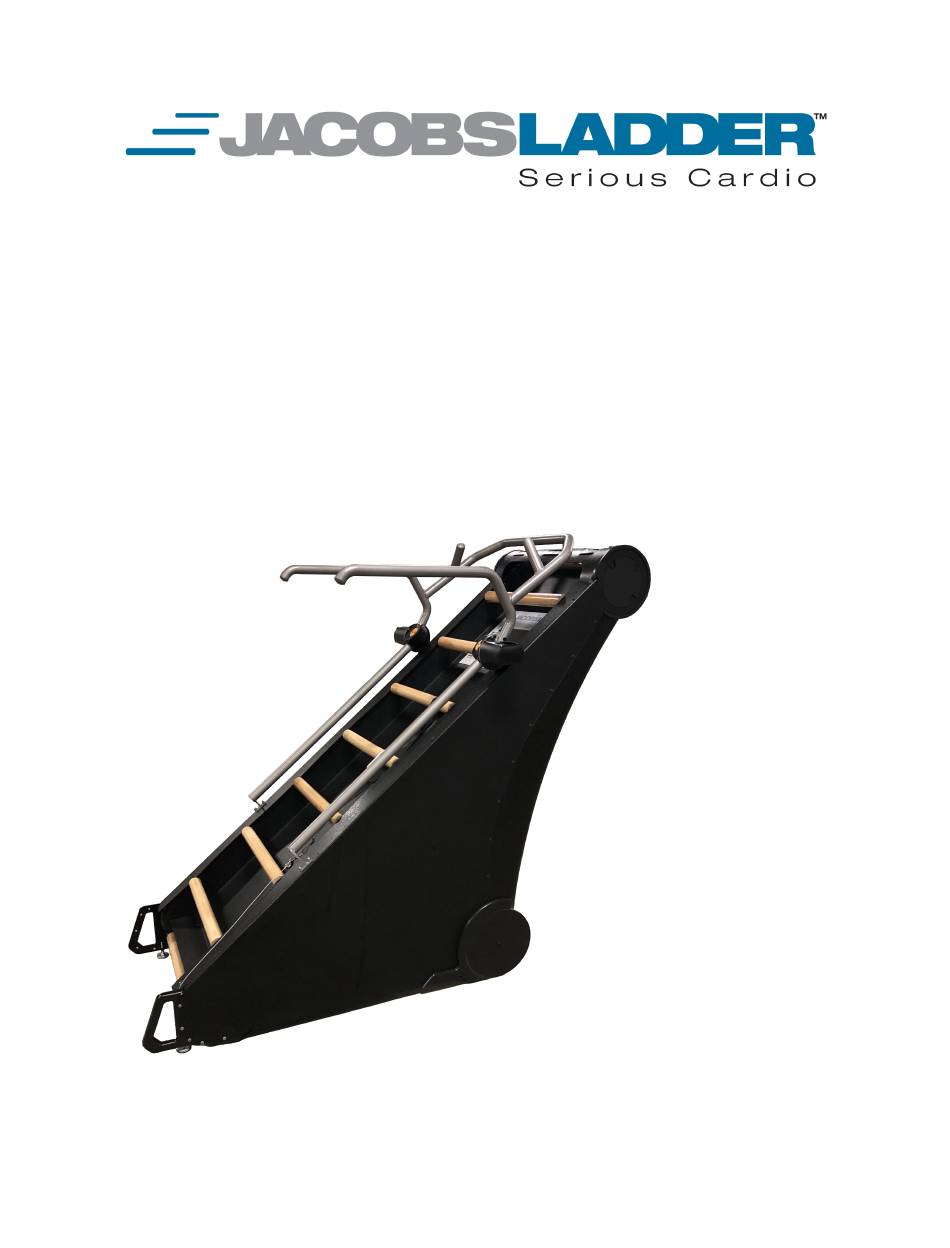

  • Page 1 OWNER’S MANUAL...
  • Page 2 The new Jacobs Ladder X comes with a multi- position handle that offers the user four different climbing positions allowing the...

  • Page 3: Table Of Contents

    Length: 84” Width: 37”(With Cup Holders Attached) Height: 70” Weight: 345 lbs Rungs: Solid Maple Case: ABS/Polyethylene Power: Self-Powered Ceiling Height Requirement: 8.5 Feet Digital Readouts: Elapsed Time, Steps Climbed, Rate (Steps/Min), Calorie Burn, and Intensity Zone Indicator Table of Contents Safety…………………………………………………………………………..………4 Proper Use Instructions………………………………………………………………...4 Assembly Instructions…………………………………………………………………..5...

  • Page 4: Proper Use Instructions

    Never allow small children to operate machine. Keep small children away from machine while in operation. Never sprint on Jacobs Ladder X. Increase your speed at a steady pace until you reach an appropriate speed. Never place towels or other objects under the rungs or at the bottom of the machine.

  • Page 5: Assembly Instructions

    6.) In order to stop, simply stop climbing and coast to the bottom. Assembly Instructions Take the following steps to assemble the Jacobs Ladder. 1. Unpack the ladder and remove the packing materials from the base and upright/console assembly. Do not discard the Owners Packet or the Cup Holders which should come attached to the rungs with zip ties.
  • Page 6 CAUTION: To avoid injury and ensure your safety, be sure to get the appropriate number of people to help you move the ladder to its final location. A fully assembled Jacobs Ladder X is very heavy and you might injure yourself if you move the ladder improperly.

  • Page 7: Display

    CAUTION: If you need to re-charge the battery pack, plug the AC adapter into a proper 110V outlet and then the round connector into the plug on the users lower left side of Jacobs Ladder X Display Jacobs Ladder LLC...

  • Page 8: Controls

    Calories The cumulative calorie burn for your workout is displayed in the lower left of the dashboard. Steps Climbed The cumulative number of steps climbed for your workout is displayed in the upper left of the dashboard. Intensity Zone Throughout your workout, your Intensity Zone is shown in the center of the dashboard.
  • Page 9 Start Button Pressing the Start button will light the display for 30 seconds. This will give the user ample time to input their weight before beginning their workout. If you do not begin climbing within 30 seconds of pressing the button, the display will shut off.
  • Page 10 Hold on to the lower side handles while climbing to get a targeted lower body workout. This is a great starting position to familiarize yourself with Jacobs Ladder X if this is your first time climbing. Hold on to the upper side handles while climbing to get lower body workout similar to Stairway GTL. This is also a great starting position to familiarize yourself with Jacobs Ladder X if this is your first time climbing. Climb hand-over-hand on Jacobs Ladder X to get a full body workout. Who’s got the time to work one muscle group at a time these days anyway? Jacobs Ladder LLC 10...

  • Page 11: Maintenance

    Ladder. Greasing the chains can prevent the machine from running smoothly. Jacobs Ladder X, Jacobs Ladder and the Jacobs Ladder 2 machine and rungs can be cleaned using any mild household cleaner that you use on other cardio machines. Never put polish or wax on the rungs. This will cause the rungs to become slippery and unsafe.

  • Page 12: Preventative Maintenance

    Do not attempt to service the ladder yourself except for the maintenance and diagnostic tasks described in the PREVENTATIVE MAINTENANCE section of this manual. The Jacobs Ladder does not contain any user-serviceable parts. For information about the product, contact the following:...
  • Page 13 Jacobs Ladder LLC Operating Instructions and Care and Cleaning Instructions. 3. Except in Canada, Jacobs Ladder LLC does not pay labor outside of the United States. 4. Warranties outside the United States and Canada may vary. Please contact your local Dealer...
  • Page 14 1. Software version upgrades 2. Cosmetic items, including, but not limited to the following: grips, seats, and labels. 3. Repairs performed on Jacobs Ladder LLC equipment missing a serial number or with a serial tag that has been altered or defaced.

  • Page 15: Maintenance Log

    EXCLUSION APPLIES EVEN IF THE ABOVE WARRANTY FAILS OF ITS ESSENTIAL PURPOSE AND REGARDLESS OF WHETHER SUCH DAMAGES ARE SOUGHT FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, OR STRICT LIABILITY IN TORT OR UNDER ANY OTHER LEGAL THEORY. Maintenance Log Date Procedure Notes...
  • Page 16 Jacobs Ladder LLC 16...
