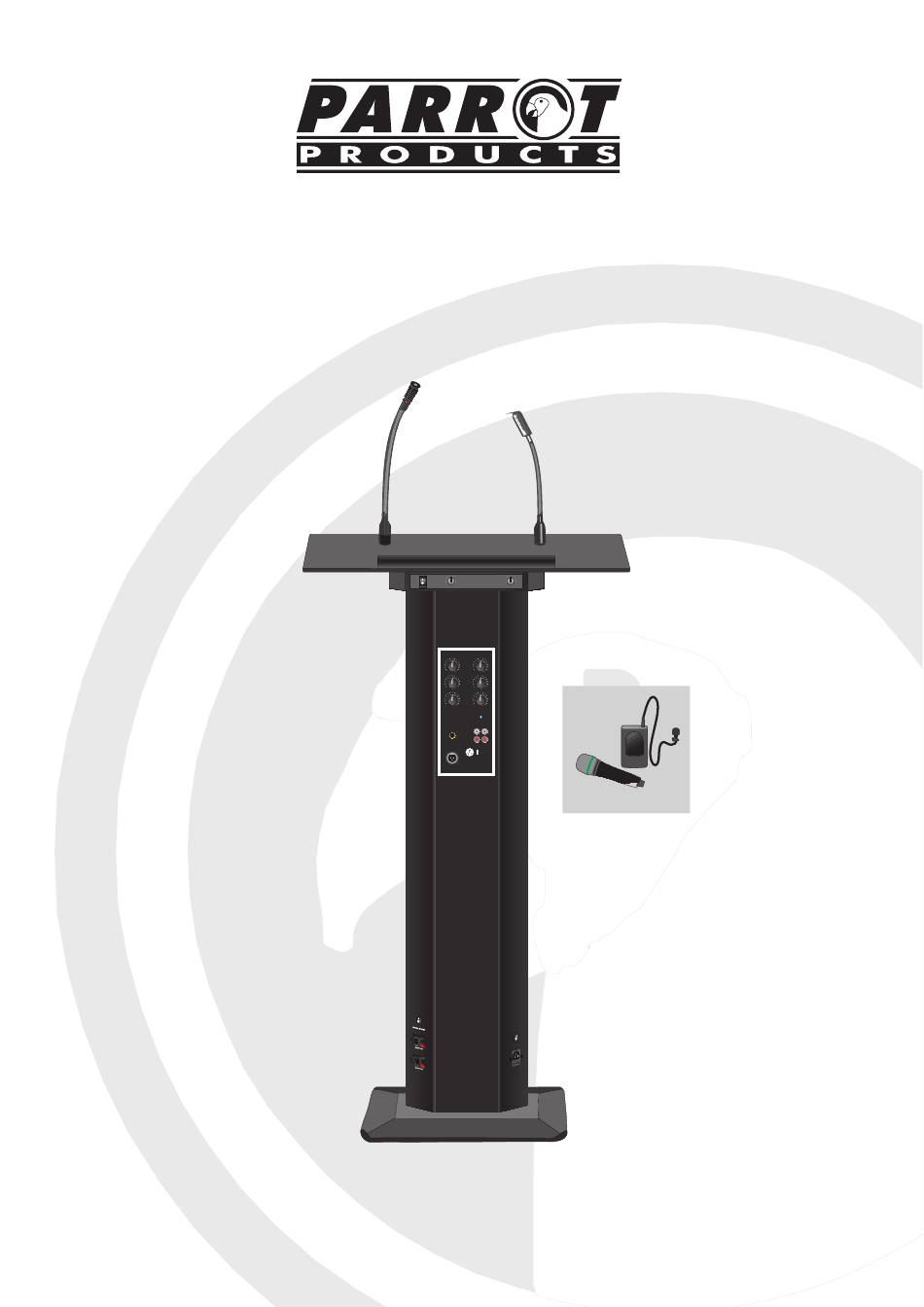

Lectern with Wireless Mic - LE1001
Tel: (RSA) 010 140 4900 / Email: sales@parrot.co.za
User Manual
MIC
0
10
0
10
MIC 1
TREBLE
0
0
10
-5
+5
MIC 2
BASS
0
0
10
-5
+5
WIRELESS-MIC 3
AUX 1
0
10
0
10
PL
MIC 2
AUX 1 REC OUT
PRE-OUT
1
GND
2
HOT
3
COLD
POW ER
50H z
~23 0V
www.parrot.co.za
LAMP
Accessories included:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Parrot Products LE1001
Summary of Contents for Parrot Products LE1001
- Page 1 Lectern with Wireless Mic - LE1001 User Manual LAMP MIC 1 TREBLE Accessories included: MIC 2 BASS WIRELESS-MIC 3 AUX 1 MIC 2 AUX 1 REC OUT PRE-OUT COLD POW ER 50H z ~23 0V Tel: (RSA) 010 140 4900 / Email: sales@parrot.co.za...
- Page 2 Key safety instructions Please read through this manual before using the Lectern. Save the user manual for future reference. Safety Message and Alert Symbols The two (2) Safety messages shown below will inform you about potential hazzards that could injure you or others. The Safety messages, specifically address the level of exposure to the operator and are preceded by one of two words: WARNING, or CAUTION.
- Page 3 Key safety instructions When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in or remove the power supply plug cause it to fall or break. This may result in with wet hands, as doing so may cause electric personal injury and/or...
- Page 4 Installation Unscrew the four screws from the bottom of the column speaker. Connect the base with the speaker and fasten. Unscrew the supplied screws from column. Align the base-plate holes to the speaker column holes and fasten screws to secure. Secure U-shaped brackets to each side of the receiver, fasten receiver &...
- Page 5 1 Features 1. 4R output port 2. 1 AUX input , Independent control 3. Short-circuit,clipping and high-temp protection 4. Bass & Treble volume control 5. 24V phantom power MIC 1 TREBLE 6. 1 line balance output MIC 2 BASS WIRELESS-MIC 3 AUX 1 7.
- Page 6 3 Receiver Features 1. Power on indicator: glows green when the receiver is powered on. 2. RF signal indicator: glows yellow when signals are received. 3. Transmitter audio peak indicator: flashes red when there is audio signal. 4. Volume control: adjusts the output volume of the receiver. 5.
- Page 7 5 Specifications Type NO LECTERN AMPLIFIER Item AC power source ~230V 50Hz Consumption power 100W Frequency response 80Hz~16,000Hz T.H.D rate Below 0.5% Output power Input Balances output Recording output Amplifier output 350MV 200mV AUX 1 Sensitivity MIC 1 12MV 200mV MIC 2 200mV MIC 3...
