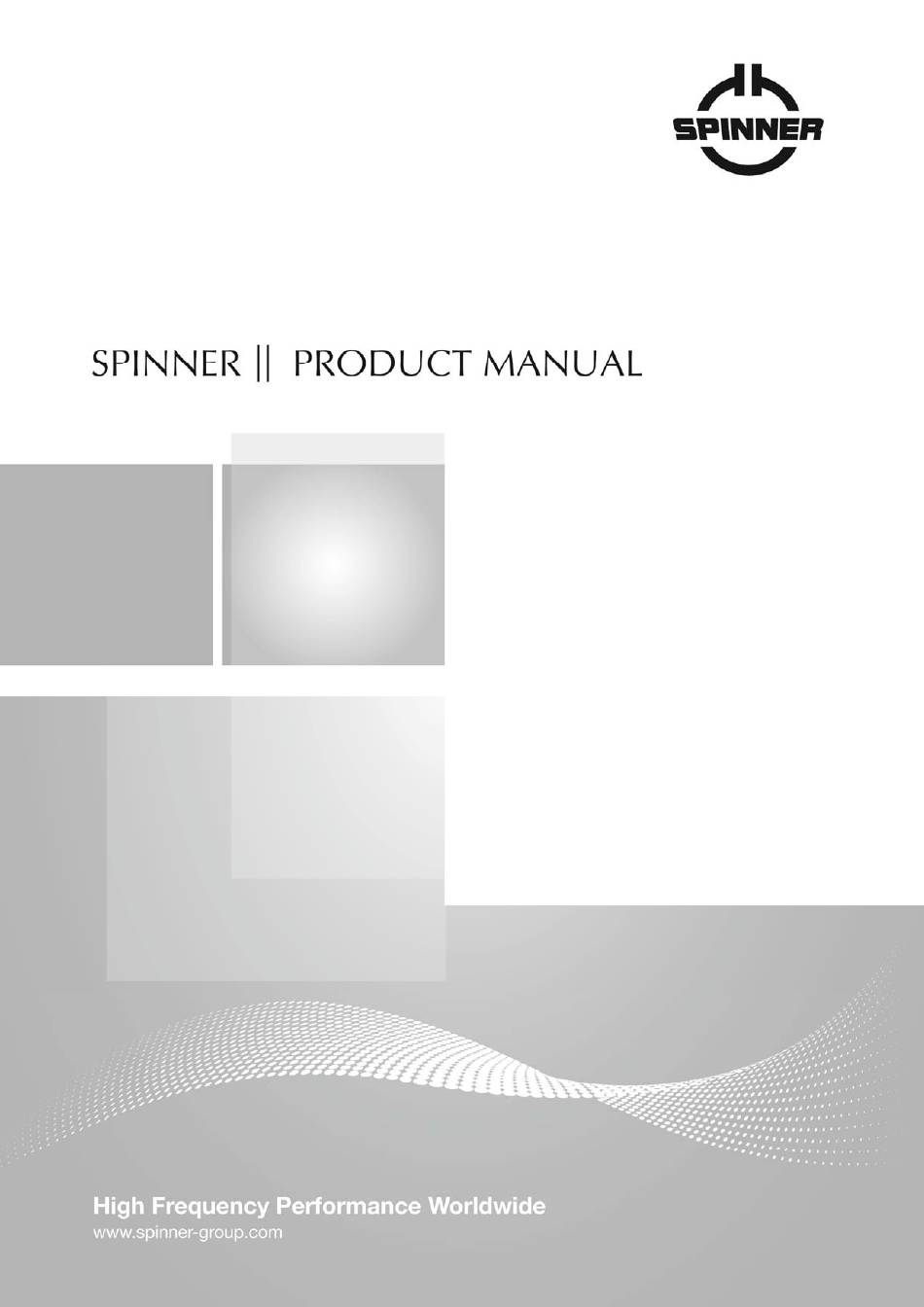

- Page 1 Sliding Load 2.4 mm (50 ohms) BN 741650 BN 741651...
- Page 2 Dear Customer, Thank you for the trust you have placed in us by buying a SPINNER sliding load. Each SPINNER sliding load is carefully tested and subject to strict quality controls by Spinner’s quality assurance. Nevertheless, the service life of a sliding load depends to a great extent on you. Observe the information contained in these instructions and the enclosed documentation.
-
Page 3: Table Of Contents
Handling and Storage ..........................9 Recalibration ............................... 9 Accessories ............................10 Disposal ............................... 10 Warranty .............................. 10 Contacts .............................. 10 Data subject to change without notice│M36082│Issue B│2020-02-21 3 / 10 www.spinner-group.com... -
Page 4: General Safety Information
The following instructions and safety instructions are to be carefully read and followed! The Spinner group makes every effort to keep the safety standard of our products up to date to be able to offer our customers the highest possible degree of safety. Our products are designed and tested in accordance with the relevant safety standards. - Page 5 Repair must be carried out only by the manufacturer or technical personnel authorized by the manufacturer. Unless otherwise specified, Spinner products are not protected against penetration of liquids, gases, steam, etc. If this is not taken into account, there exists the danger of electric shock for the user or damage to the product, which can also lead to personal injury.
-
Page 6: Product Identification
Ser. No: XXX (Serial number) Intended Use The intended use of the sliding loads BN 741650 and BN 741651 is to calibrate vector network analyzers (VNAs) from 4 GHz up to 50 GHz for measurements of components with 2.4 mm connectors. -
Page 7: Cleaning Connectors
Do NOT use too large cotton swabs. Otherwise you will damage the connectors. Standard cotton swabs are too large to fit in the smaller connector types. Appropriately sized swabs can be purchased through a medical- lab-type supply centre. Data subject to change without notice│M36082│Issue B│2020-02-21 7 / 10 www.spinner-group.com... -
Page 8: Connection And Disconnection
Support the connectors properly. Relieve the connections from any bending torque. Tighten connection by means of a torque wrench to 90 Ncm ± 10 %. Torque wrench with unalterable setting to 90 Ncm ± 10 % recommended (SPINNER part number BN 15 41 41). ... -
Page 9: Handling And Storage
The actual need for recalibration depends on the use and the maintenance of the sliding load. The recalibration interval should begin with the day of initial use after recalibration. The SPINNER recalibration service includes cleaning of the connector interfaces ... -
Page 10: Accessories
Warranty Do not disassemble the sliding load. The warranty is void, if the sliding load is modified, improperly handled or third party intervention or modification has occurred. Contacts SPINNER GmbH • Headquarters Erzgiessereistr. 33 80335 München Germany tel.: +49 89 12601-0 fax: +49 89 12601-1292 info@spinner-group.com...
