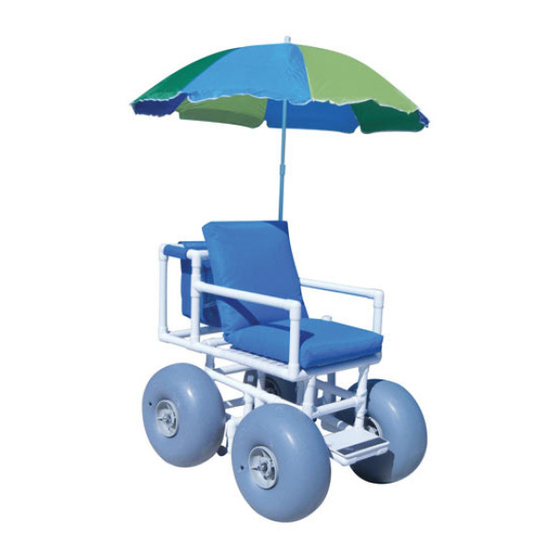

Beach access chair

Advertisement

Quick Links

9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | +1-406-549-0769
www.aquacreek.com
Check entire box and all packing materials for parts. Before beginning assembly, read the instruc-
tions and identify parts using the figures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's war-
ranty and may affect the safety of the user.
Copyright © 2017 Aqua Creek Products All Rights Reserved
Beach Access
300 LB. [136 kg] MAXIMUM WEIGHT CAPACITY
LEAVE THIS MANUAL WITH CHAIR OWNER
Safety can only be ensured if the beach chair is installed
and operated according to these instructions.
• NEVER permit children to play on or around the chair
• DO NOT allow children to use the chair without adult
supervision
• DO NOT use beach chair without checking tires for
proper inflation pressure. Chair may be unstable or
unsafe is the tire pressure is too high or too low
• NEVER operate the beach chair in water. This product
is not a floatation device
READ CAREFULLY
Chair
PART #: F-6001
MANDATORY
Read and follow all instructions.
1
Revised 9/15/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-6001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Creek Products F-6001

  • Page 1 It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s war- ranty and may affect the safety of the user.
  • Page 2: Parts List

    Parts List ITEM # QTY DESCRIPTION BEACH ACCESS CHAIR UMBRELLA UMBRELLA CLAMP SEAT BELT (not shown) Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 3 See pictures below. Next, locate the rear axle and install it into the back of the beach access chair. Once completed, the chair should look like the picture below. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 4 Repeat this process for the front two wheels, attaching them to the front axle. Once completed, the beach access chair should look like the picture shown to the right. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 5 Once all four pieces have been installed the seat assembly is ready to be placed on top of the base assembly as shown in the picture to the right. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 6 The backrest netting needs to be secured to the frame. To do this, stretch the netting up and over the top bar and attach the buttons on the fabric to the snaps on the under side of the top bar. See pictures below for example. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 7 Set the storage bag in the back compartment and secure in place using the buttons on the bag and the snaps on the frame. See pictures below and the first two pictures on the next page. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 8 Lastly, install the seat belt in place by looping it through the chair and securing using the snap buttons. See photo in bottom left. The Beach Access Chair is now ready for use! Finished assembly should look like the picture to the bottom right. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 9: Using The Parking Brake

    Parking Brake Engaged To release the brake, pull the brake lever nut out of the hole (sideways) and rotate the brake handle forward as shown below. Parking Brake Disengaged Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 10 The umbrella comes in a separate package and needs to be assembled before use. First, attach the clamp to the chair frame. Then, insert umbrella pole into the top of the clamp, making sure the button is aligned with the button hole. See pictures below. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/15/17...
  • Page 11 (ITEM #’s F-013BAC, F-014BAC, F-015RBAC, F-016BS, F-6001) Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions and properly used and maintained, shall be...
