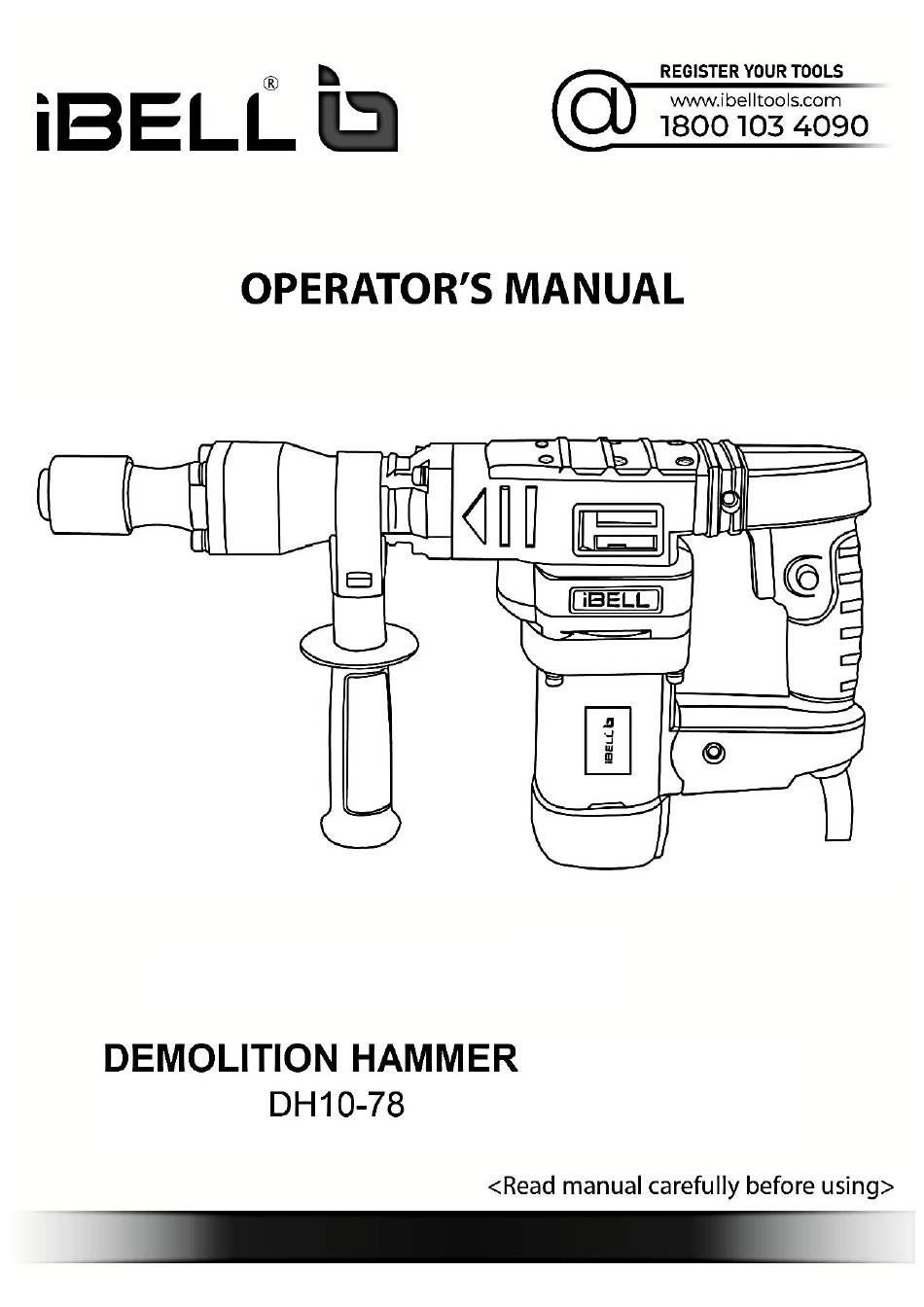

Summary of Contents for iBell DH10-78
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS ___________ 2. DEMOLITION HAMMER SAFETY WARNINGS ____________ 3. PRODUCT OVERVIEW __________________________________ 4. PRODUCT SPECIFICATIONS ____________________________ 5. SETUP _________________________________________________ 6. PRODUCT FUNCTIONS AND ASSEMBLY ________________ 7. GENERAL OPERATION _________________________________ 8. TROUBLESHOOTING ___________________________________ IBL DH10-78... -
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL DH10-78... - Page 5 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this operator’s manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL DH10-78...
- Page 6 Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL DH10-78...
-
Page 7: Demolition Hammer Safety Warnings
Never place the tool down until the motor has come to stop. Do not strike the bit with a handheld hammer or sledge hammer when attempting to displace a bound or jammed bit. Fragments of metal from the bit could knock out and strike you or bystanders. IBL DH10-78... -
Page 8: Product Overview

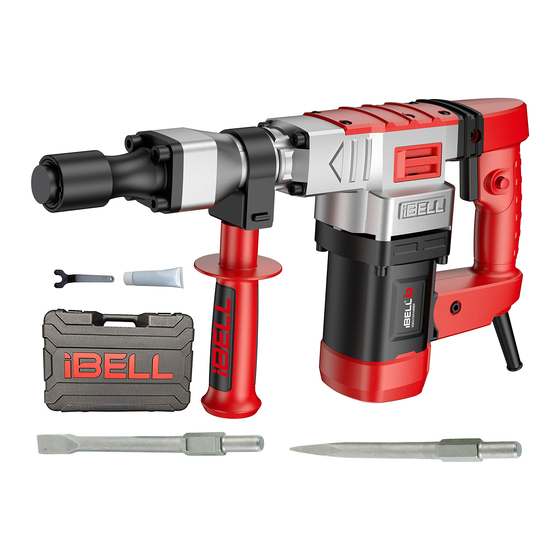

PRODUCT OVERVIEW 1. Bit Holder with locking sleeve 2. Auxiliary Handle 3. ON/OFF Switch 4. Switch lock on button 5. Grease Box 6. Flat chisel bit 7. Pointed chisel bit IBL DH10-78... -
Page 9: Product Specifications
The product must be fully assembled before WARNING! operation! Do not use a product that is only partly assembled or assembled with damaged parts! Do not connect the product to power supply before it is completely assembled! IBL DH10-78... -
Page 10: Product Functions And Assembly
(4). To stop the tool from the locked position, pull the switch trigger fully, then release it. Before plugging in the tool, always WARNING! check that the switch trigger actuates properly and returns to the "OFF" position when released. IBL DH10-78... - Page 11 To remove the bit, pull and hold locking sleeve backward and pull bit forward. All accessories should be wiped clean after removing. Clean the insert shank end of the accessory to remove any debris, then lightly grease with a lubricant. Hex shank cross-section IBL DH10-78...
-
Page 12: General Operation
When working on a wall, you should start as close to the centre of it as possible and chisel downward. The weight from the load at the top will cause the concrete to fall on its own. IBL DH10-78... - Page 13 Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and components which could cause serious hazard. IBL DH10-78...
- Page 14 BEARINGS Every brush change, the bearings should be replaced. Bearings which become noisy (due to heavy load) should be replaced at once to avoid overheating or motor failure. IBL DH10-78...
-
Page 15: Troubleshooting
Only perform the steps described within these WARNING! instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! IBL DH10-78... - Page 16 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
