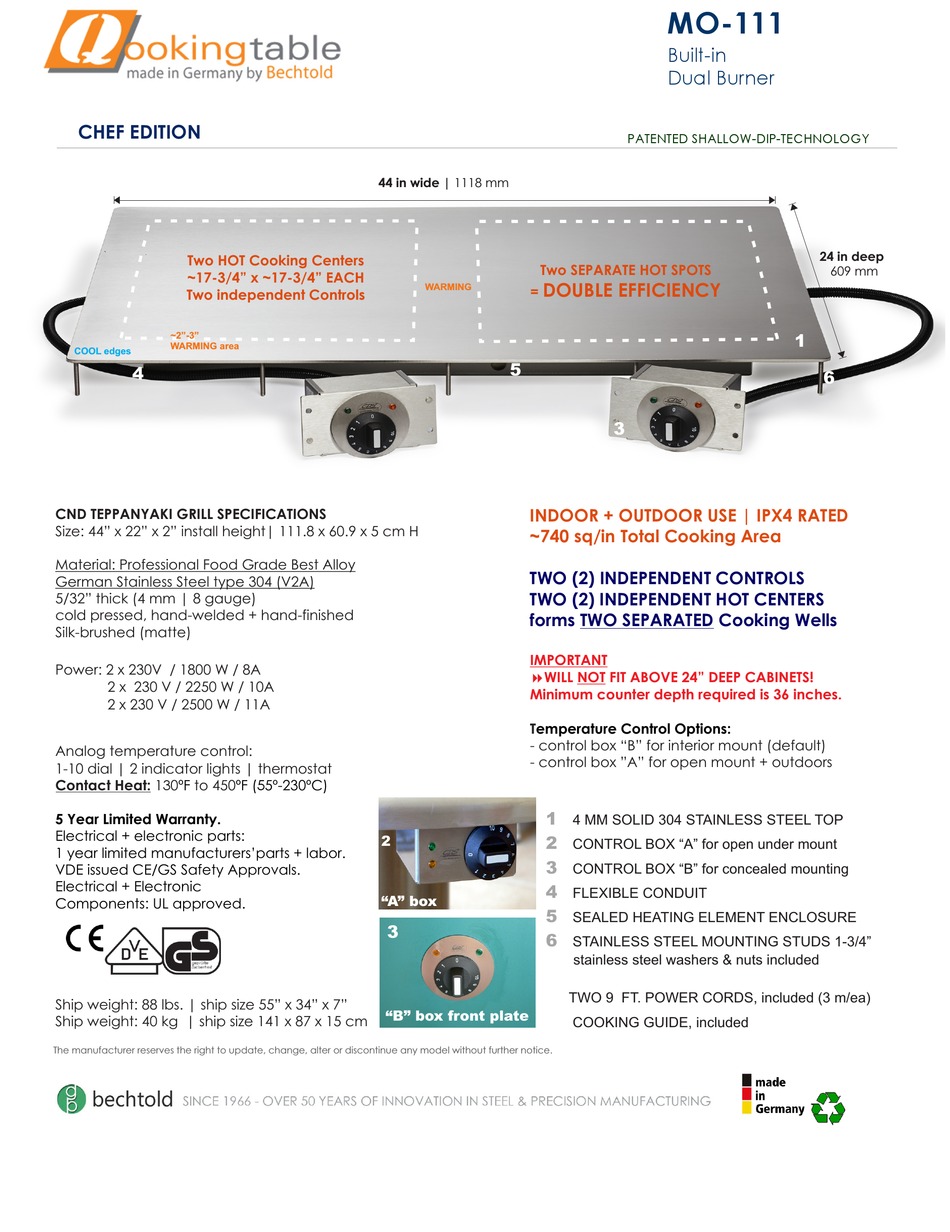

QookingTable MO-111 Quick Start Manual

CHEF EDITION
Two HOT Cooking Centers
~17-3/4" x ~17-3/4" EACH
Two independent Controls
~2"-3"
WARMING area
COOL edges
4
CND TEPPANYAKI GRILL SPECIFICATIONS
Size: 44" x 22" x 2" install height| 111.8 x 60.9 x 5 cm H
Material: Professional Food Grade Best Alloy
German Stainless Steel type 304 (V2A)
5/32" thick (4 mm | 8 gauge)
cold pressed, hand-welded + hand-finished
Silk-brushed (matte)
Power: 2 x 230V / 1800 W /
2 x 230 V / 2250 W
2 x 230 V / 2500 W
Analog temperature control:
1-10 dial | 2 indicator lights | thermostat
Contact Heat: 130ºF to 450ºF (55º-230ºC)
5 Year Limited Warranty.
Electrical + electronic parts:
1 year limited manufacturers'parts + labor.
VDE issued CE/GS Safety Approvals.
Electrical + Electronic
Components: UL approved.
Ship weight: 88 lbs. | ship size 55" x 34" x 7"
Ship weight: 40 kg | ship size 141 x 87 x 15 cm
The manufacturer reserves the right to update, change, alter or discontinue any model without further notice.
44 in wide | 1118 mm
8A
/ 10A
/ 11A
2
"A" box
3
"B" box front plate
Two SEPARATE HOT SPOTS
DOUBLE EFFICIENCY
WARMING
=
5
INDOOR + OUTDOOR USE | IPX4 RATED
~740 sq/in Total Cooking Area
TWO (2) INDEPENDENT CONTROLS
TWO (2) INDEPENDENT
forms TWO SEPARATED Cooking Wells
IMPORTANT
8WILL NOT FIT ABOVE 24" DEEP CABINETS!
Minimum counter depth required is 36 inches.
T emperature Control Options:
- control box "B" for interior mount (default)
- control box "A" for open mount + outdoors
1
4 MM SOLID 304 STAINLESS STEEL TOP
2
CONTROL BOX "A" for open under mount
3
CONTROL BOX "B" for concealed mounting
4
FLEXIBLE CONDUIT
5
SEALED HEATING ELEMENT ENCLOSURE
6
STAINLESS STEEL MOUNTING STUDS 1-3/4"
stainless steel washers & nuts included
8
TWO 9 FT. POWER CORDS, included (3 m/ea)
9
COOKING GUIDE, included
MO-111
Built-in
Dual Burner
PATENTED SHALLOW-DIP-TECHNOLOGY
3
HOT CENTERS
24 in deep
609 mm
1
6
