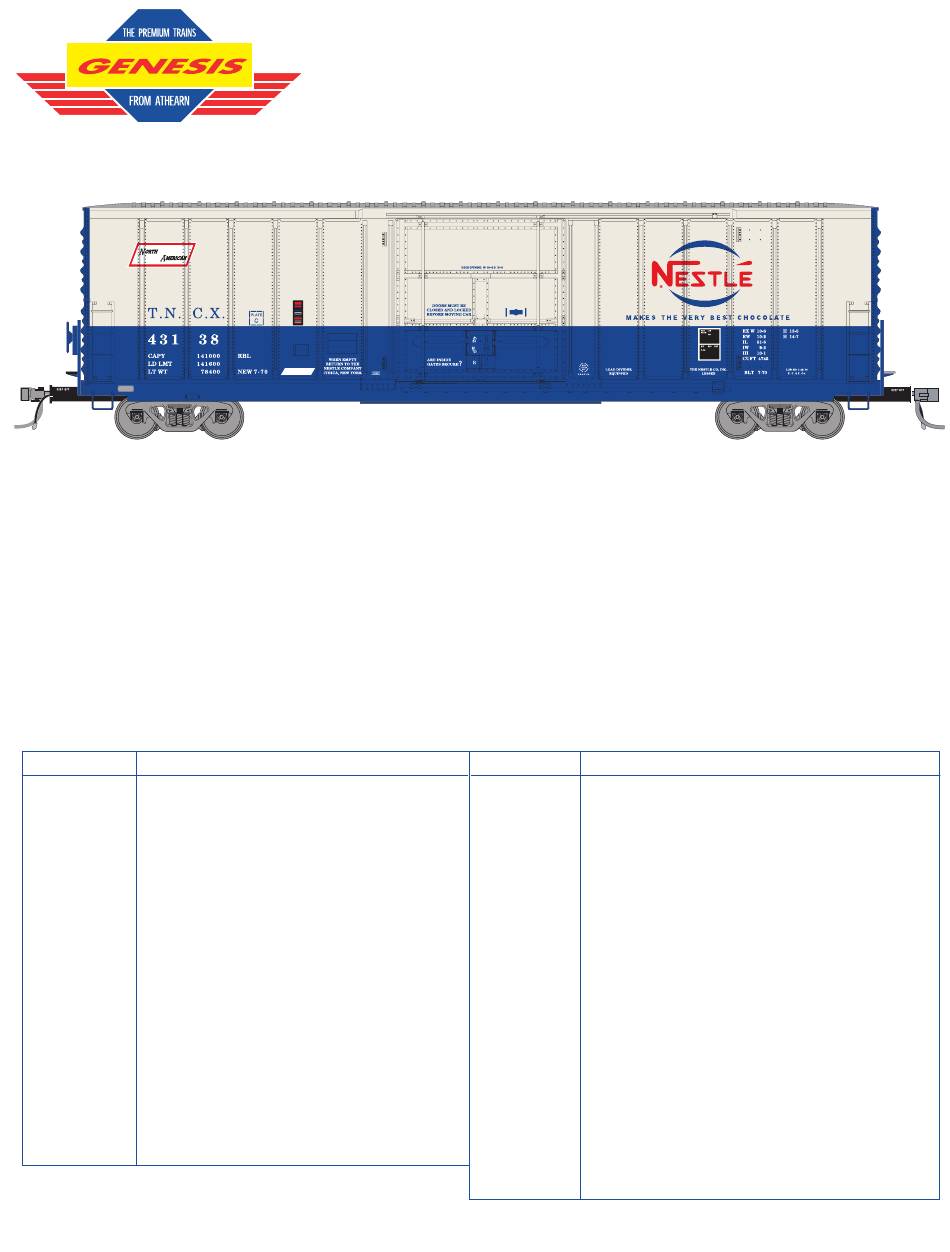

Genesis PACIFIC CAR AND FOUNDRY Assembly Instructions

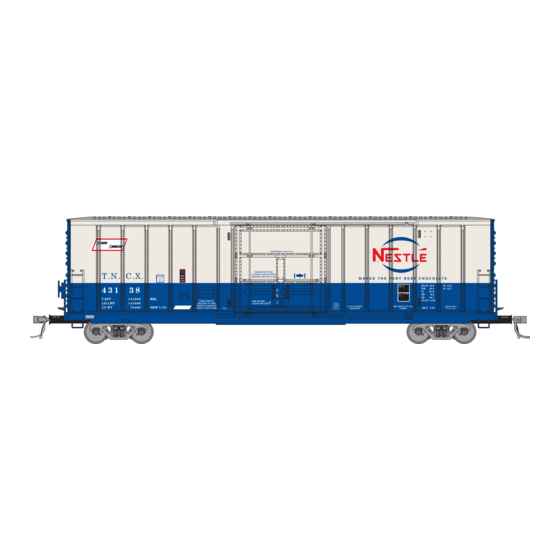

50' EXT. POST BOX CAR WITH 10'6" PLUG DOOR

General Notes

Genesis freight cars are designed and engineered to accurately represent the prototype. Some of the detail is very delicate, especially
the side stirrup steps, ladders and underframe components. Careful handling and attention to these details will prevent damage and
provide troublefree operation and enjoyment of these fine miniature model trains. This Genesis model has been inspected and the
package factory sealed to guarantee quality and ensure customer satisfaction.

Pre-Assembly Notes: Kits

All molded detail parts are designed to press-fit into their mounting holes. Take some time to identify components with assembly draw-
ings. Remove sprue parts only when required for application. Do not attempt to break-off or twist parts from sprues. Sprue cutting
tweezers and/or an extremely sharp hobby knife will help assure success. Tweezers should be used to handle and apply small parts.
Also required for the task are small files; small drill set (Nos. 60-80); pin vise; small screwdriver; A.C.C. (cyanoacrylate) glue; solvent-
type plastic cement; and a small brush.

Parts List

PART NO.
G43300 Body- Undecorated
G43001 Floor
G43002 Underframe
G43003 Ladder/Step Set-
Set Includes:
End Ladder Assy. (2)
Stirrup Steps (4)
G43004 Hardware Set
Set Includes:
G43014 Grab iron (2)
For parts availability and prices, e-mail parts@athearn.com; use the Customer Service link on the website at www.athearn.com, or write to
Assembly Instructions
PACIFIC CAR AND FOUNDRY
•
DESCRIPTION
Side Ladders (4)
Brakewheel
Gear Box
Quadrant
Tackboards (2)
Endwalk Supports (6)
Cut Levers (2)
Cut Lever Brackets (2)
Coupler Covers (2)
Weight Retainers (2)
Athearn Trains 1550 Glenn Curtiss St. Carson, CA 90746
PART NO.
G43005 Brake Set
Set includes:
Brake Cylinder Assy.
Slack Adjuster Assy.
Brake Rod
Triple Valve/Reservoir
Trainline (2)
Hydra-Cushion Cylinder
G43006 Door Rod (4)
G43011 Roof- 15 Panel
G43013 Endwalk Etchings Set
Set includes:
Endwalk- "A" End
Endwalk- "B" End
G42007 Steel Weight
G40096 Truck- 70 Ton Roller Bearing
G40097 Truck- 100 Ton Roller Bearing
G40098 Truck Bearing Cap (Dz.)
99001 Screw- #2 x 3/16" Rnd. Hd. (Dz.)
99015 Screw- #2 x 1/8" Flat Hd. (Dz.)
Coupler- McHenry™ Scale Size
(Not sold separately)
DESCRIPTION
•
