Onset Computer Corporation CTV-A Quick Start Manual

Warranty
This CTV product is warranted to be free from defects in material and
workmanship for a period of five years from the date of original
purchase. During the warranty period Onset will, at its option, either
repair or replace products that prove to be defective. This warranty is
void if the Onset products have been damaged by customer error or
negligence or if there has been an unauthorized modification.
Who do I contact for support?
Contact the company that you bought the loggers from: Onset
Computer Corporation or an Onset Authorized Dealer.
Returning Products to Onset
•
Direct all warranty claims to place of purchase.
•
You must provide proof that you purchased the Onset
product(s) directly from Onset (purchase order number or
Onset invoice number).
•
Before returning a failed unit, you must obtain a Return
Merchandise Authorization (RMA) number from Onset. Onset
will issue an RMA number that is valid for 30 days.
•
You must ship the product(s), properly packaged against
further damage, to Onset (at your expense) with the RMA
number marked clearly on the outside of the package.
•
Onset is not responsible for any package that is returned
without a valid RMA number or for the loss of the package by
any shipping company.
•
Loggers must be clean and free of any toxins before they are
sent back to Onset or they may be returned to you.
Onset Computer Corporation
470 MacArthur Blvd., Bourne, MA 02532
Mailing: PO Box 3450, Pocasset, MA 02559-3450
Tel: 508-759-9500, 1-800-564-4377 Fax: 508-759-9100
loggerhelp@onsetcomp.com www.onsetcomp.com
6225-D MAN-CTV

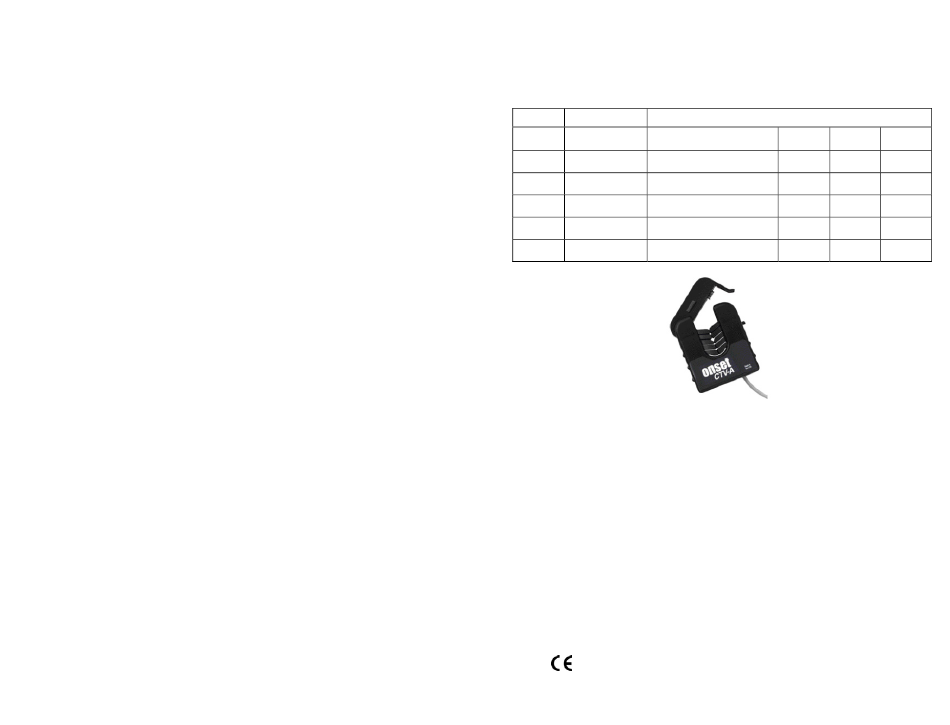

4 Split-core AC Current Transformer (CTV)
Split-core AC Current Transformer (CTV)
AC Amperage to DC Voltage Transducer)
(
Doc. #: 6225-D Part #: MAN-CTV
For use with HOBO

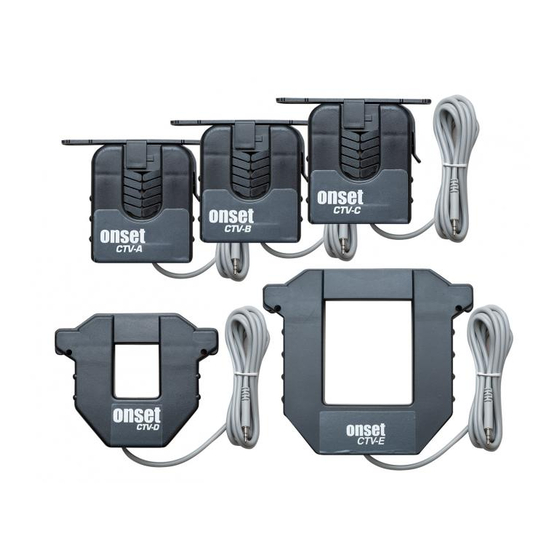

Part Current
Window Size
Number Range
CTV-A 0-20 AMPS AC 28 x 20 mm (1.1 x 0.8 in.)
CTV-B 0-50 AMPS AC 28 x 20 mm (1.1 x 0.8 in.)
CTV-C 0-100 AMPS AC 28 x 20 mm (1.1 x 0.8 in.)
CTV-D 0-200 AMPS AC 39 x 32 mm (1.54 x 1.26 in.)
CTV-E 0-600 AMPS AC 74 x 62 mm (2.92 x 2.46 in.)
Specifications:
•
Accuracy with U12: ±4.5% of full scale (includes HOBO accuracy)
•
Response time (from 10% to 90% of amplitude):
CTV-A approx. 440 milliseconds
-
CTV-B approx. 200 milliseconds
-
CTV-C approx. 100 milliseconds
-
CTV-D approx. 450 milliseconds
-
CTV-E approx. 490 milliseconds
-
•
Input Current: AC current, sine wave, single phase 50 Hz or 60
Hz, load power factor 0.5 to 1.0 lead or lag
•
Output: 0-2.5 VDC
•
Voltage rating: 600 VAC.
•
Temperature rating
CTV-A, -B, -C: -15° to +60°C (+5° to +140°F),
-
CTV-D, -E: -15°: to +40°C (+5° to +104°F)
-
•
Construction: Molded plastic housing for indoor use per UL508
•
Cable: 1.8 m (6 ft.), compatible with U12 family external inputs
•
The CE Marking identifies this product as complying with all
relevant directives in the European Union (EU)
Split-core AC Current Transformer (CTV)
®
U12 Family data loggers
Dimensions
Length Width
79 mm 71 mm
(3.1 in.) (2.8 in.)
79 mm 71 mm
(3.1 in.) (2.8 in.)
79 mm 71 mm
(3.1 in.) (2.8 in.)
100 mm 120 mm
(3.92 in.) (4.72 in.)
135 mm 150 mm
(5.3 in.) (5.91 in.)
Height
36 mm
(1.4 in.)
36 mm
(1.4 in.)
36 mm
(1.4 in.)
29 mm
(1.14 in.)
28 mm
(1.12 in.)
1
