AUDIO-VIDEO INTERFACE
5/951
AUDI - SEAT - SKODA - VW
con/with navigator NAVI PLUS (MFD)
5/952
SKODA
con/with navigator NEXUS (MFD2)
VW
con/with navigator RNS-2 (MFD2)
5/953
AUDI
con/with navigator RNS-E
Istruzioni di montaggio
Instructions manual
Instructions de montage
Montageanleitung
Manual de instrucciones
Leggere attentamente le istruzioni di montaggio al fine di familiarizzare con tutti i controlli.
Carefully read the Mounting Instructions in order to get familiar with the various control keys.
Lire les Instuctions de Montage avec attention, afin de familiariser avec les touches de commande.
Montage-Anweisungen aufmerksam durchlesen und sich gut mit den Kontroll-Knöpfen auseinander setzen.
Leer atentamente las instrucciones de montaje con el fin de familiarizarse con todos los controles.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phonocar 5/951
Summary of Contents for Phonocar 5/951

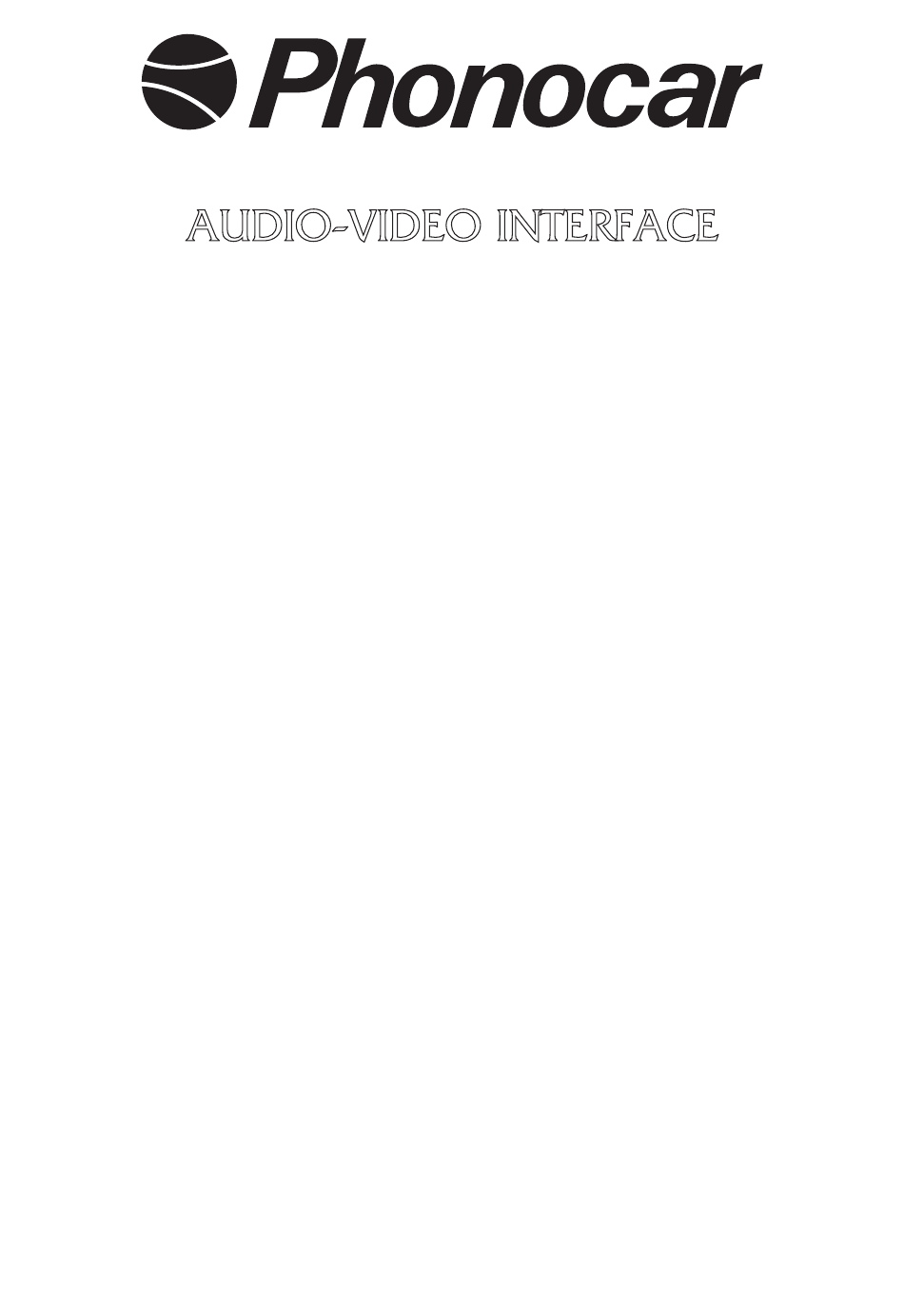

- Page 1 AUDIO-VIDEO INTERFACE 5/951 AUDI - SEAT - SKODA - VW con/with navigator NAVI PLUS (MFD) 5/952 SKODA con/with navigator NEXUS (MFD2) con/with navigator RNS-2 (MFD2) 5/953 AUDI con/with navigator RNS-E Istruzioni di montaggio Instructions manual Instructions de montage Montageanleitung Manual de instrucciones Leggere attentamente le istruzioni di montaggio al fine di familiarizzare con tutti i controlli.
- Page 2 GB - Interfaces allowing to visualize, on the original car-monitors, TV-Tuners, DVD-players, Game Stations and similar units. In this case, the car must be free from rear-cameras. In the presence of this interface, you can directly command the Phonocar-DVD-player VM015 from the original navigation-unit.
- Page 3 ISTRuzIonI dI monTAggIo • INSTRuCTIONS mANuAl INSTRuCTIONS dE mONTAGE • mONTAGEANlEITuNG ISTRUZIONI DI MONTAGGIO -Rimuovere il navigatore dalla vettura. -Effettuare i collegamenti come da schema . -inserire il jack del comando remote all’ingresso del ricevitore IR -Accendere l’apparecchio -Selezionare la sorgente ausiliaria premendo il tasto TV o AUX audio /video MOUNTING –...
- Page 4 SCHEMA DI MONTAGGIO • CONNECTION SCHEmE SCHEmA dE BRANCHEmENT • ANSCHluSS-SCHEmA 5/951 AUDI - SEAT - SKODA - VW con/with navigator NAVI PLUS (MFD) FUNZIONI MEMORIZZATE PER IL COLLEGAMENTO DEL DVD VM015 mEmORIZEd FuNCTIONS FOR THE CONNECTION OF THE dVd-plAyER Vm015.
- Page 5 SCHEMA DI MONTAGGIO • CONNECTION SCHEmE SCHEmA dE BRANCHEmENT • ANSCHluSS-SCHEmA 5/952 SKODA con/with navigator NEXUS (MFD2) VW con/with navigator RNS-2 (MFD2) VIOLA-NERO AZZURRO-BIANCO ARANCIO-BIANCO ARANCIO-NERO FUNZIONI MEMORIZZATE PER IL COLLEGAMENTO DEL DVD VM015 mEmORIZEd FuNCTIONS FOR THE CONNECTION OF THE dVd-plAyER Vm015. FONCTIONS mEmORISEES pOuR lE BRANCHEmENT du lECTEuR dVd mOdElE Vm015 EINGESpEICHERTE FuNKTIONEN FÜR dEN ANSCHluSS dES dVd-plAyERS Vm015.
- Page 6 SCHEMA DI MONTAGGIO • CONNECTION SCHEmE SCHEmA dE BRANCHEmENT • ANSCHluSS-SCHEmA 5/953 AUDI con/with navigator RNS-E FUNZIONI MEMORIZZATE PER IL COLLEGAMENTO DEL DVD VM015 mEmORIZEd FuNCTIONS FOR THE CONNECTION OF THE dVd-plAyER Vm015. FONCTIONS mEmORISEES pOuR lE BRANCHEmENT du lECTEuR dVd mOdElE Vm015 EINGESpEICHERTE FuNKTIONEN FÜR dEN ANSCHluSS dES dVd-plAyERS Vm015.
- Page 7 SCHEMA DI MONTAGGIO PER 2 SORGENTI A/V • CONNECTION SCHEmE FOR 2 SOuRCE A/V SCHémA dE mONTAGE pOuR 2 SOuRCES A / V • mONTAGEplAN FÜR 2 A / V-quEllEN CONNESSIONI CAVI SEGNALE CAN • CAN-SIGNAl CABlE-CONNECTIONS CONNEXIONS CABlES dE SIGNAl CAN • KABEl-VERBINduNGEN dES CAN-SIGNAlS...
- Page 8 • Evitar que los cables se enganchen con los objetos cercanos. S.p.A. - Via F.lli Cervi, 167/C - 42124 Reggio Emilia (Italy) - Tel. ++39 0522 941621 - Fax ++39 0522 942452 www.phonocar.com - e-mail:info@phonocar.it FRANCE Vente et Assistance assurées par le Fabricant italien Tél/Fax N° Vert 0800.90.43.99 www.phonocar.fr •...
