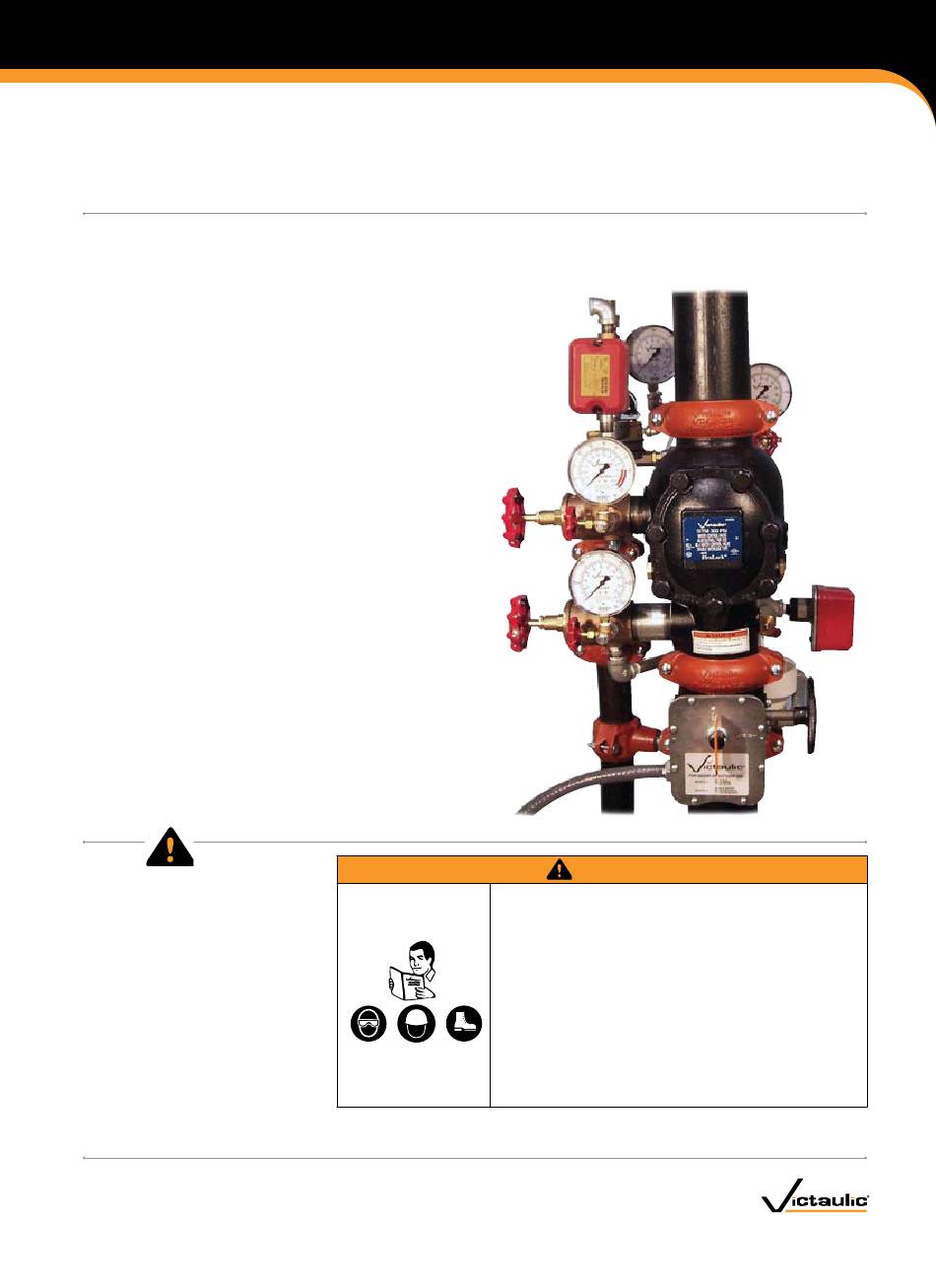

INSTALLATION, MAINTENANCE, AND TESTING MANUAL

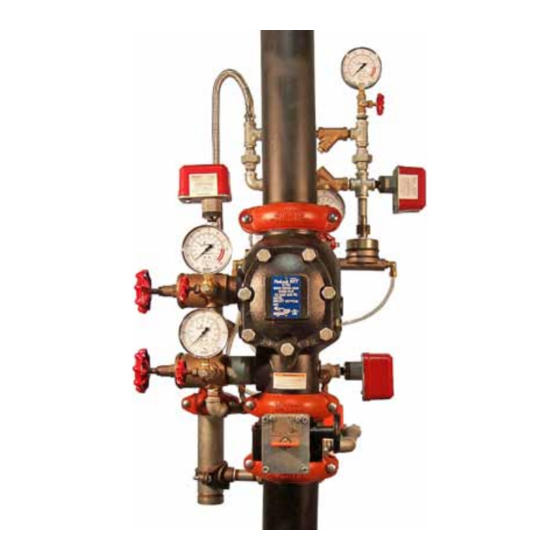

FireLock NXT™ Preaction Valve
with Series 767 Electric/Pneumatic Actuator
SERIES 769
(DOUBLE-INTERLOCKED, ELECTRIC/PNEUMATIC RELEASE)
WARNING
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2007 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
REV_D
HANG THESE INSTRUCTIONS ON THE
INSTALLED VALVE FOR EASY FUTURE REFERENCE
WARNING
•
Failure to follow instructions and warnings can cause product
failure, resulting in serious personal injury and property
damage.
•
Read and understand all instructions before attempting to
install any Victaulic piping products.
•
Wear safety glasses, hardhat, and foot protection.
•
Save this installation, maintenance, and testing manual for
future reference.
If you need additional copies of any literature, or if you have any
questions concerning the safe installation and operation of this
product, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031,
USA, Telephone: 1-800 PICK VIC, e-mail: pickvic@victaulic.com.
I-769P-EPA
