YPHIX 50208520 Installation Manual

Important: R ead All Instructions P rior to Installation

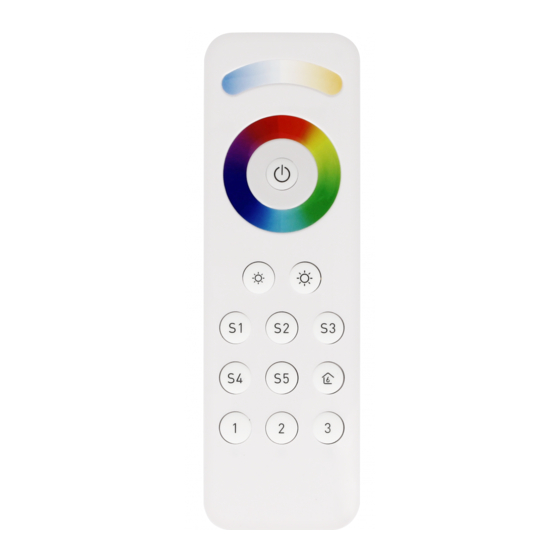

Fu n c t i o n i n t r o d u c t i o n
ON/OFF button
Press and hold down to decrease
light intensity
S1-S5, press and hold down to
save colors, click to recall the
saved colors
Keizer Karelplein 32
6511 NH Nijmegen
The Netherlands
LED indicator
CCT Slider
RGB Color wheel
Press and hold down to increase
light intensity
Click to recall 6 preset
scenes one by one
Group numbers: Click to
choose the group
Front side
3V(2*AAA battery)
Bottom side
YPHIX Productdata
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Protection Grade
• ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
• High sensitive & high stable touch color wheel, fast & precise color control
• Battery powered remote with low power consumption
• Enables to pair ZigBee lighting devices through touchlink commissioning
• Supports find and bind mode to pair with ZigBee lighting devices
• Supports 3 groups for binding max. 30 lighting devices
• With 6 preset scenes, enables to save and recall 5 scenes
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
Safety & Warnings
Zigbee Cluster supported by this remote are as follows:
Input clusters:
• Power Configuration
• B asic
Output clusters:
• Identify • Group
Safety & Warnings
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Operation
1. This Zigbee remote is a wireless transmitter that communicates with a variety of Zigbee compatible
systems. This transmitters ends wireless radio signals that are used to remotely control a compati
sytem.
2. This Zigbee remote supports 3 groups for binging max. 30 lighting devices and enables to control
DIM, CCT, RGB, RGBW and RGB+CCT zigbee lightning devices.
ZigBee 3.0
3V(2*AAA battery)
2.4GHz
30m
0.1%-100%
140x44x17mm
IP20
• Identify • Diagnostics
• Scene • On/off • Level control • Ota • Color control
