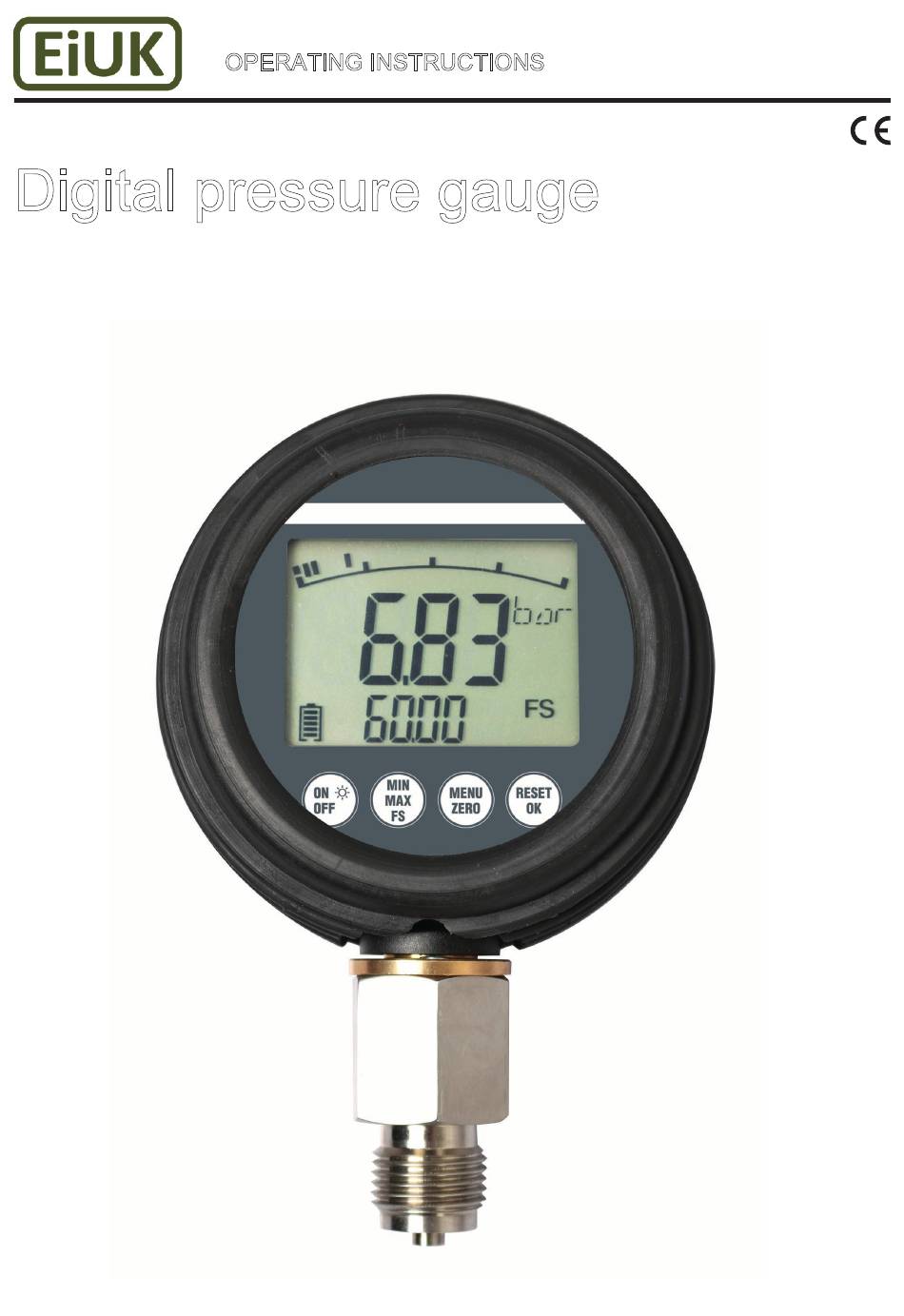

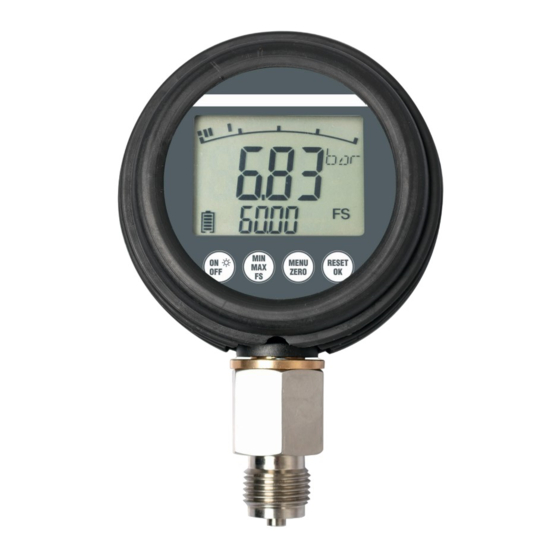

- Page 1 OPERATING INSTRUCTIONS Digital pressure gauge...
- Page 2 Battery compartment on the back of the device, see 5. Changing the battery. - 2 -...
- Page 3 The bar graph graphically depicts the maximum measuring span. The stored MAX value is displayed as a static, individual bar (= drag pointer ① Bargraph function). The display is updated at an interval of 10 milliseconds. (100 measure- ments / second) Displays the current pressure.
-
Page 4: Table Of Contents
Contents Safety provisions ........5 Intended use . -
Page 5: Safety Provisions
1. Safety provisions Safe working with the device is only possible if you read the operating instruc- tions and safety information thoroughly and strictly observe the directions that they contain. Keep the operating instructions for later reference or pass them on to possible new owners. -
Page 6: Intended Use
2. Intended use Digital pressure gauge with MIN/MAX display and accuracy class 0.5 FSO. The MIN/MAX memory is permanently updated and overwritten. The sampling rate is 10 milliseconds (100 measurement values/ second) for measuring dynamic pressure peaks. 3. Initial operation IMPORTANT! You must insert the batteries before use, see point 5. -
Page 7: Battery Display And Battery Replacement
5. Battery display and battery replacement The battery capacity is shown permanently with the battery symbol. – When the battery is empty, the device goes off and "BATT Low" is shown on the display. The batteries – must be replaced. Switch the device off and push the rubber cap towards the rear over the housing. -
Page 8: Functions And Buttons
6. Functions and buttons Button Meaning Function On/Off Briefly key press: Switching the device on/off Lighting Long key press (3 seconds): Background lighting on (for 20 seconds) Minimum Selection of the display value: Maximum MIN, MAX or FS (minimum value, maximum value, full scale). Full scale Display of the maximum measuring span (e.g. - Page 9 - 9 -...
-
Page 10: Setting The Measurement Unit
8. Setting the measurement unit Use the button to switch between the following measurement units: bar, PSI, kPa, MPa, mbar For menu point "Filter" Alternatively: press long (3 seconds) = exit the menu Setting the measurement unit - 10 -... -
Page 11: Setting The Filter Function
9. Setting the filter function Use the button to switch between the following filter functions: 0 = no attenuation, 1 = weak attenuation, 2 = medium attenuation, 3 = strong attenuation The filter function serves to attenuate the measurement value display. from menu item "Unit"... -
Page 12: Calibration
Calibration Info: A calibrated pressure calibration device must be available for recalibration. In the FS CAL menu item, keep keys 2 + 3 pressed simultaneously for 3 seconds to perform a recalibration. Move to the upper calibration pressure point and confirm with approach the lower calibration pressure point and confirm with Info: The upper and lower calibration pressure point depends on the measuring range of the instrument and is preset. -
Page 13: Displaying The Min/Max Pressure
Displaying the MIN/MAX pressure Use the button to access the following values: MIN (lowest measured pressure) MAX (highest measured pressure) FS (full scale = maximum measuring span) MIN/MAX pressure and full scale displays - 13 -... -
Page 14: Maintenance And Storage
Maintenance and storage Only clean the device with a dry, soft cloth. Be careful when cleaning in order to avoid scratching. In case of heavy soiling, the cleaning cloth can be moistened slightly with water. No moisture is allowed to ingress into the inside of the product. - Page 15 Notes - 15 -...
