AC CURRENT TRANSDUCER
OPERATOR'S MANUAL
CT300
CT300
1. Safety Information
The AC current transducer has been design-ed according
to IEC -1010 concerning safety requirements for
hand - held current clamps for electrical measurement
and test.Follow all introduction and operating
require-ments to insure that the current clamp is used
safely and is kept in good operating condition.
1.1 Symbols
Important safety information,
refer to the operating manual.
Double insulation ( Protection classII)
2. Description

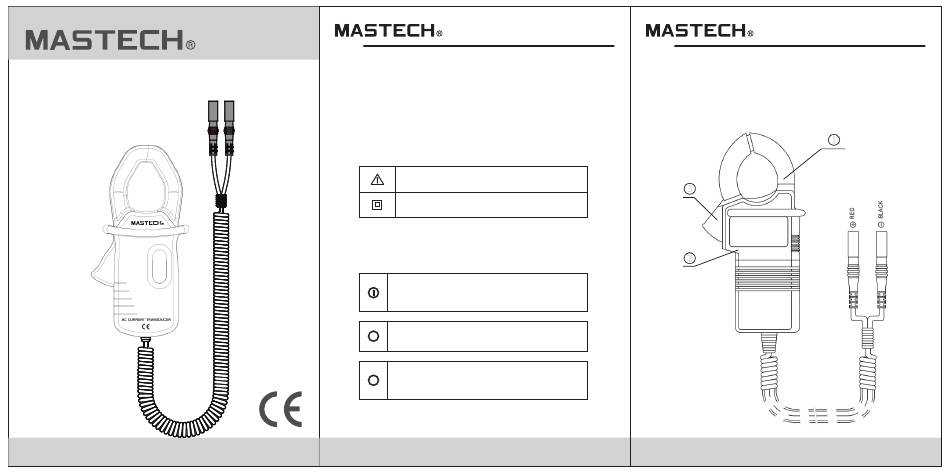

Refer to the Figure 1. and to the following numbered steps
to familiarize yourself with the AC current transducer.
Transformer Jaws
Designed to pick up the a.c. current
following though the conductor.
Hand Guard
2
Designed to protect user for safety.
Trigger
Press the lever to open the transformer
3
jaws.
01
3. Specifications
Accuracy is specified for a period of one year after
calibration and at 18°C to 28°C(64 F to 82 F) with
°
relative humidity to 80%. Accuracy specifications
are given as:
± %
of reading
±
digits
1
3
2
02
°
Advertisement
Table of Contents
Summary of Contents for Mastech CT300
- Page 1 CT300 1. Safety Information 3. Specifications AC CURRENT TRANSDUCER Accuracy is specified for a period of one year after The AC current transducer has been design-ed according OPERATOR'S MANUAL to IEC -1010 concerning safety requirements for calibration and at 18°C to 28°C(64 F to 82 F) with °...
- Page 2 3.1 General 3.2 Electrical Specification 5. Ac Current Measurement CURRENT RANGE: 0.1A - 400A a.c. RMS Set the DMM at ACV function and a relevant Range Accuracy range. OUTPUT VOLTAGE LEVELS: 10mV/A: 1mV a.c. per 0.1 Amp a.c. Connect the plug of transducer with a DMM and ±...
