MATKI ONE
MOSC- CORNER SLIDER AND
MOSCSP- SIDE PANEL
INSTALLATION
PARTS LIST
Please pass the
Guarantee Card
to the customer.
13
Matki PLC, Churchward Road, Yate,
MATKI PLC, CHURCHWARD ROAD, YATE, BRISTOL, BS37 5PL
Bristol BS37 5PL
TELEPHONE:01454 322888 (CUSTOMER SERVICES) EMAIL: techsupport@matki.co.uk
EN 14428:2008+A1
®
0943AF 05/19
Advertisement

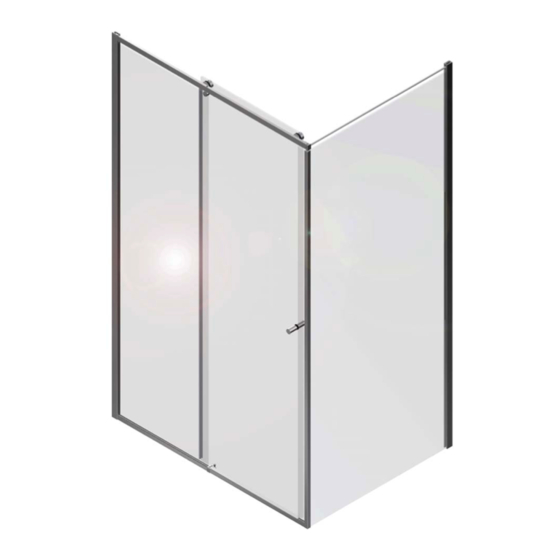

Summary of Contents for Matki One MOSC1000
- Page 1 MOSCSP- SIDE PANEL INSTALLATION PARTS LIST Please pass the Guarantee Card to the customer. Matki PLC, Churchward Road, Yate, MATKI PLC, CHURCHWARD ROAD, YATE, BRISTOL, BS37 5PL Bristol BS37 5PL TELEPHONE:01454 322888 (CUSTOMER SERVICES) EMAIL: techsupport@matki.co.uk EN 14428:2008+A1 0943AF 05/19...
- Page 2 MOSC RH CORNER + MOSCSP MOSC LH CORNER + MOSCSP (AS FACTORY ASSEMBLED) THE MATKI ONE CORNER SLIDER IS FACTORY BUILT AS A LH CORNER. FOLLOW INSTRUCTIONS IN THIS BOOKLET TO REVERSE FOR A RH CORNER.
-
Page 3: Tools Required
CAUTION: TEMPERED GLASS CANNOT BE CUT, POLISHED METAL AND CHROME CAN BE SCRATCHED. AREFULLY REMOVE ASSEMBLY FROM CARTON, DO NOT PLACE GLASS ON HARD FLOOR OR EXPOSE EDGES TO IMPACT. DO NOT CUT TOP TRACK IN ANY CIRCUMSTANCES. DIMENSIONS MATKI ONE CORNER SLIDER Model MOSC1000 978-998 470-490... - Page 4 THIS PAGE SHOWS THE PANEL INSTALLATION FOR A STAGE 1 LH CORNER. REVERSE FOR RH. TOP VIEW FIXED PANEL WALL MOUNT THRESHOLD 2.5mm FIXED PANEL WALL MOUNT THRESHOLD CORNER BRACKET THRESHOLD ADJUSTER Ø6 THRESHOLD This stage is describing the fitting of the Fixed panel wall mount Before fitting the enclosure please check that your product will fit the finished aperture size.(See dimensions) Place the horizontal threshold into position on tray, ensuring the threshold corner bracket is at the corner side of the enclosure (threshold extrusion is unhanded, rotate by 180°...
- Page 5 STAGE 2 THIS PAGE SHOWS THE PANEL INSTALLATION FOR A LH CORNER. REVERSE FOR RH. SIDE PANEL WALL MOUNT Ø6 TOP VIEW SIDE PANEL WALL MOUNT THRESHOLD 20mm TOP VIEW This stage is describing the fitting of the Side panel wall mount Before fitting the enclosure please check that your product will fit the finished aperture size.(See dimensions) Measure the distance from the wall side of the fixed panel wall mount to the end of the threshold (dimension A) and add 20mm (dimension A + 20mm) this gives you the measurement from the Wall side of the fixed panel wall mount to the outside face of the side panel wall mount.
- Page 6 THIS PAGE SHOWS THE PANEL INSTALLATION FOR A STAGE 3 LH CORNER. REVERSE FOR RH. SOAPY WATER VIEW This stage is describing the fitting of the Side panel glass. . Loosen the threshold corner bracket using the 3mm allen key and adjust out for fitting. Apply a bead of silicon around the exposed end face of the threshold track.
- Page 7 THIS PAGE SHOWS THE PANEL INSTALLATION FOR A STAGE 4 LH CORNER. REVERSE FOR RH. DOOR GUIDE INSIDE VIEW SOAPY WATER INSIDE VIEW OUTSIDE FACE This stage is describing the fitting of the fixed panel for a LH Corner, reverse for RH Corner. Before fitting the fixed glass panel adjust the threshold extrusion so that the side panel is at right angles to the threshold extrusion.
-
Page 8: Inside View
THIS PAGE SHOWS THE PANEL INSTALLATION FOR A STAGE 5 LH CORNER. REVERSE FOR RH. OUTSIDE FACE INSIDE VIEW INSIDE VIEW THRESHOLD COVER This stage is describing the fitting of the closure panel for a LH Corner, reverse for RH Corner. Apply a bead of silicon along the outer inside edge of the threshold in the recess provided. - Page 9 THE TOP TRACK IS FACTORY ASSEMBLED FOR A LH CORNER STAGE 6 TO REVERSE THE TRACK FOR RH CORNER SEE STAGE 7 IMPORTANT INSIDE VIEW This stage is describing the fitting of the Top Track. To reverse the Top Track for a RH Corner see Stage 7. Before fitting the top track plumb the glass panels for vertical and ensure the entrance dimension is correct.
- Page 10 READ ONLY IF CHANGING STAGE 7 THE DOOR FOR A RH CORNER MODELS 1200 1000 / 1100 MODEL 1400 / 1500 ONLY 1600 / 1700 180° 180° ROTATE* IMPORTANT INSIDE VIEW This stage is describing how to reverse the top track to a RH corner and the fitting of the Top Track. °...
- Page 11 STAGE 8 THE DOOR IS FACTORY ASSEMBLED AS A RH DOOR OPENING TO REVERSE THE ROLLER INSIDE BLOCKS FOR LH OPENING VIEW SEE DETAIL BELOW (e) DOOR DOOR (AS FACTORY ASSEMBLED) ANTI-CLOCKWISE = ADJUSTS DOOR DOWN CLOCKWISE = ADJUSTS DOOR UP INSIDE INSIDE VIEW...
- Page 12 STAGE 9 INSIDE VIEW MODEL 1100 / 1200 1400 / 1500 1600 / 1700 MODEL 1000 ONLY HANDLE INNER IN DISK KIT ALL CAPS SHOWN ON THIS PAGE OF PARTS CAN BE FOUND IN THE KIT OF PARTS This stage is describing the fitting of the Door Handle and cover caps and brace .
- Page 13 1000 MODEL ONLY STAGE 10 1100 / 1200 / 1400 1500 / 1600 / 1700 MODELS INSIDE VIEW This stage is describing fitting of the Seals and Silicon Apply a bead of silicon along the top of the door guide. Fit the fixed panel vertical seal (shorter of the 3 seals) to the edge of the fixed panel, ensuring it is pressed firmly against the face of the door guide.
-
Page 14: Parts List
DECO DISK COVER RING 8252 A SILVER DECORATIVE PIVOT DISK 8652 A SILVER DECORATIVE HANDLE CAP 8400 A SILVER DIN O-Ring 0140-20 8582 AF MTK1 SLIDER & CURVED DISK DISPLAY PACK 4681 AF MATKI CHROME EMBLEM 1005 CHROME 1000 HANDLE INNER 8456 AF... - Page 15 SLIDER SIDE PANEL WALL MOUNT TOP CAP 8406 A SILVER M5 x 20 CSK SKT 1503 A SILVER MATKI ONE SLIDER DISK KIT OF PARTS 7375 (SILVER/BLUE/GREEN/RED/GOLD/COPPER/BRASS) 7375 WHITE/BLACK SLIDER KIT OF PARTS 1100,1200,1400,1500, 1600, 1700 (7365) / 1000 (8923) ITEM...
