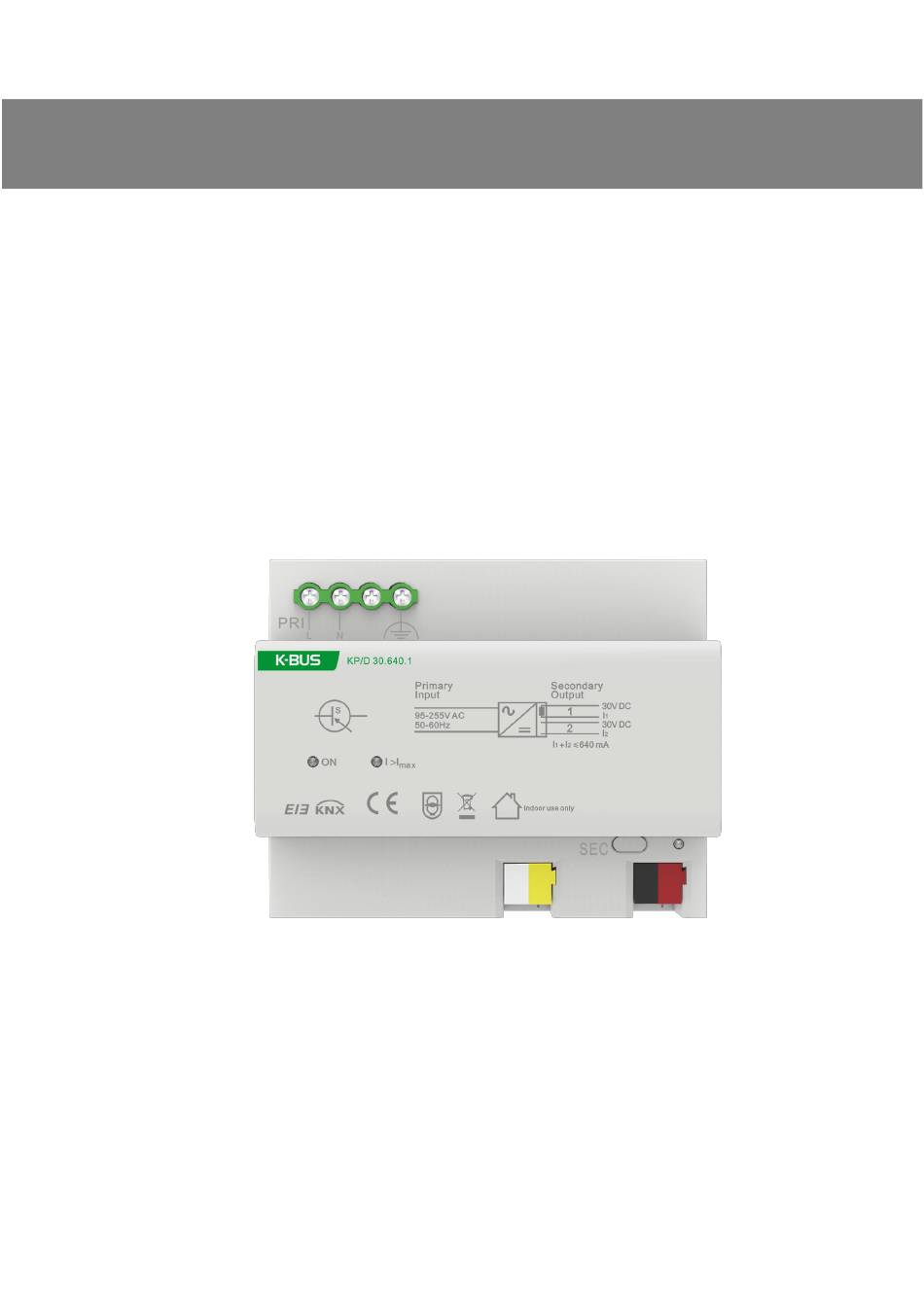

- Page 1 User Manual K-BUS ® Power Supply_V1.1 KP/D 30.640.1 KNX/EIB Home and Building Control System...
- Page 2 Attentions 1. Please keep devices away from strong magnetic field, high temperature, wet environment; 2. Do not fall the device to the ground or make them get hard impact; 3. Do not use wet cloth or volatile reagent to wipe the device; 4.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction----------------------------------------------------------------------------------------------------------------1 Chapter 2 Technical Parameter--------------------------------------------------------------------------------------------------- 2 Chapter 3 Dimension and Connection Diagram---------------------------------------------------------------------------- 3 3.1. Dimension drawing----------------------------------------------------------------------------------------------------------- 3 3.2. Connection Diagram--------------------------------------------------------------------------------------------------------- 4 Chapter 4 Normal Working Test---------------------------------------------------------------------------------------------------4... - Page 4 Important safeguards 1) Before use, please read this instruction carefully and use the power supply strictly according to the instruction. 2) This power supply is for indoor use only and shall be installed in distribution box which can provide the protection mechanism for avoid electric shock. 3) Please keep this equipment from humidity.
-
Page 5: Chapter 1 Introduction
K-BUS ® KNX/EIB Power Supply Chapter 1 Introduction KNX power supply produces and monitors KNX system voltage. There are two connection terminal of the output, one for KNX bus supply and signal transmission, one for auxiliary power supply, can provide 30V DC voltage with terminal device.The bus connection terminal has integrated the reactor inside the power supply;... -
Page 6: Chapter 2 Technical Parameter
K-BUS ® KNX/EIB Power Supply Chapter 2 Technical Parameter Power supply Input voltage 95V ~255 V AC，50/60Hz Power loss <6 W Efficiency Output KNX output (DPSU) 1 fold with integrated choke KNX nominal voltage 30 V DC +1/–2 V, SELV... -
Page 7: Chapter 3 Dimension And Connection Diagram
K-BUS ® KNX/EIB Power Supply Chapter 3 Dimension and Connection Diagram 3.1. Dimension drawing... -
Page 8: Connection Diagram

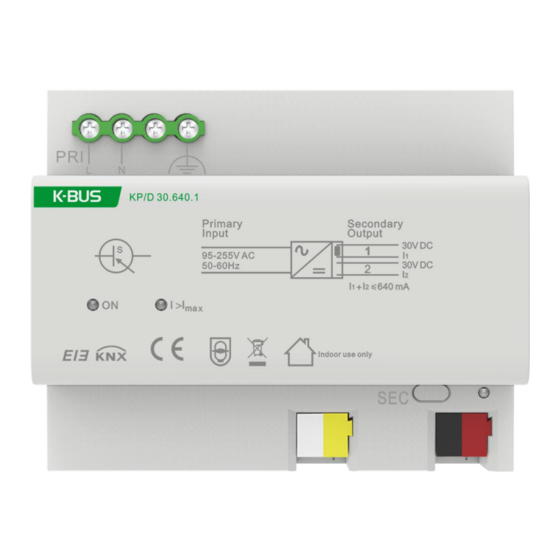

K-BUS ® KNX/EIB Power Supply 3.2. Connection Diagram 1. Reset push button 2. Red LED (Reset) 3. Bus connection terminal (KNX output) 4. Connection terminal (auxiliary voltage output) 5. Mains supply ON: Green LED（output voltage is OK） I>I : Red LED（overload/ short circuit）...
