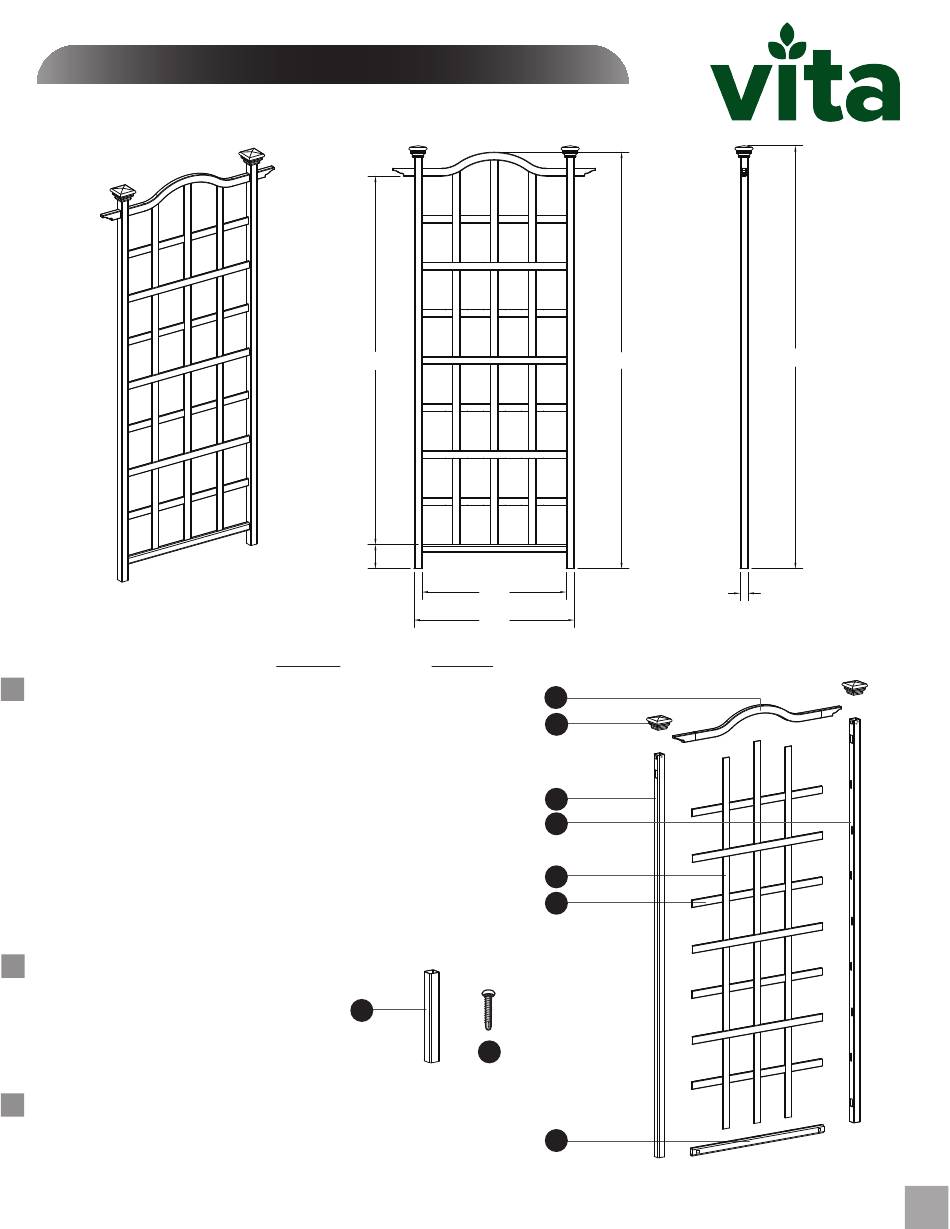

A S S E M B LY I N S T R U C T I O N S

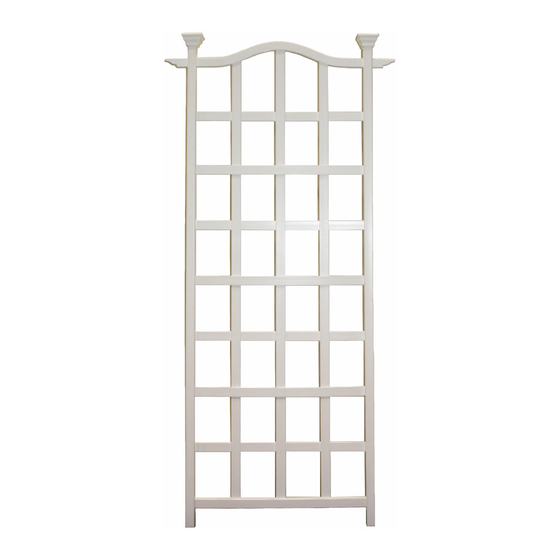

The London Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at
1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).
1. Arched Top Rail (1) -
10857
2. Post Caps (2) -
10748-1
3. Post - Left (1) -
10858
4. Post - Right (1) -
10859
5. Vertical Spindles (3) -
10860
6. Horizontal Spindles (7) -
10861
7. Bottom Rail (1) -
10862
8. Ground Mounting Extensions (2) -
9. 5/8" (16 mm) Self-Auguring Stainless Steel Screw (12) -
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' (1.5 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling component.
69 in
(175 cm)
4.5 in
(11 cm)
27 in
(69 cm)
30 in
(76 cm)
10863
20016
8
9
Not to Scale
78 in
(198 cm)
1
2
3
4
5
6
7
www.wearevita.com
79.2 in
(201 cm)
1.5 in
(4 cm)
1
V2.3/061020
Advertisement
Table of Contents
Summary of Contents for vita London Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S The London Trellis www.wearevita.com 79.2 in 78 in 69 in (201 cm) (198 cm) (175 cm) 4.5 in (11 cm) 27 in 1.5 in...
- Page 2 Insert the seven horizontal spindles as shown aside. Short Spindle Continue assembly by inserting the top arched rail end into the post and progressively into each of the vertical spindles. Proceed to attach the second post to the trellis assembly as shown below. The London Trellis...
- Page 3 Ensure the trellis posts and rails are square to each other. Install Post Caps Push the post caps to the posts as illustrated. 1915 Dove St., Port Huron MI USA 48060 The London Trellis Toll Free Phone: 1 800 282 9346 Toll Free Fax: 1 877 464 9286...
- Page 4 Mounting Into the Ground Trellises must be well secured in the event of high winds, etc. We have provided two ground mounting extensions for securing the trellis either into the ground or into a concrete footing. If you are installing your trellis directly to the wall of your home, or on a wood deck or concrete surface, please see your hardware store for the appropriate galvanized bracket hardware.
