dormakaba registration unit 90 01
Quick Guide

About this quick guide

Validity
This quick guide describes the product:
Product designation
dormakaba registration unit 90 01
Product ID
9001-K6
Item number
04079003
Date of manufacture
From February 2020
Target group
This quick guide should only be used by skilled persons trained by
the manufacturer.
Supplementary documentation
The registration unit operates as a peripheral component to a par-
ent control unit. The essential system functions can therefore be
found in the technical manual for the parent unit.
Additional documentation is available on the Internet at the
dormakaba website. The technical manuals are located in a protec-
ted area. They can be accessed via the user account of trained pro-
fessionals. However, you can also create a temporary account.
https://www.dormakaba.com/extranet-emea-en

Safety instructions

Designated use
This product is intended for use as specified and explained in the
Product description section only. Any other use is considered non-
designated use. The manufacturer is not liable for any damage or
injury due to non-designated use. The user/facility operator is the
sole person to bear risks for non-designated use.
Staff qualification
The actions described in this quick start guide must only be carried
out by skilled persons in accordance with EN 62368-1.
Skilled person is the designation for people who have the appropri-
ate technical training and experience in setting up the equipment.
Skilled persons are expected to use their training and experience to
identify any risks to themselves and others that may arise while
carrying out these activities, and to minimise these risks as far as
possible. It is the skilled person's responsibility to ensure that the
conditions stated by the manufacturer and the applicable regula-
tions and standards are complied with when carrying out these ac-
tions.

Assembly and installation

The product should only be installed in locations which fulfil the en-
vironmental and technical conditions specified by the manufac-
turer.
The manufacturer is not liable for damage arising due to improper
handling or incorrect installation.
Environmental protection
Do not dispose of the product in your domestic waste, but have it
recycled.
04047655 - 01/2020

ESD protective measures

NOTICE
Danger for electronic components due to electrostatic discharge.
Improper handling of printed circuit boards and components may
cause damage leading to complete failure or malfunction of the
device.
Applicable ESD protective measures must be observed and ap-
plied when using electronic components.

Product description

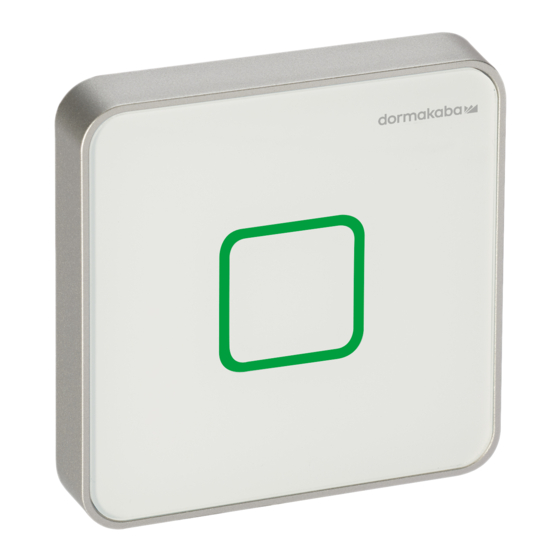

The registration unit is a remote reader for authorization checking
within an access control system.
The registration unit enables the contactless reading and writing of
RFID media as well as access via a smartphone (Mobile Access).
The registration unit supports the following technologies:
RFID MIFARE DESFire/Classic
RFID LEGIC advant/prime
NFC (Android Smartphone)
Bluetooth Low Energy (Android Smartphone + iPhone)
The actually usable technologies depend on the system solution in
which the registration unit is integrated.
The registration unit is connected to a superior control device using
a coaxial cable.
The registration unit is installed directly on the wall in the door
area.
The registration unit is equipped with a light icon (red/green) and a
buzzer for optical and acoustic signalling.

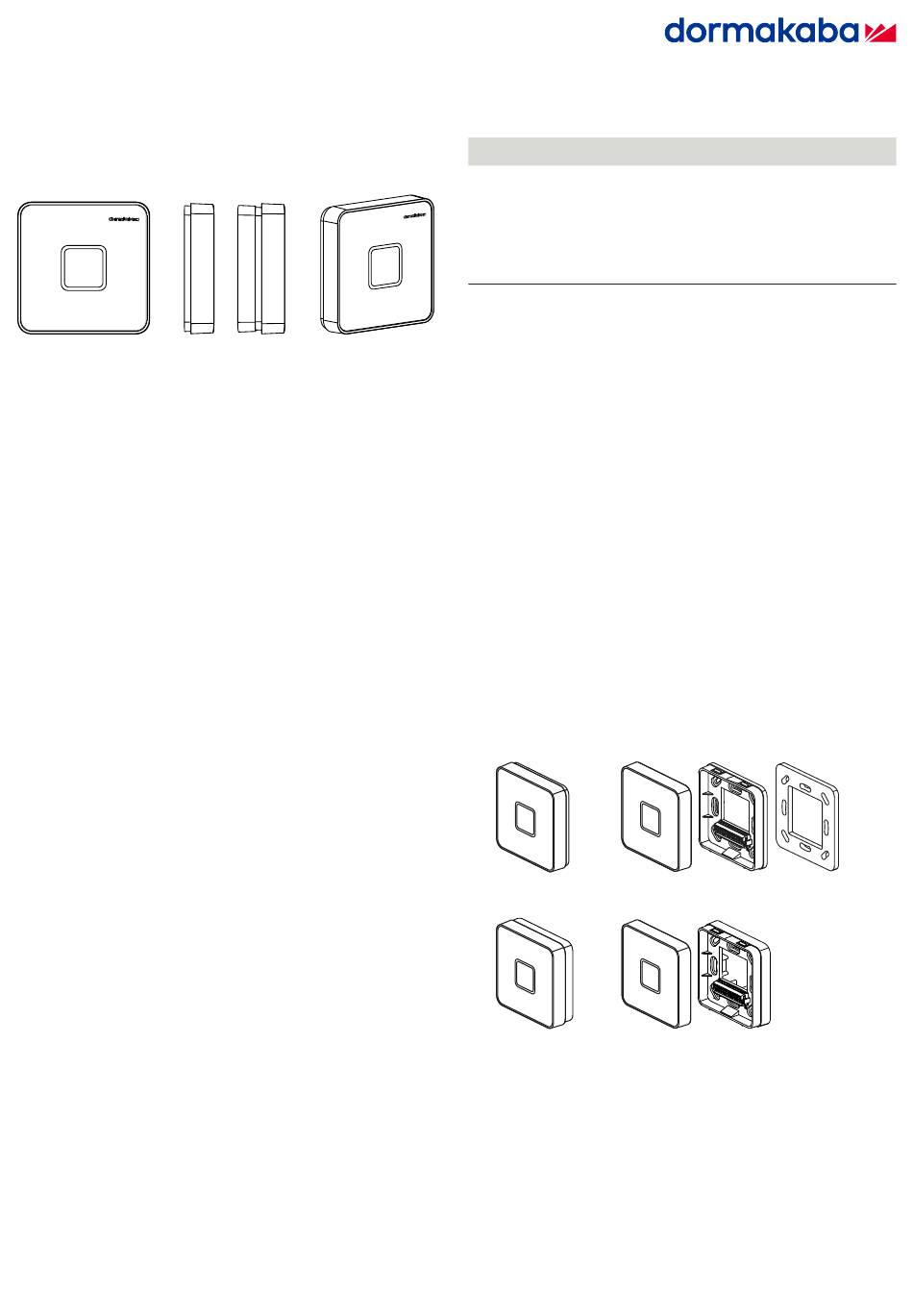

Product versions

The product is available for the following installation variants:
back housing (19,4 mm) for flush cable mounting
back housing with spacer frame (26,4 mm) for surface cable
mounting
The product is available in the following color variants:
Black/white aluminum (RAL9005/9006)
White/white aluminum (RAL9016/9006)
1/4
