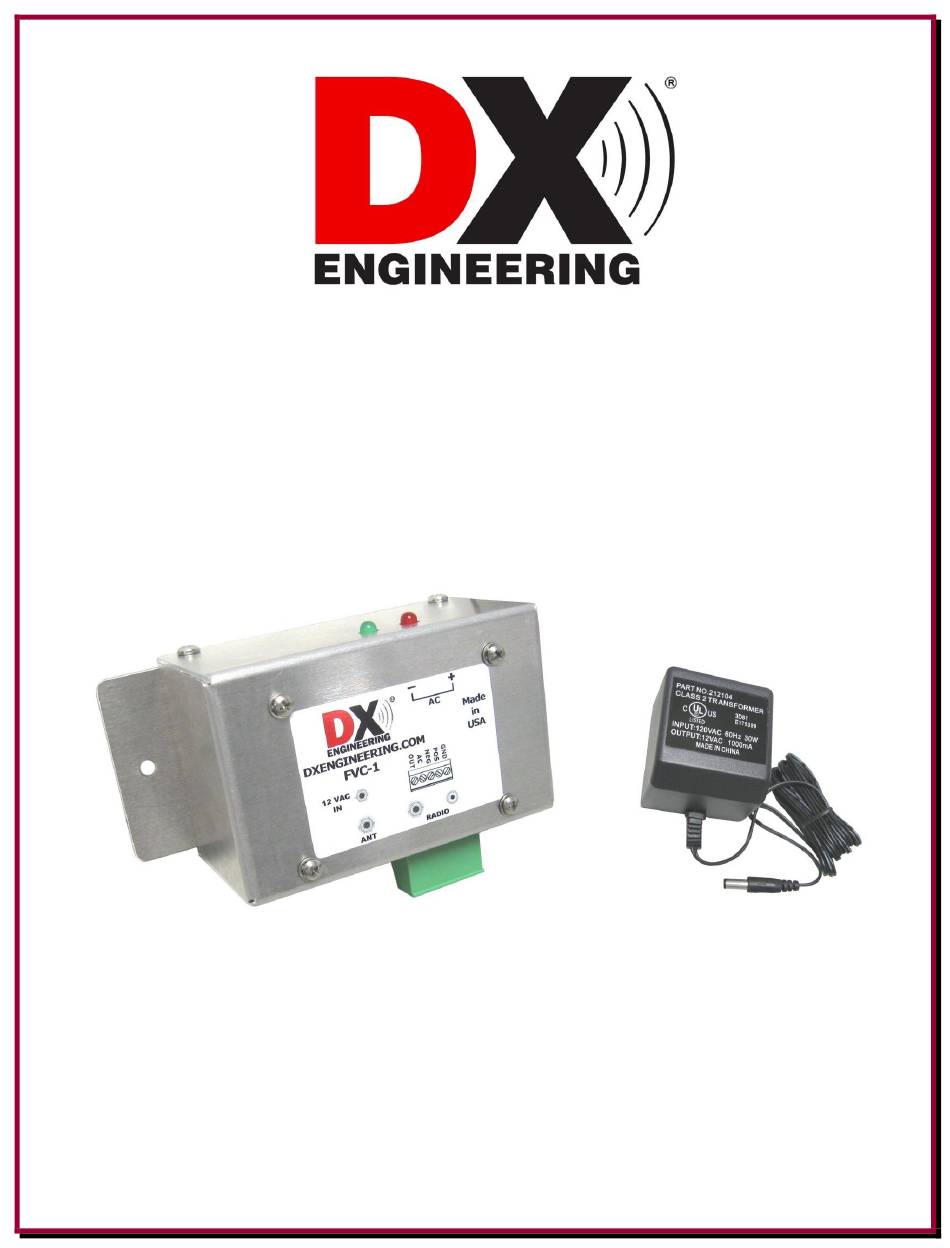

It is used to control receive antenna switching devices through the feedline or on a two conductor control cable. The DXE-FVC-1 converts +12 Vac voltage input to fuse-protected 0V, +12 Vdc, −12 Vdc and 12 Vac output voltages. The voltage output of the DXE-FVC-1 is simultaneously sent on the receive feedline through the ANT port F connector and on the OUT pin of the removable 5-terminal rear- panel connector for use with a two-conductor control cable.
Page 3
Description Standard 2.1 mm connector for 12 Vac input 12 VAC IN Included with the DXE-FVC-1 is a 12 Vac wall transformer OUT-AC-NEG-POS-GND Removable control cable input connector F Connector for 75-ohm coaxial cable from the DXE-FVC-1 connection to receive antenna system...
Figure 1 - DXE-FVC-1 removable connector The green connector on the rear of the DXE-FVC-1 is a two part polarized connector. This connector, for the control wires, is removed by pulling it straight off. This will allow easy wire placement or servicing as needed. When pushing the connector back in place, ensure you press straight inward.
SP4T rotary switch or a push-button switch arrangement. Note: The DXE-FVC-1 must be powered by 12 Vac in order to operate no matter which way JMP1 is set. BCD control interface systems require a 3-conductor control cable. 1-of-4 logic requires a 4- conductor control cable.
Page 6
The DXE-CC-8A Control Console may be used to provide the voltage or a user supplied switch may be used to provide the voltage or grounding, required by the DXE-FVC-1 input in order to control the output. The following tables show the input and output combinations for both schemes.
This is accomplished by swapping the POSitive and NEGative wires on the DXE-FVC-1 unit for the configuration examples in Figures 7, 8 and 11. The polarity information is clearly noted on each diagram in the small tables labeled "Control Cable Wiring".
Page 8
RMS or average reading DVM, the normal DC output of the DXE-FVC-1 will indicate a nominal +/– 6 Volts. The AC voltage will measure 12 Vac. The above diagram is the 1 of 4 grounding logic hook up scheme using...
Every effort is made to supply the latest manual revision with each product. Occasionally a manual will be updated between the time your DX Engineering product is shipped and when you receive it. Please check the DX Engineering web site (www.dxengineering.com) for the latest revision manual.
Page 10
Figure 5 depicts a typical DXE-RBSA-1P Reversible Beverage System layout. A DX Engineering DXE-FVC-1 Feedline Voltage Coupler is used to provide the switching voltage on the feedline required for the DXE-RBSA-1P system to reverse directions. Figure 5 - Typical Reverse Beverage System Layout...
Page 11
Figure 6 shows a DXE-FVC-1 Feedline Voltage Coupler used to supply controlling voltages for a Four-Direction Beverage System using two DXE-RBSA-1P Reversible Beverage Systems, along with a DX Engineering DXE-RLS-2, 2-port receiving antenna switch, to build a four direction Beverage system using a single feedline. One or more DXE-RLS-2’s can be used to expand larger Beverage arrays and share the feedline back to the operating position.
Page 12
Figure 7 has the DXE-FVC-1 Feedline Voltage Coupler used for controlling a DXE-RFS-TS2P Complete Receive Four Square Array Package. Figure 7...
Page 13
Figure 8 uses a DXE-FVC-1 Feedline Voltage Coupler to supply the switching voltages for a system that has four different receive ports using three DXE-RLS-2 Two Port Receive Antenna Switches, one modified internally (refer to the DXE-RLS-2 manual). This four position switching system may be used for four antennas or four radio receivers.
Page 14
Figure 9 has the DXE-FVC-1 Feedline Voltage Coupler providing the control voltages for a Single Transmit Antenna System using a DXE-RBS-1 Reversible Beverage Antenna System with the DXE-RTR-1 Receive Antenna Interface for transceivers which lack a receive antenna input. Figure 9...
Page 15
Figure 10 uses the DXE-FVC-1 Feedline Voltage Coupler to control two Single Direction Beverage Antenna Systems. Figure 10...
Page 16
Figure 11 uses the DXE-FVC-1 Feedline Voltage Coupler to control a Two Element Dual Direction Offset Beverage Phased Array. Figure 11...
Install one or more RLS-2’s to expand larger Beverage arrays and share the feedline back to the operating position. The DX Engineering FVC-1 Voltage Coupler can be used to supply the control voltages through the feedline to control 4-...
