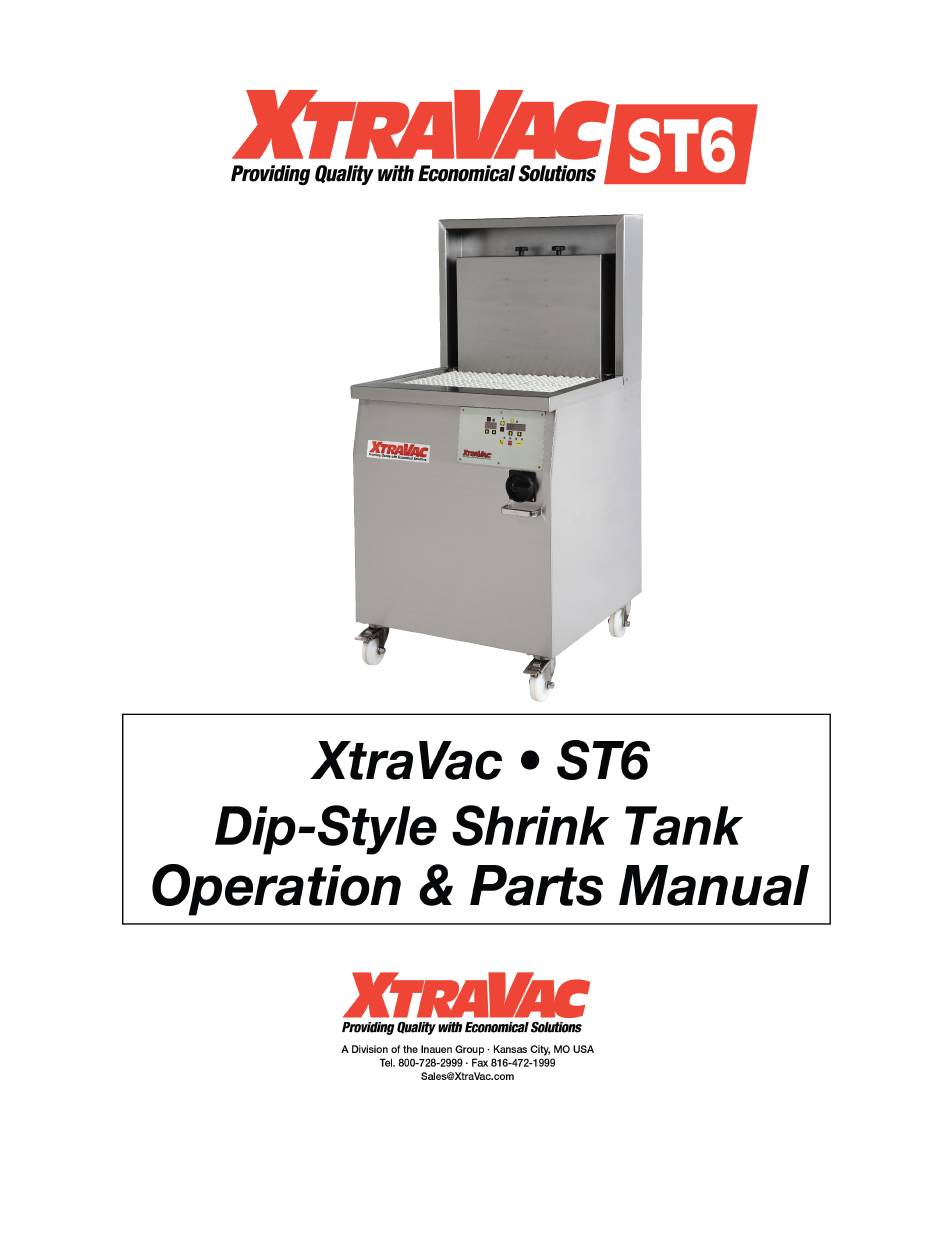

- Page 1 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
- Page 2 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac ST6 Shrink Tank Machine 1. Power requirement: Voltage: Look at the nameplate Current: Look at the nameplate Frequency: 50/60Hz Phase: 3Ø Maker sure the power is correct and the normal rated power is sufficient, so you could connect the power to the machine.
- Page 3 XtraVac ST6 Shrink Tank Operation and Parts Manual INCREASING KEY REDUCING KEY PROGRAM / TIME DISPLAY TEMP. SETTING KEY STOP START SEMI / AUTO KEY (TO PRESS IT WHEN MACHINE RUNS IN AUTO MODE) SEMI MODE : STOP KEY STOP...
- Page 4 XtraVac ST6 Shrink Tank Operation and Parts Manual (1) ts: Temp. Setting: It is preset 85℃ (2) td: Temp. Difference setting: it is preset 1℃ (3) AH: High Temp. Alarm setting: it is preset 99℃ (4) AL: Low Temp. Alarm setting: it is preset 40℃...
- Page 5 XtraVac ST6 Shrink Tank Operation and Parts Manual 5.2: Time setting key : 5 partitions display，the 2 left partitions display is for program and the 3 right partitions display are for time (unit: second) Operation：Press the key in 3 seconds，the display twinkles one...
- Page 6 XtraVac ST6 Shrink Tank Operation and Parts Manual Error Codes AH : temperature max AL : temperature min Ht : temperature max duration Lt : temperature min duration E1H : thermocouple broken or current temperature above AH E1L : thermocouple broken or current temperature below AL EAH : if E1H keep displaying without reset til duration time of Ht.
- Page 7 XtraVac ST6 Shrink Tank Operation and Parts Manual How to clear the EOL when the cycle time is reached to the setting time. For example: it set 1002 cycles on this PC Board. So the machine would stop when it runs to 1002 cycles and the display would appear EOL.
- Page 8 XtraVac ST6 Shrink Tank Operation and Parts Manual 3. If you would like to change the cycle times. Pls do the following: To press the Time Setting Key 4 times and then to press the Increasing Key on the left and right display to reset the times for changing the lubricant oil. After finishing the cycles time setting, pls put the Time Pressing Key again to complete the set up. 4. For example this display means the cycle time is 3,201,002. In fact you could set the cycle time very big numbers, so the machine would be not stopped when operation often.
- Page 9 XtraVac ST6 Shrink Tank Operation and Parts Manual STOP S TART 1.PLATFORM 6.POWER LINE 1-1.PLATFORM DISMANTLE SCREW 7.WATER IN 1-2.PLATFORM DISMANTLE SCREW 8.WATER OUT 2.MAIN SWITCH 9.WATER OVERFLOW 3.MAIN SWITCH PROTECT HANDLE 10.TEMP SENSER 4.CONTROL PANEL 11.LIFT AND DOWN AXLE 5-1.HEATER...
- Page 10 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac ST6 – A Spare Parts List Description P a r t N u m b e r Handle XVT464470 Spring Washer XVT72931 Hex. Screw XVT76760 Knob XVT73757 Hex. Nut XVT77271 Hex. Nut...
- Page 11 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
- Page 12 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac ST6 – B Spare Parts List Description P a r t N u m b e r Description Part Number Lifting Shaft Rock Wool XVT77310 XVT77300 Connecting Block Rock Wool XVT77310 XVT77301 Inner Hex.
- Page 13 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac ST6 – C XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
- Page 14 XtraVac ST6 Shrink Tank Operation and Parts Manual Spare Parts List Description P a r t N u m b e r XVT458060 Round Head Screw XVT76117 Front Panel XVT76116 PC Board Main Switch XVT73759 Hex. Screw XVT75412 Spring Washer...
- Page 15 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
- Page 16 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac ST6 – D Spare Parts List Description Part Number Control box XVT464041 Gland XVT466372 Contactor XVT46480 Contactor XVT468607 No fuse breaker XVT71327 Overload Relay XVT71328 Terminal block (green) XVT99447 Terminal block...
- Page 17 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
- Page 18 XtraVac ST6 Shrink Tank Operation and Parts Manual XtraVac Packaging Machines 419 E. 11 Ave North Kansas City, MO 64116 USA +1 (800) 728-2999 Sales@XtraVac.com ST6 Shrink Tank...
