• Wireless controllable with a Android / iOS smart device
• No need for an external gateway device
• Forms automatically a wireless communication network with up
to 250 nodes
• Small form factor for luminaire installation
• 4 PWM outputs
• Easily implemented RGB and colour temperature controls
• Device firmware can be updated over-the-air
• 5-year guarantee
È
Standards, page 4
Data sheet 12/19-CO106-5
Subject to change without notice. Information provided without guarantee.
basicDIM Wireless
Casambi Ready

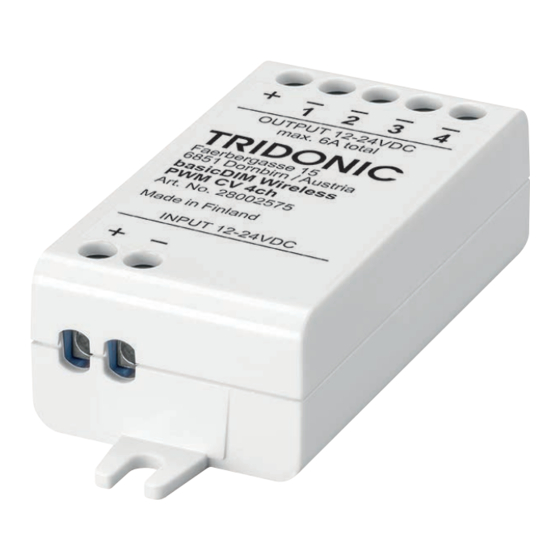

basicDIM Wireless PWM CV 4CH
Casambi Ready wireless module
www.tridonic.com
1
Advertisement
Table of Contents
Summary of Contents for Tridonic basicDIM Wireless PWM CV 4CH

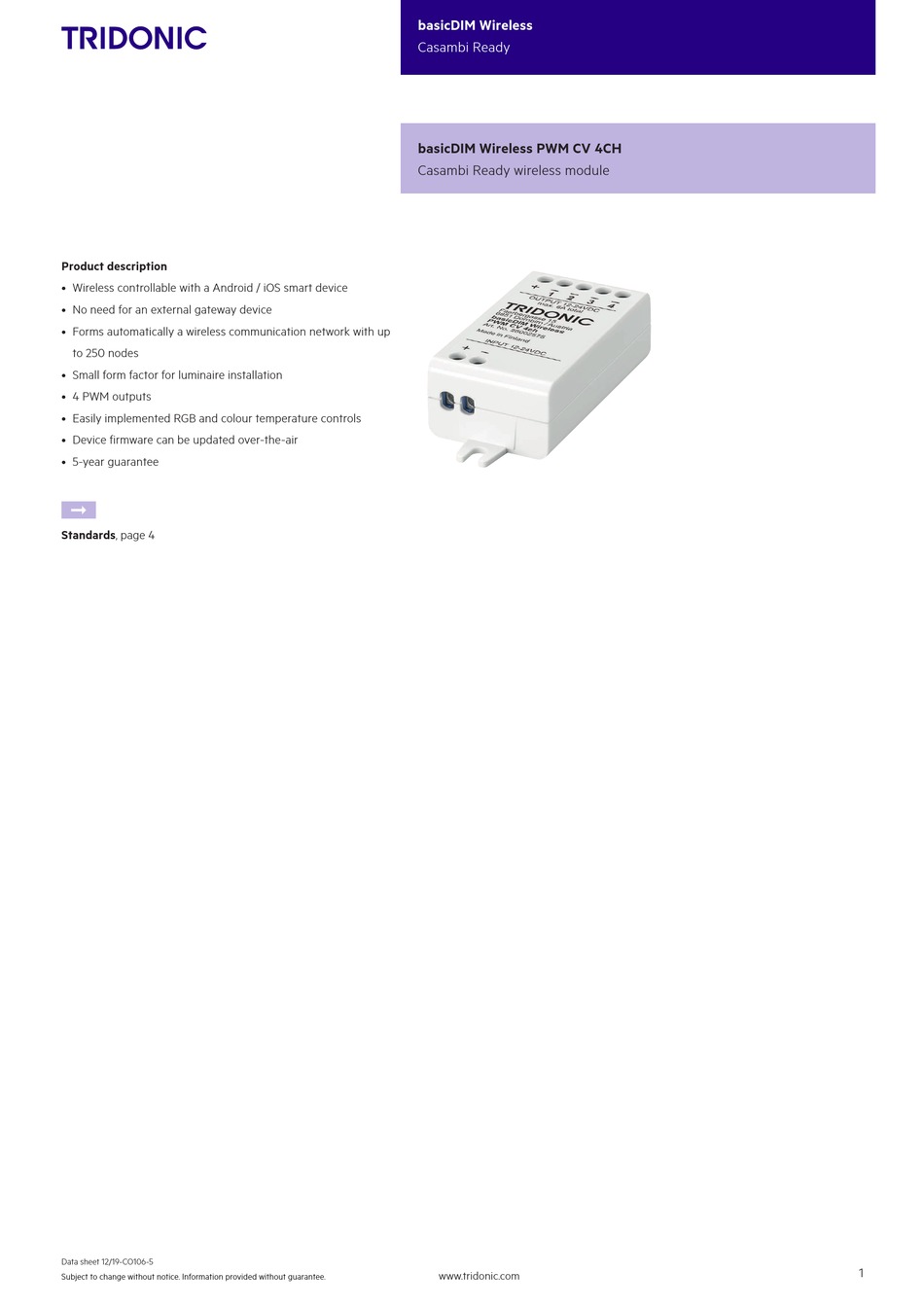

- Page 1 Wireless Casambi Ready basicDIM Wireless PWM CV 4CH Casambi Ready wireless module Product description • Wireless controllable with a Android / iOS smart device • No need for an external gateway device • Forms automatically a wireless communication network with up to 250 nodes •...
- Page 2 Wireless Casambi Ready basicDIM Wireless PWM CV 4CH Casambi Ready wireless module Technical data Supply voltage DC 12 – 24 V Max. input current Typ. power input on stand-by < 0.3 W Output voltage DC 12 – 24 V...
- Page 3 Black 50 pc(s). 0.078 kg basicDIM Wireless User Interface white 28002420 White 50 pc(s). 0.078 kg Depends on production number, see data sheet basicDIM Wireless User Interface. Data sheet 12/19-CO106-5 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 4 Connect the LED load cables accordingly. 2.1 Description The outputs of the basicDIM Wireless PWM CV 4CH can be configured for The basicDIM Wireless PWM CV 4CH module is a Bluetooth controlled, different applications, such as 4-channel RGBW, 3-channel RGB and four channel PWM dimmer for constant voltage LED loads, such as LED 2-channel TW.
- Page 5 Also the device should be under license. placed as far away from any vertical metal structures as possible. Tridonic GmbH & Co. KG is a subsidiary of Zumtobel Group AG. Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
