Summary of Contents for ROCKSIDE VULCAIN V335

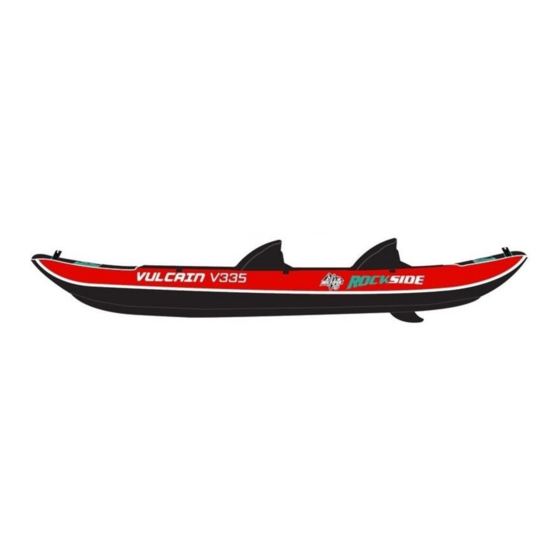

- Page 1 USER GUIDE ROCKSIDE INFLATABLE KAYAK VULCAIN V335 / VS335 SUPERCHARGED GRAND VOYAGER GV410 / GVS410 SUPERCHARGED Version EN...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. General information 2. Usage 3. Technical specifications 4. Builder’s plate 5. Fin setup 6. Inflation 7. Seats setup 8. Drain system 9. Deflation 10. Folding 11. Storage 12. Repairs 13. Warranty... -
Page 3: General Information
Please refer to the regulations in force in the country of use of the inflatable canoe kayak. Congratulations on your purchase of a Rockside brand product. Rockside looks forward to providing you with quality products. This one represents an investment: it deserves all your attention and requires some care. -
Page 4: Usage
2. USAGE BEWARE OF WINDS AND CURRENTS! Be aware of local regulations and hazards related to this sport and water activities. Check with local authorities about your sailing area, tides and currents. Don't make assumptions about your strength, stamina or skills. ... -
Page 5: Builder's Plate
4. BUILDER’S PLATE Number of Inflation people sequence compressor forbidden Max. air pressure Max. load Serial number capacity... -
Page 6: Fin Setup
5. FIN SETUP Choose a smooth and clean surface to unfold your kayak. The use of the fin is recommended for use in deep water (lake, sea...) where it keeps the kayak in a straight line. It is not recommended to install the fin for a practice in shallow water or river. -
Page 7: Inflation
If the product has been stored at a temperature below 0°C, place it in a room at 20°C for about 12 hours before unfolding it. Inflate it with a Rockside pump or any other pump designed to inflate boats, pool items, beds, camping mattresses or other low pressure inflatables. - Page 8 Side bladder Bottom floor 4: Inflate the side bladders: 5: Inflate the bottom floor: Air pressure V335 & GV410: Air pressure V335 & GV410: 1.45 psi (0.1 bar) 1.45 psi (0.1 bar) Air pressure Supercharged Version: Air pressure Supercharged Version: 7.00 psi (0.48 bar) 1.45 psi (0.1 bar)
- Page 9 Do not exceed the maximum operating pressure. Check the pressure with the manometer supplied with your product. Overpressure: Deflate until the recommended pressure level is reached. Under pressure: re-inflate slightly. WARNING! If you leave your kayak exposed to the hot sun, check the pressure and deflate it slightly. Otherwise, the kayak may become over inflated and stretch the material.
-
Page 10: Seats Setup
7. SEAT(S) SETUP The seat is held in place by the velcro strips on the underside and by webbing straps on the sides of the backrest. Place the seat(s) into the kayak, matching the position of the Velcro strips on the floor. Attach the webbing straps from the sides of the backrest to the D-rings located inside the kayak, on the side walls/chambers. -
Page 11: Drain System
8. DRAIN SYSTEM Your kayak has been designed with a drain system located on the underside of the kayak in the rear. It consists of a fixed base and a screwable cap. It enables to easily drain the water from the kayak once your ride is over. Screw the cap closed before putting the kayak into the water. -
Page 12: Folding
10. FOLDING 1- Fold the 2 sides into the middle: 2- Roll it up from the opposite end of the valves (so remaining air can escape from the valves). Repeat the procedure if you notice remaining air in the bladders. -
Page 13: Storage
11. STORAGE When storing your inflatable kayak, keep it in a clean and dry place that is unaffected by significant temperature variations or other damaging factors. You can store it deflated and folded in its bag, or setup and slightly inflated. Keep it away from rodents: they could put holes in the kayak tubes. -
Page 14: Repairs
13. WARRANTY This item warrants (legal warranty – check with Rockside for details on the length of this warranty) to the original purchaser only, and from date of purchase, that the product is free from defects. The warranty applies only when this product is used for normal recreational purposes.
