Lusso Filtrata Installation & Operating Manual
Cold filtered & boiling water tap
Hide thumbs
Also See for Filtrata:
- Installation & operating manual (10 pages) ,
- Installation & operating manual (20 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Lusso Filtrata
Summary of Contents for Lusso Filtrata
- Page 1 Installation & Operating Manual Lusso Filtrata Cold Filtered & Boiling Water Tap...

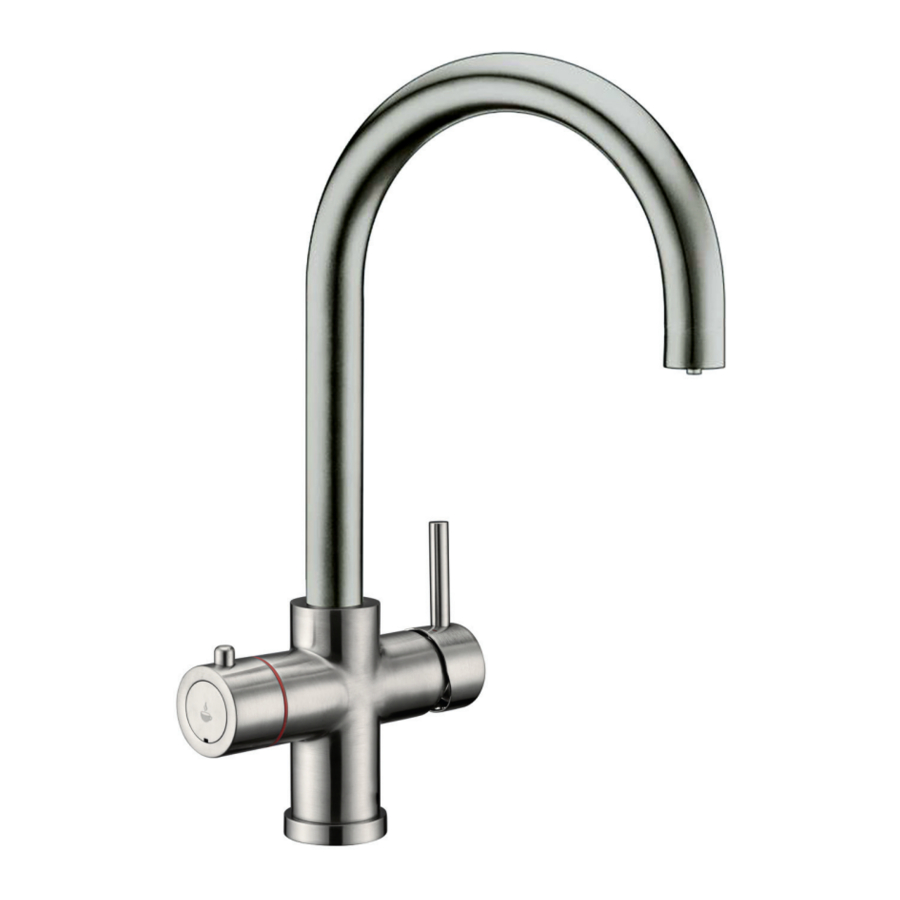

- Page 2 Please make sure the water pressure, flow and electrical supply are suitable for this product. Your Lusso Filtrata Pure Cold & Boiling water tap consists of three packages. Lusso Filtrata 4 in 1 tap (Part Ref: FIL400) Lusso Filtrata Filter Kit (Part Ref: FIL401-CAR) Lusso Filtrata Boiler (Part Ref: FIL402-2.4L)
-
Page 3: Table Of Contents
Contents Important Safety Information ....................4 Components & Tools Required ....................5 Installation ..........................6-9 Operating the Lusso Filtrata Tap ................... 10 Operating the Lusso Filtrata Boiler................11-12 Care & Maintenance ........................ 12 Troubleshooting ......................... 13-14 Technical Specification ......................15... -
Page 4: Important Safety Information
Lusso Filtrata Cold Filtered Boiling & Water Tap Safety Boiling water is potentially dangerous. It is the responsibility of the owner to take sensible precautions when operating this product. This product is not for use by persons with reduced physical, mental or sensory capabilities, unless supervised by a person responsible for their safety. -
Page 5: Components & Tools Required
Please ensure that you have a minimum of 0.2 Bar and maximum of 3.0 Bar working pressures. Ensure an electric socket is installed near the place of installation. Parts List Tools you will need 1. Lusso Filtrata Tap x1 2. Lusso Filtrata Boiler x1 3. Lusso Filtrata Filter x1 4. Base Plate x1 Pencil... -
Page 6: Installation
Lusso Filtrata Cold Filtered Boiling & Water Tap Installation The tap requires a standard 35mm diameter hole. Important: Make sure there is enough clearance between the tap levers and the splashback/wall when the handles are in operation. Feed the flexible hoses and threads... - Page 7 Lusso Filtrata Cold Filtered Boiling & Water Tap Connect the Hot water flexible pipe to the hot water mains isolation valve. Connect the G ½ Inch T-Piece the Cold water isolation valve. Now connect the cold water flexible pipe to this T-piece as per the diagram.
- Page 8 Lusso Filtrata Cold Filtered Boiling & Water Tap Push both ¼ Inch quick connectors onto the brass threads coming from the tap. Now connect the two blue PE pipes onto the connectors Now connect the blue PE pipes to either end of the ¼ Inch T Quick...
- Page 9 Lusso Filtrata Cold Filtered Boiling & Water Tap Cut a suitable length of white PE tube and connect one end to the filter and the other end into the ¼ Inch T Quick Connector Connect the flexible (Green label) pipe coming from tap to the inlet on top of the boiler.
-
Page 10: Operating The Lusso Filtrata Tap
SWITCH FILTER BOILER COLD Operating the Lusso Filtrata Tap Please see the marking on the levers. Normal Hot & Cold-Water Function Push the right-hand lever to the right then pull it towards you for hot water and push it backwards for cold water. -
Page 11: Operating The Lusso Filtrata Boiler
Lusso Filtrata Cold Filtered Boiling & Water Tap Operating the Lusso Filtrata Boiler SETTING HEATING ACTUAL Confirmation Key On/Off Key Temperature Key Temperature Indicator Hot Indicator Heating Indicator Set Temperature Indicator Heating Display To switch the instant hot water boiler on or off Touch the On/Off key once to switch the boiler on. -
Page 12: Care & Maintenance
Care & Maintenance The Lusso Filtrata tap is a high-quality product and should be treated with care. All surfaces will wear if not cleaned correctly. Please use a non-abrasive cleaner. Any abrasive cleaner such as Cif will scratch the surface. -
Page 13: Troubleshooting
& Water Tap Troubleshooting Below is a list of the possible malfunctions. If the problem cannot be solved, please contact a member of the Lusso team who will be happy to assist. Symptom Cause Remedy Boiling Water Tank is empty at first... - Page 14 Lusso Filtrata Cold Filtered Boiling & Water Tap The water temperature is set too Set the water temperature to a Water is too hot. high. lower setting - See Operation. Draw off 500ml of water to clear The Expansion Chamber isn’t and prime the system.
-
Page 15: Technical Specification
Lusso Filtrata Cold Filtered Boiling & Water Tap Technical Specification Product Type Kitchen Taps Main Construction Material Brass; ABS Mount Type Deck 1 Hot and Cold and Filter Water Lever, Lever Type 1 Automatic Rebound Boiled Water Lever. Connection Inlet G 1/2”... - Page 16 Lusso Carbury House Eagle Court Preston Farm Industrial Estate Stockton-on-Tees TS18 3TB Email: info@lussostone.com Tel: 0203 370 4057 www.lussostone.com...
