Instructions
Lunette Wrench Set
Instructions – Lunette Wrench Set

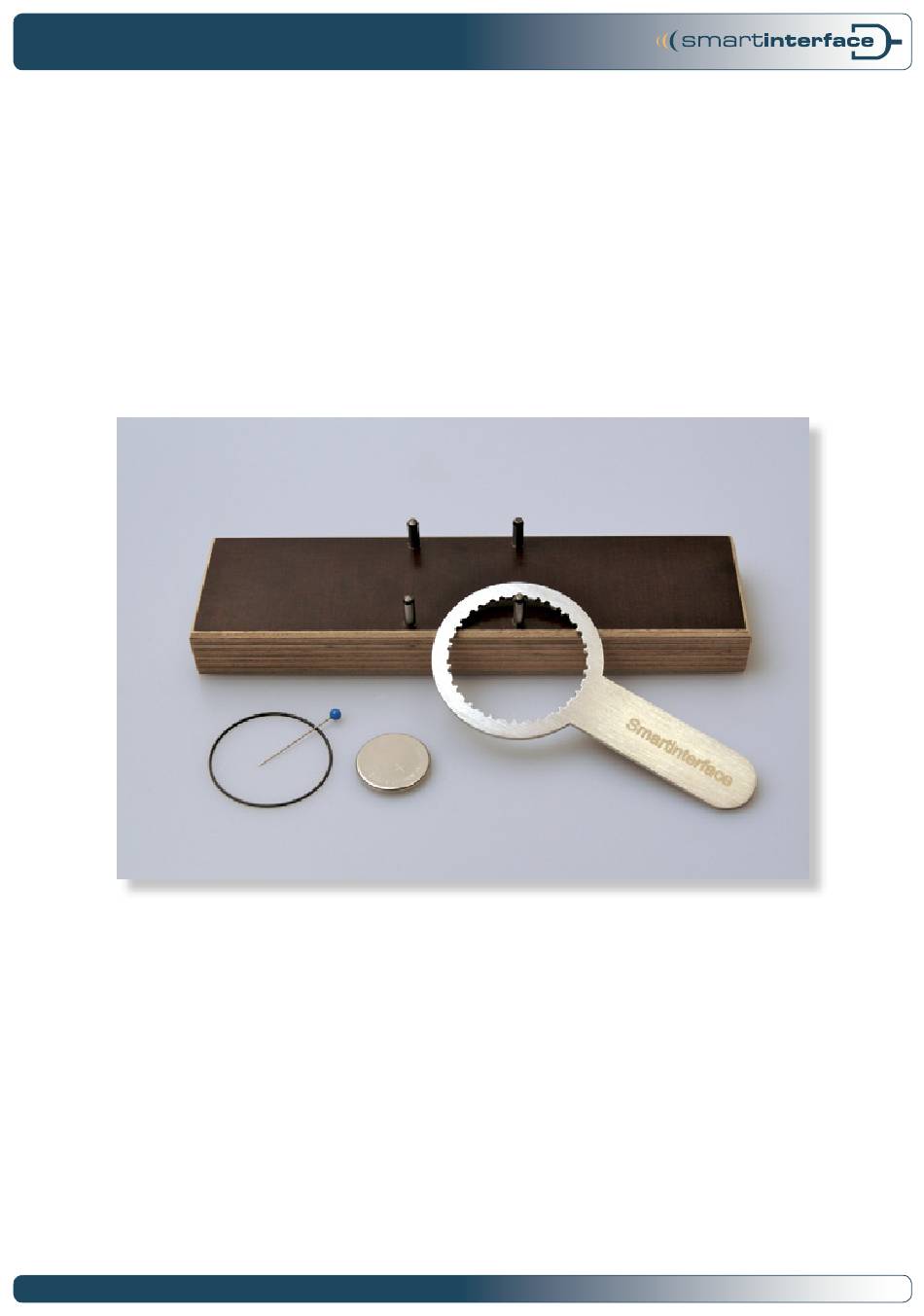

The Lunette wrench Set consists of the lunette wrench, a workbench, a pin and an O-ring, as well as a
battery.
This wrench allows you to replace the battery of a Suunto Stinger or a Spyder in a simple do-it-yourself
process. The included workbench greatly facilitates the process of replacing the battery. Place your
diving computer between the 4 metal pins as depicted in the bottom illustration (photograph).
This will ensure that the computer remains securely fastened in place, thus allowing you to unscrew the
crown with the special wrench. Replace the old battery and the O-ring with the new ones, and use the
wrench again to screw the crown back on.
Important! Make sure to work very carefully (and in a calm environment)
on a clean work surface. Use pin as assembly tool.
1
Rev.
2.0.1
www.smartinterface.de · info@smartinterface.de
Advertisement
Related Manuals for Smartinterface Lunette
Summary of Contents for Smartinterface Lunette
- Page 1 Lunette Wrench Set Instructions – Lunette Wrench Set The Lunette wrench Set consists of the lunette wrench, a workbench, a pin and an O-ring, as well as a battery. This wrench allows you to replace the battery of a Suunto Stinger or a Spyder in a simple do-it-yourself process.
- Page 2 Lunette Wrench Set Place clock on workbench (90° to workbench) Place wrench onto lunette. (cogs must grip, level) Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 3 Lunette Wrench Set 2. 1 Turn wrench to the left (lunette fits very tight) Unscrew lunette by hand. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 4 Lunette Wrench Set Place lunette aside Use pin to lift the glass on the side containing the small notch. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 5 Lunette Wrench Set 3. 1 Place glass aside Lift synthetic ring with the pin. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 6 Lunette Wrench Set 4. 1 Place synthetic ring aside. Lift O-ring with the pin. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 7 Lunette Wrench Set 5. 1 Remove and discard the O-ring (NOT intended for re-use). Carefully extract clock element (ease element out by holding on at the top and the bottom!) Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 8 Lunette Wrench Set 6. 1 Remove clock element (watch out for the wire) und place it upside down into the casing. Lift battery clamp (star) by the protruding point. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 9 Lunette Wrench Set 7. 1 Place battery clamp (star) aside. Remove battery (carefully extracting it with the pin) and properly dispose of the battery. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 10 Lunette Wrench Set 8. 1 Do not throw battery into trash; use public collection facilities for hazardous materials. Insert new battery. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 11 Lunette Wrench Set Place battery clamp back on unit (hooking in the left side first). 9. 1 Place battery clamp back on unit (pushing right side down with pin). Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 12 Lunette Wrench Set 10.0 Turn clock element back around (watch out for the wire) and insert. 10. 1 Press clock element into casing (don’t push on the display – only on the edge). Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 13 Lunette Wrench Set 10.2 Press clock element into casing (don’t push on the display – only on the edge). 11.0 Insert new O-ring exactly into the surrounding groove. (The O-ring must be free of grease!) Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 14 Lunette Wrench Set 12.0 Place synthetic ring back on unit (check the fit of the O-ring). 13.0 Put glass back on unit (with the larger surface facing downward). Clean glass prior to this to avoid fingerprints on the glass. Rev.
- Page 15 Lunette Wrench Set 14.0 Place lunette back on unit (check for level fit). 14. 1 Wind lunette forward by hand (check for level fit). Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 16 Lunette Wrench Set 14.2 Place wrench onto lunette (Mesh must grip, be level). 14.3 Tightly fasten lunette with lunette wrench. Rev. 2.0.1 www.smartinterface.de · info@smartinterface.de...
- Page 17 Place clock on workbench (90° to workbench) Place wrench onto lunette. (cogs must grip, level) 2. 1 Turn wrench to the left (lunette fits very tight) Unscrew lunette by hand. Place lunette aside Use pin to lift the glass on the side containing the small notch.
- Page 18 All images and text in this instruction manual, as well as the instruction manual itself are copyright protected, any further use must be appro- ved in writing by www.smartinterface.de. Copyright and labeling All brands and trademarks specified within the description and, where...
