Progress Lighting P2673 Assembly/Installation Instructions

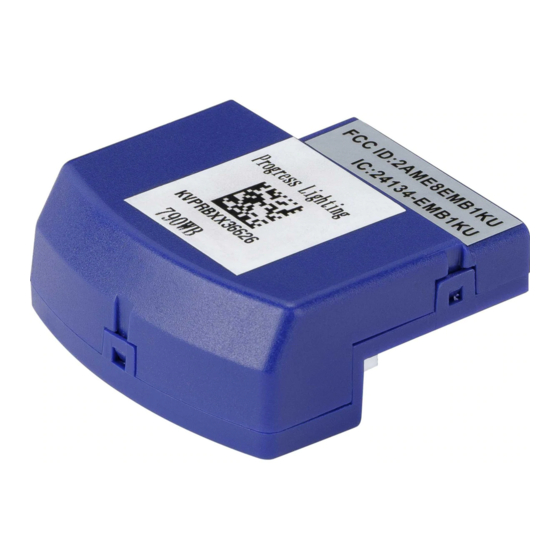

P2673 – DC Ceiling Fan WIFI Module
A) WIFI Module installation
1. Place the Receiver upside down on a flat surface, to expose the Receiver Screw.
2. Remove and keep the Receiver Screw (Figure 1).
3. Slide the Blank off of the Receiver and dispose of the Blank
4. Flip the Receiver over to expose the Receiver Female Connector.
5. Slide the WIFI Module Male Plug into the Receiver Female Connector to engage the Module (Figure 2).
6. With the WIFI Module Connected to the Receiver, turn the Receiver upside down on a flat surface for reinstallation
of the screw (Figure 3).
7. Reinstall the Receiver Screw into the WIFI Module to secure Module to the Receiver (Figure 3). The WIFI Module
Installation is Complete.
B) PAIRING THE HAND-HELD REMOTE CONTROL and WIFI Module
NOTE: The WIFI Module needs to be paired with the hand-held remote control. Within 60 seconds of turning the
Receiver AC power ON, press and hold the Transmitter FAN OFF(Stop) button for at least 5 seconds.
flicker to confirm. The WIFI Module will learn the same frequency that the transmitter has set up. After completion of
above operation, you can operate the ceiling fan and light.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
The light kit will
