Summary of Contents for SMART SMART1500

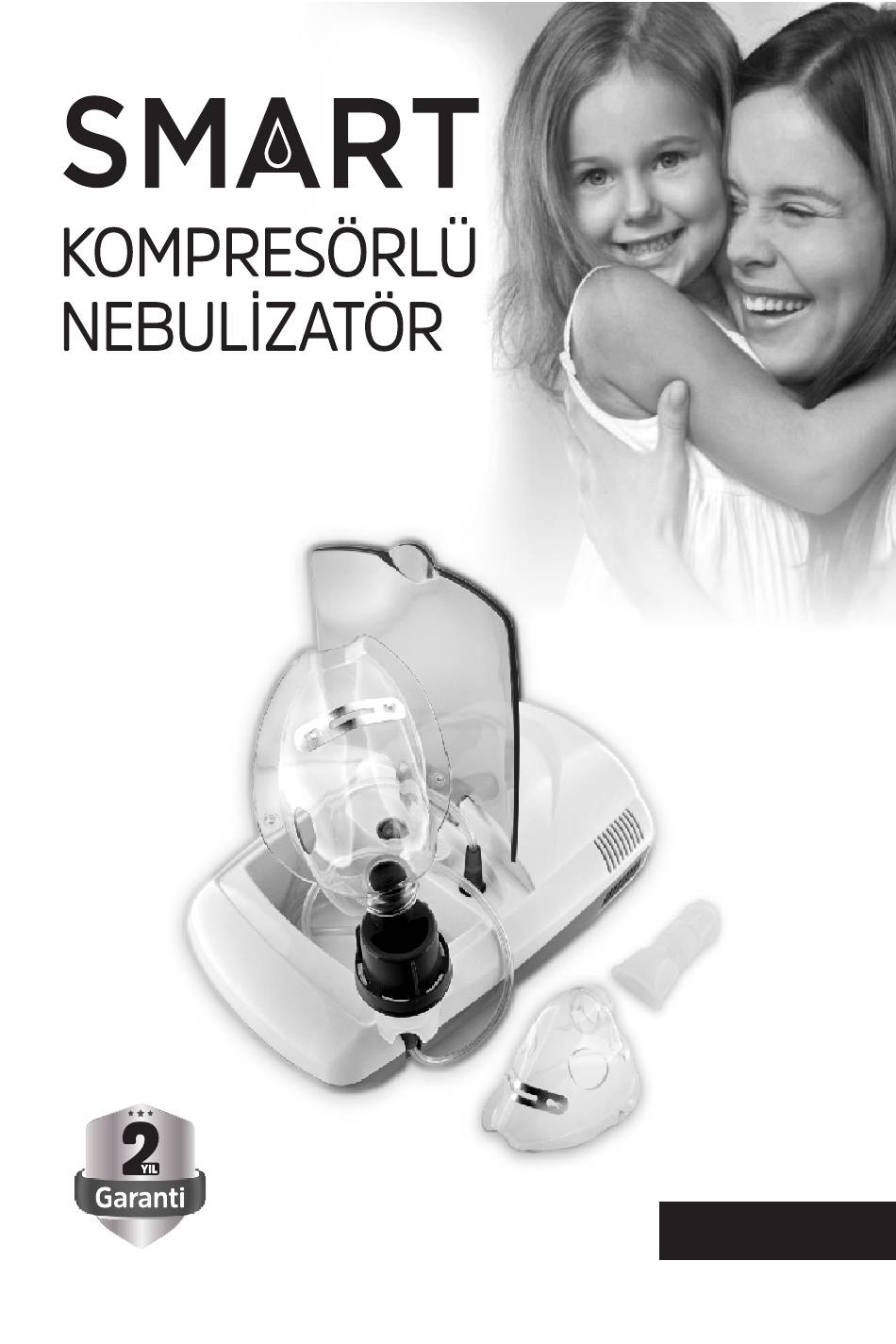

- Page 1 Model SMART1500 Türkçe...
- Page 2 Model SMART1500...
- Page 3 3. Paketin açılması için kontrol listesi 4. Kutu İçeriği...
- Page 4 Soğutma Çıkışı Açma Kapama Tuşu F ltre ve Kabı Hava Bağlantı Yer 5. İlacı Nebulizatöre Nasıl Koyacağım ?
- Page 5 6. Nebulizatörü Nasıl Çalıştıracağım?
- Page 7 Özellikler ve Standart Aksesuarlar 6 ml. İlaç Haznesi 2 Metre Hava Tüpü 2 Adet Maske Filtre ( 5 Adet) Ağızlık Gerilim / Frekans AC ^^ 230 V / 50-60 Hz Güç / Akım 170 VA / 0,7 A İlaç Kapasitesi 6 ml Partikül Boyutu 0,4 to 9 µm...
- Page 8 Fazla ilaç ile dolmuş Üretici Firma: Medisec Tıbbi Cihaz ve Ürünleri İthalat İhracat San. ve Tic. Ltd. Şti. Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye Tel: +90 342 337 88 75 Fax: +90 342 337 88 76 www.medisec.com.tr...
- Page 10 Medisec Tıbbi Cihaz Ürünleri İth. İhr. San. ve Tic. Ltd. Şti. Başpınar (Organize) OSB Mahallesi O.S.B. 2. Bölge Celal Doğan Blv. No:40 Şehitkâmil/Gaziantep/Türkiye Smart1500...
- Page 11 Model SMART1500 Engl sh...

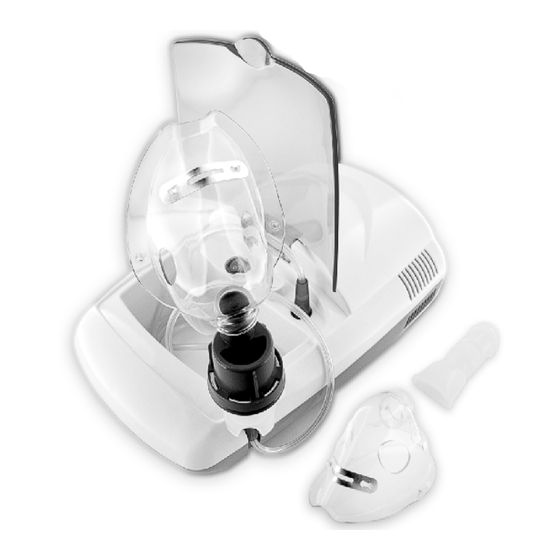

- Page 12 Compressor Nebulizer Model SMART1500 SMART COMPRESSOR NEBULIZER User's Manual Please, read the instructions carefully before operating this product 1. What is Nebulizer? Medical Air Compressor Nebulizer System is a medical device designed to administer the treatment to the lung pathways and prescribed by a physician.
- Page 13 Jet outlet Filter Inlet Outlet Compressor Figure 1: Operating Principle 3. Control list for opening the package Make sure that following materials are available before using the product: 1x Main device (Compressor) 1x Aerosol Nebulizer 1xAeresol Tube system 1x Mask (Child & adult ) 1x Mouthpiece 4.
- Page 14 Mouthpiece Mouthpiece Nebulizer Container (Medicine Container) Small Mask Big Mask Air Pipe A r Well Power Button F lter and Cover A r P pe Inlet Figure 2 5. How will I put the medicine into the Nebulizer? To put the medicine into the Nebulizer, follow the steps below: 1.
- Page 15 Mouthpiece Cover Air Pipe Hopper for Putting Medicine Figure 3 6. How will I start the Nebulizer? To start the Nebulizer, follow the steps below: 1. Plug in the air filter but do not connect the main Nebulizer. 2. Make sure that the Air Filter is connected to the air compressor. 3.
- Page 16 7. What will I do after using the Nebulizer? To ensure that the Nebulizer is started properly, follow the steps below after each use: 1. Remove the mouthpiece after removing the air pipe. 2.Open the cover and empty the container. Wash it in running water for 15 minutes or keep it in warm water.
- Page 17 10. Properties 6 ml Medicine Cup 2 Meter Air Tube 2 Pieces Masks Filter (5 Pcs.) Mouth Piece Power / Frequency AC ^^ 230 V / 50-60 Hz Current 170 VA / 0,7 A Medication Capacity 6 ml Particle Size 0,4 to 9 µm MMAD 2,79 µm...
- Page 18 11. Troubleshooting Manual Sign Probable Cause Solution Excessive Sound No filter in the unit Put a filter into the unit Main Compressor button Turn on the unit is turned off Nebulizer has not been Clean the unit cleaned after previous use Remove bending and Air pipe bent.
- Page 19 Smart Compressor Nebulizer MODEL NO: SMART1500 Lower Respiratory Tract Particle Size Adult and Child Mask 6cc Medicine Hopper MINISTRY OF INDUSTRY AND TRADE DIRECTORATE GENERAL OF CONSUMER PROTECTION AND MARKET SURVEILLANCE CERTIFICATE OF WARRANTY Issue Date and Number of This Certificate: Validity Date of the Certificate:...
-
Page 20: Warranty Conditions
WARRANTY CONDITIONS 1. Warranty period will start from delivery date of the goods and is for 2 (two) years. 2. All goods including relevant parts of the goods are within the scope of our company's warranty. 3. In the event that the goods fails within the warranty period of the goods, repair period will be added to the warranty period.
