METHVEN 01-8161 Installation Manual

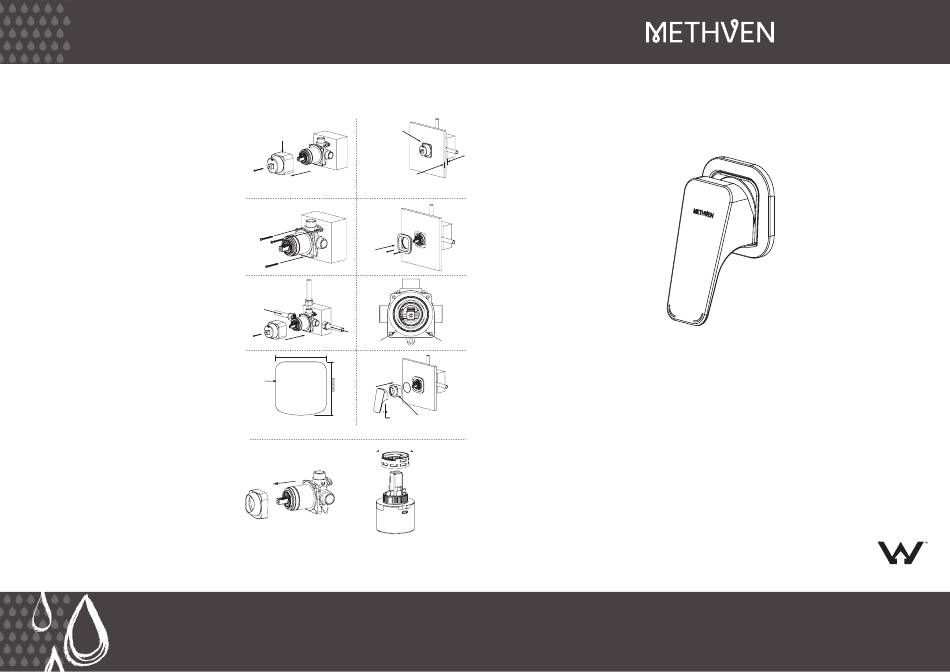

Installation
1. Remove the body assembly cover.
2. Screw the body assembly (1) on to the
mounting stud positioned to observe
installation depth as follows:
Range of Install Depth, ID = 54-75 mm
Note: Two sizes of half dome (5 & 6) are
supplied.
Long dome (6) for 54-65 mm
Short dome (5) for 65-75mm
3. Connect body assembly (1) into system
and replace body assembly cover.
4. Cut hole in lining as pictured.
5. Wall lining e.g. tiles should be finished as
close as possible to the plastic template.
Remove plastic template prior to next
step.
6. Lubricate the o-ring in the faceplate (2).
Place faceplate (2) over mixer body and
slide firmly over the mixer body until flat
on the wall surface. It is recommended
that a bead of silicone sealant is applied
to the back of the faceplate before fixing
to the finished wall surface.
7. Screw the faceplate (2) into the fixing ring
using screws (3).
8. Place o-ring (4) and appropriate half
dome (5 or 6) over the body assembly (1).
Fit handle (7) and fasten grub screw with
2.5mm hex key (8).
Ceramic Cartridge
Adjustment
Do not remove the ceramic cartridge
from the body while carrying out the
following adjustments.
Note: the cartridge is factory
set for maximum temperature.
MAY 2016
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Use Plastic Template
1. 5.
as hole shape guide
as seen in step 4.
Plastic Template
ID
2.
6.
3. 7.
Hot
Cold
Faceplate screw hole
57mm
4. 8.
R10mm
Use appropriate Half Dome
Ensure top surface is horizontal for installation depth.
+
-
Mix
temperature
Remove half-dome (if attached)
limiting
adjustment
MA018161A ISSUE B

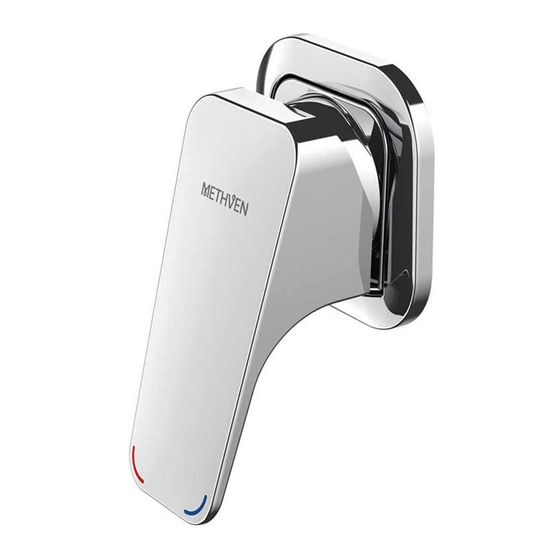

Waipori Shower Mixer
Faceplate screw hole
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
01-8161
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
